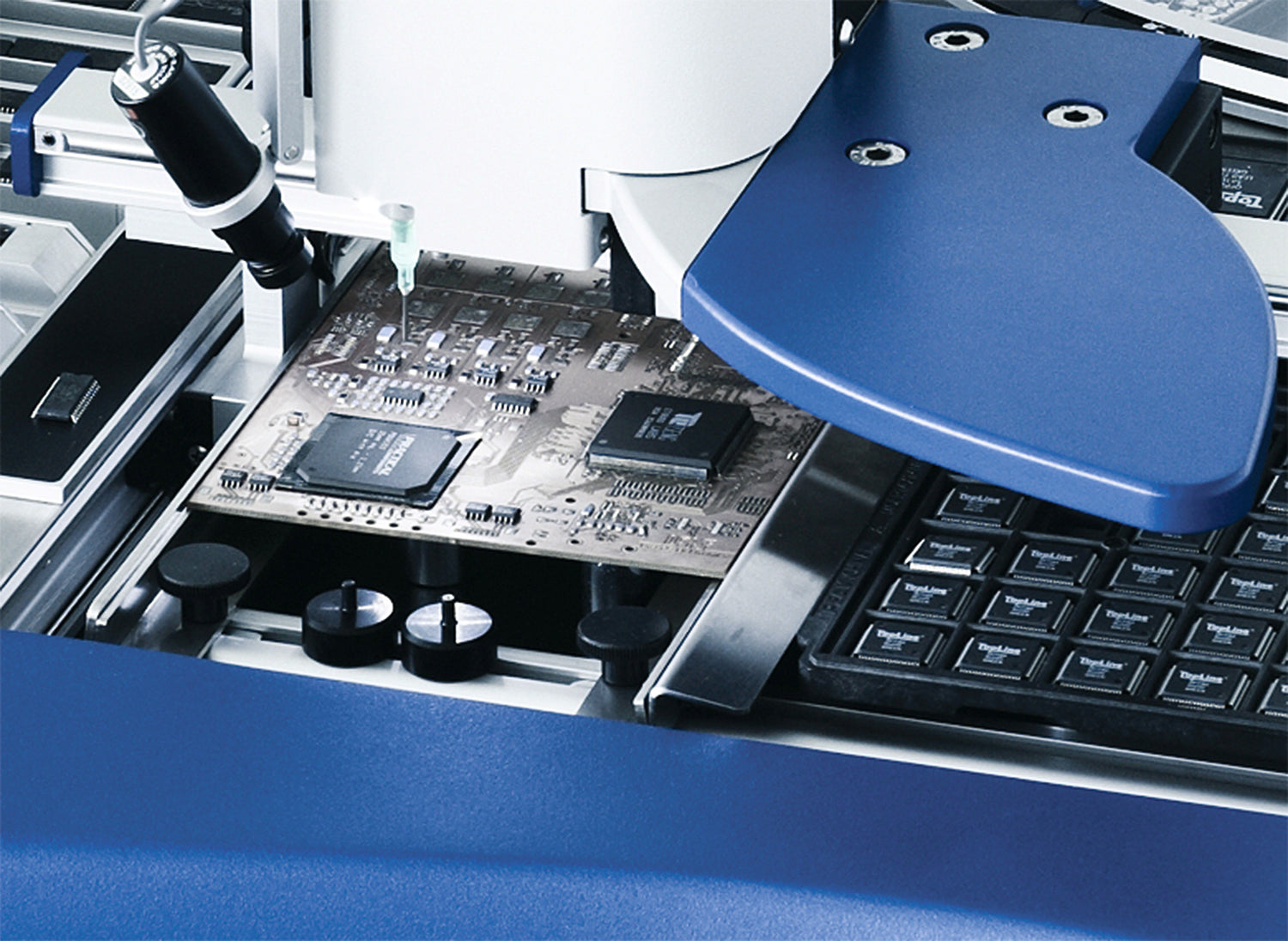

LPKF ProtoPlace S close up view
  • Load image into Gallery viewer, LPKF ProtoPlace S actual unit - front view
  • Load image into Gallery viewer, LPKF ProtoPlace S close up view

LPKF ProtoPlace S - PCB Prototyping Machine

Regular price
$0.00
Sale price
$0.00
Regular price
Contact our Sales Team
Unit price
per
Tax included. Shipping calculated at checkout.

LPKF ProtoPlace S - Precision Placement of Fine Pitch Components

LPKF ProtoPlace S - Features and Benefits


Easy SMT Assembly

LPKF ProtoPlace S manual pick & place system picks up SMD components via a vacuum from the component tray or from a feeder.
Following initial manual positioning fine adjustment is performed using micrometer screw gauges. The component is then safely and accurately lowered by a pneumatic mechanism. In addition to assembly, LPKF ProtoPlace S also works as a dispenser for solder paste, glue, and auxiliary materials.
An LCD display and menu-based navigation make operation easy. The optional camera system with color monitor supports the user in precise positioning of high-pin-count components.

Upgrade LPKF ProtoPlace S with Additional Accessories

LPKF ProtoPlace S can be upgraded with a vacuum table, a component turntable with up to 90 component trays, and a feeder carrier with stick and roller feeders. The microcamera and an LCD monitor are a great help in fine-pitch component assembly, and a compressor and an air pressure controller provide for the necessary pressure for the dispensing function.

LPKF ProtoPlace S - Specifications summary

  • Precise mounting of fine-pitch components
  • Optional feeders and component turntable
  • Pneumatic component placement
  • Dispensing function
  • Microprocessor controlled
  • Optional camera system and vacuum table

Please contact us here for a discussion.

We would be glad to hear more about your project!

Download LPKF ProtoPlace S Brochure
