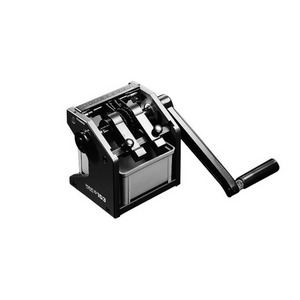

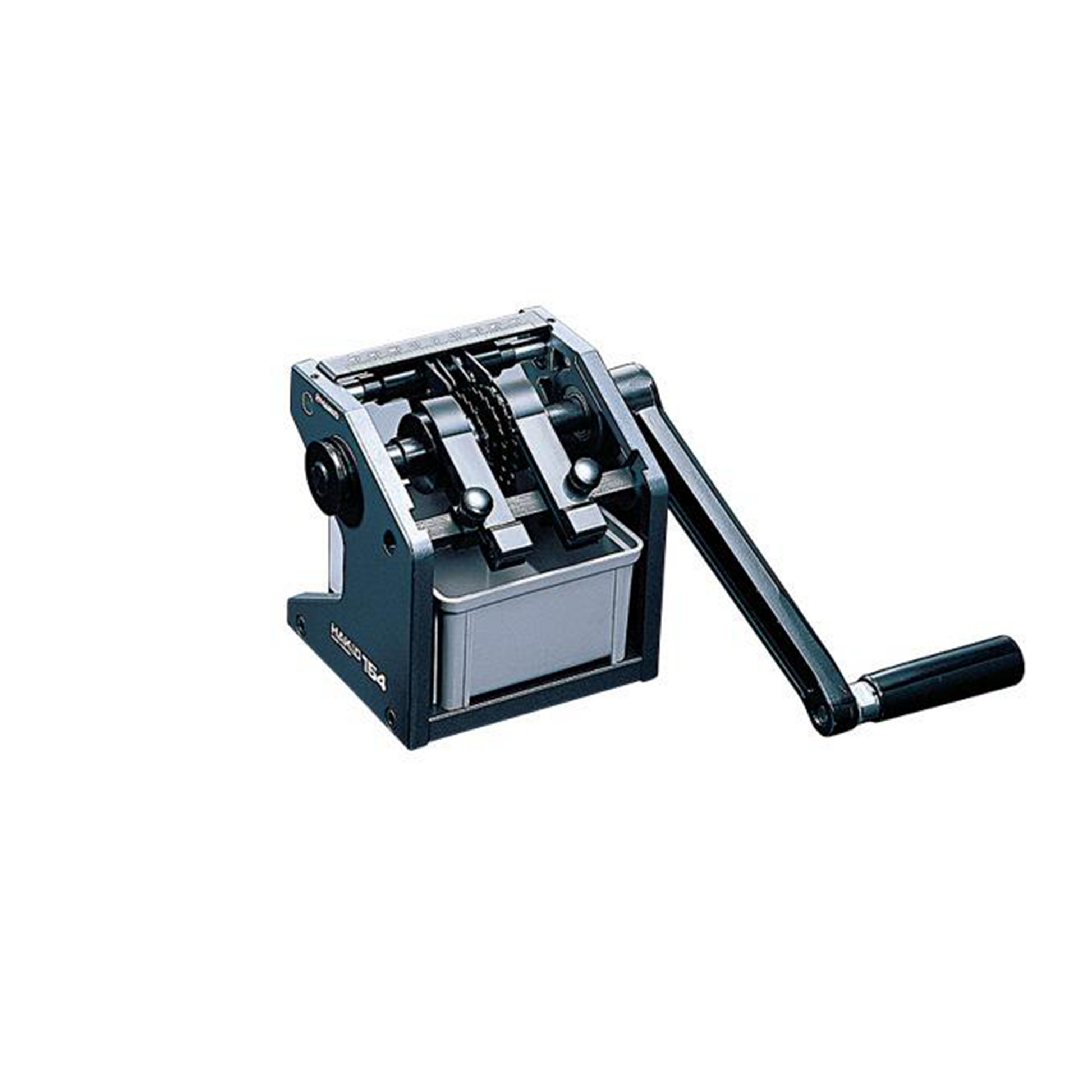

- Lead cutter and former for axial components
- Lead cutting operation for taped components can be continuously performed using the same size settings once they are made
- Possible to use together with 152B (motor drive)
Features
- Cutting and forming for tape-type axial components and annealed copper lead wire
- Easy to use - simply set the taped components in place and turn the handle.
- Ideal for processing tape-type components. Improved, longer-life cutting blade for a clean, smooth cut.
- Sealed bearings for longer service life and greater durability and efficiency.
- Can be used for forming and cutting, forming only, or cutting only.
- Components with lead frame (multangular lead) are unsuitable.
- Can be combined with the Hakko 152B.
| 153 | 154 |
Cutting and forming
|
Cutting and forming
|
Forming
|
Forming
|
Cutting
|
Cutting
|
Specifications
|
Model No. |
153 | 154 |
| Forming size | 5.6mm pitch |
5mm pitch |
| Max.diameter of lead wire | Φ0.8mm (MAX.) | Φ0.5mm (MAX.) |
| Lead wire |
For annealed copper lead wire only |
|
| Outer width of tape |
85mm (MAX.) |
|
| Taping pitch | 5mm | |
| Dimensions | 125(W) × 130(H) × 110(D)mm | |
| Weight | 2kg | |
* Square lead wire is not adapted.
* Weight (w/ handle, clamp)
Accessories
Replacement Parts
| Name | Specifications |
|---|---|
| A1098 | Bending wheel guide (P) for 153 |
| A1099 | Bending wheel guide (H) for 153 |
| A1100 | Bending wheel (P) for 153 |
| A1101 | Bending wheel (H) for 153 |
| A1102 | Bending wheel guide (P) for 154 |
| A1103 | Bending wheel guide (H) for 154 |
| A1104 | Bending wheel (P) for 154 |
| A1105 | Bending wheel (H) for 154 |
| A1106 | Cutting blade for 153/154 |
| A1094 | Cutting wheel guide (P) for 153/154 |
| A1095 | Cutting wheel guide (H) for 153/154 |
| A1096 | Cutting wheel (P) for 153/154 |
| A1097 | Cutting wheel (H) for 153/154 |
| B1387 | Main shaft for 153/154/155 |
- We recommend to replace the P side and H side at the same time when you need to change wheel guide or wheel.
- If the parts cannot be removed from the shaft, a burr may have been formed on the shaft due to overtightening the screws. In this kind of situation, please send for repairs.
