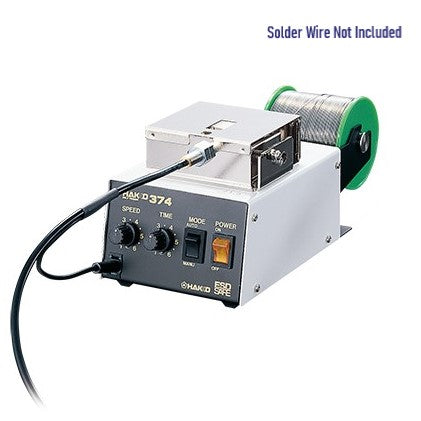

The 374 Solder Feed System provides control of the solder amount by feed time and feed speed, giving you one-handed soldering with no loss of efficiency.
NEW Introducing the new tube unit and guide pipe assembly for the best productivity.
Features
V-Groove to minimize solder and flux splash
When solder is cut with a V-groove, it enables the release of gas pressure generated by the flux, suppressing flux splash. However, a V-groove will expose the flux to air, reducing the storage life of the solder. With the 374, you can groove only the solder you require to lengthen the solder life span.
AUTO or MANUAL mode
AUTO mode: Feeds solder in the specified time and at the specified speed once the switch is pressed.
MANUAL mode: Feeds solder at the specified speed while the switch is pressed and held.
Control of solder amount
Amount of solder feed can be controlled by the combination of feed "time" and feed "speed". (Only in AUTO mode)
'Solder-return' mechanism
The 374 is equipped with the function to draw back solder by the specified length after feeding. This reduces the thermal impact of the high-temperature tip on solder and flux. Click to read more about 'Solder-Return'.

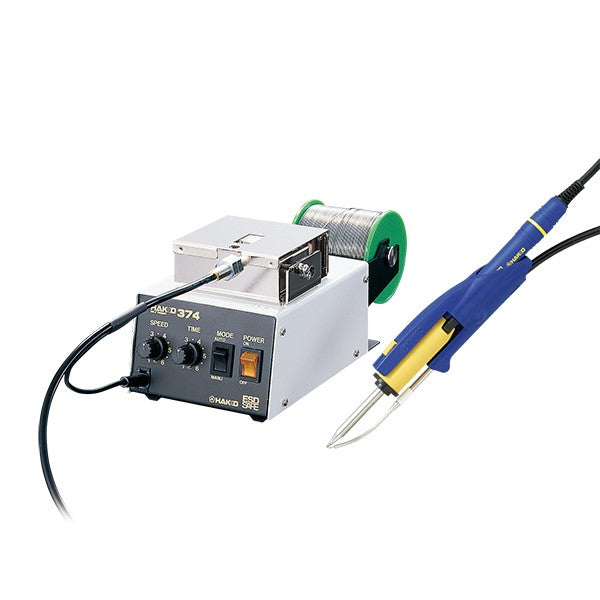

One-Handed Soldering
Unlike traditional manual soldering, where one hand holds the soldering iron and the other feeds the solder wire, the tube unit and guide pipe assembly allows for both functions to be done with just one hand. Click to learn about our new tube unit and guide pipe assembly!
Required optional parts
- Solder Diameter Adjustment Ring
- Tube Unit
- Guide Pipe Assembly
- Iron receptacle

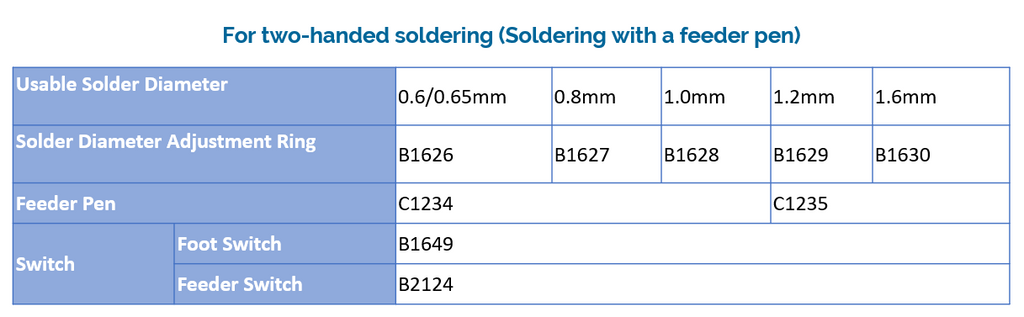

For two-handed soldering (Soldering with a feeder pen)
The auto-solder feed system with the feeder pen enables the control of amount of solder to feed. It is useful for any type of soldering iron.
Required optional parts
- Solder Diameter Adjustment Ring
- Feeder Pen
- Switch
Specifications
- Power consumption: 6W
- Solder feed time: 0 to 7second (Auto Mode)
- Solder feed speed: 4.5 to 26mm/sec.
- Solder feed quantity: 0 to 182mm
- Solder return quantity: 0 to 5mm (Fixed speed)
- Modes: Auto/Manual
- Usable solder diameter: Φ0.6, Φ0.65, Φ0.8, Φ1.0, Φ1.2mm
- Usable solder quantity: 1kg or less
- Dimensions: 107(W)×110(H)×215(D)mm
- Weight: 1.5kg (with cord)
Accessories
Replacement Parts
| Part Number | Product Name |
| B1699 | 0.6mm Nozzle |
| B1700 | 0.8mm Nozzle |
| B1701 | 1.0mm Nozzle |
| B1702 | 1.2mm Nozzle |
| B1703 | 1.6mm Nozzle |
Optional Parts
| Part Number | Product Name |
| C5056 | Tube Unit, Bottom-feed type. 0.6-1.0mm with hexagon wrench |
| B5268 | Guide pipe assembly/ bottom-feed type, for C5056.0.6mm, 0.65mm |
| B5269 | Guide pipe assembly/ bottom-feed type, for C5056. 0.8mm |
| B5270 | Guide pipe assembly/ bottom-feed type, for C5056, 1.0mm |
| C5057 | Tube Unit, Bottom-feed type. 1.2mm with hexagon wrench |
| B5271 | Guide pipe assembly/ bottom-feed type, for C5057. 1.2mm |
| C5058 | Tube Unit, Bottom-feed type. 0.6-1.0mm with hexagon wrench |
| B5272 | Guide pipe assembly/ bottom-feed type, for C5058. 0.6mm, 0.65mm |
| B5273 | Guide pipe assembly/ bottom-feed type, for C5058, 0.8mm |
| B5274 | Guide pipe assembly/ bottom-feed type, for C5058.1.0mm |
| C5059 | Tube Unit, Bottom-feed type. 1.2mm with hexagon wrench |
| B5275 | Guide pipe assembly/ bottom-feed type, for C5059, 1.2mm |
| B5265, B5266, B5267 | Iron receptacle for bottom-feed type (with screws) |
| B1626 | Solder diameter adjustment ring. 0.6mm, 0.65mm |
| B1627 | Solder diameter adjustment ring. 0.8mm |
| B1628 | Solder diameter adjustment ring. 1.0mm |
| B1629 | Solder diameter adjustment ring. 1.2mm |
| B1630 | Solder diameter adjustment ring. 1.6mm |
| B3481, B3726, B5072, B3566, B1694, B2146, B2151 |
Guide pipe assembly. 373 : 0.6mm, 0.65mm / 374 : 0.6mm |
| B3482, B3727, B5073, B3567, B1695, B2147, B2152 |
Guide pipe assembly. 0.8mm |
| B3483, B3728, B5074, B3568, B1696, B2148, B2153 |
Guide pipe assembly. 1.0mm |
| B3484, B3729, B5075, B3569, B1697, B2149, B2154, |
Guide pipe assembly. 1.2mm |
| B3570, B1698, B2150, B2155 |
Guide pipe assembly. 1.6mm |
| B3477 | Tube unit M with switch, 0.6-1.0mm. Requires spacer B5183 for FX-1001 (sold separately). |
| B3563 | Tube unit R, with switch, 0.6-1.0mm |
| B3564 | Tube unit S, with switch, 373 : 1.2-1.6mm / 374 : 1.2mm |
| B3478 | Tube unit N, with switch, 1.2mm. Requires spacer B5183 for FX-1001 (sold separately). |
| B1957 | Tube unit E, with switch, 0.6-1.0mm |
| B1958 | Tube unit F, with switch, 373 : 1.2-1.6mm / 374 : 1.2mm |
| B2143 | Tube unit J, with switch, 0.6-1.0mm |
| B2144 | Tube unit K, with switch, 373 : 1.2-1.6mm / 374 : 1.2mm |
| B5183 | Spacer for FX-1001 tube unit |
| C1234 | Feeder Pen A, 0.6-1.0mm |
| C1235 | Feeder Pen B, 1.2-1.6mm |
| B2124 | Feeder Switch |
| FT-720 | Tip Cleaner |
| B1649 | Foot Switch |
Discontinued Parts
| Product Name | Part Number |
| Guide Pipe Assembly | B1674, B1675, B1676, B1677, B1678, B1679, B1680, B1681, B1682, B1683, B1684, B1685, B1686, B1687, B1688, B1689, B1690, B1691, B1692, B1693 |
| Tube Unit | B1631, B1672, B1632, B1673 |
| Spring Iron Holder | B1648 |
| Iron Holder with Cleaning Sponge | 631-07 |
