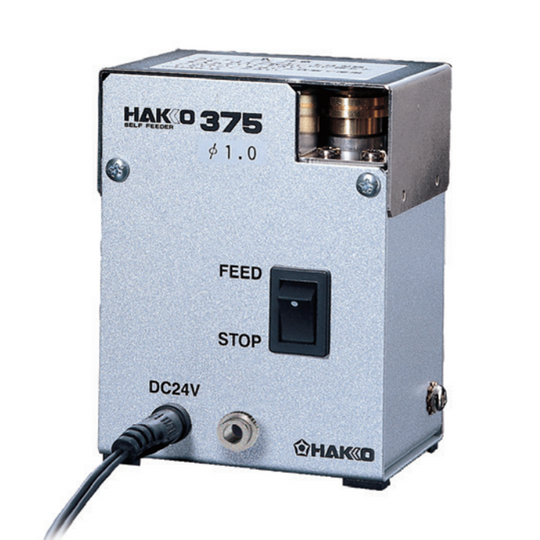

V-Groove Maker (375-1 to 375-4)
Couldn't load pickup availability
[This is a pre-order product and will take 6-8 weeks to arrive. Kindly view pre-order FAQs before purchasing.]
- Compact, space-saving automatic solder feeder.
- Reduces the splash of solder and flux by cutting a v-groove onto the solder surface.
- Solder feed amount can be controlled by turning the switch on or off.
- Please note that 375-01, 375-02, 375-03 and 375-04 differ in specifications of usable solder diameter.
- Please refer to the User Manual below for more detailed specifications.
Name | Specifications |
375-1 | 0.5mm |
375-2 | 0.6mm |
375-3 | 0.8mm |
375-4 | 1mm |
Features
Optimal for minimizing solder and flux splash
Solder feeding equipment with V-grooving function for superior cost performance
Minimize solder and flux splash
- As shown below, when solder is cut with a V-groove it enables the release of gas pressure generated by the flux, thereby suppressing splash. However, because the V-groove exposes the flux to outside air the solder cannot be stored for a long period of time.
- When using solder with the HAKKO 375, you can groove the solder that you require.
Specifications
Model No. 375
- Rating : DC 24 V 75 mA
- Solder feed speed: 27mm/sec.
- Usable solder diameter: Φ0.3, Φ0.5, Φ0.6, Φ0.8, Φ1.0mm
- Dimensions: 78(W) × 98(H) × 56(D)mm
- Weight: 0.59kg
AC Adapter
- Output voltage: DC 24 V
Packing List
- Unit
- AC adapter
- Instruction manual
Accessories
Part Number | Specifications |
B1649 |
Foot Switch Connection cord length: Approximately 135 cm When using the foot switch, switching is not possible on the main device. |
B2763 |
Hand Switch Connection cord length: Approximately 100 cm When using the hand switch, switching is not possible on the main device. |
