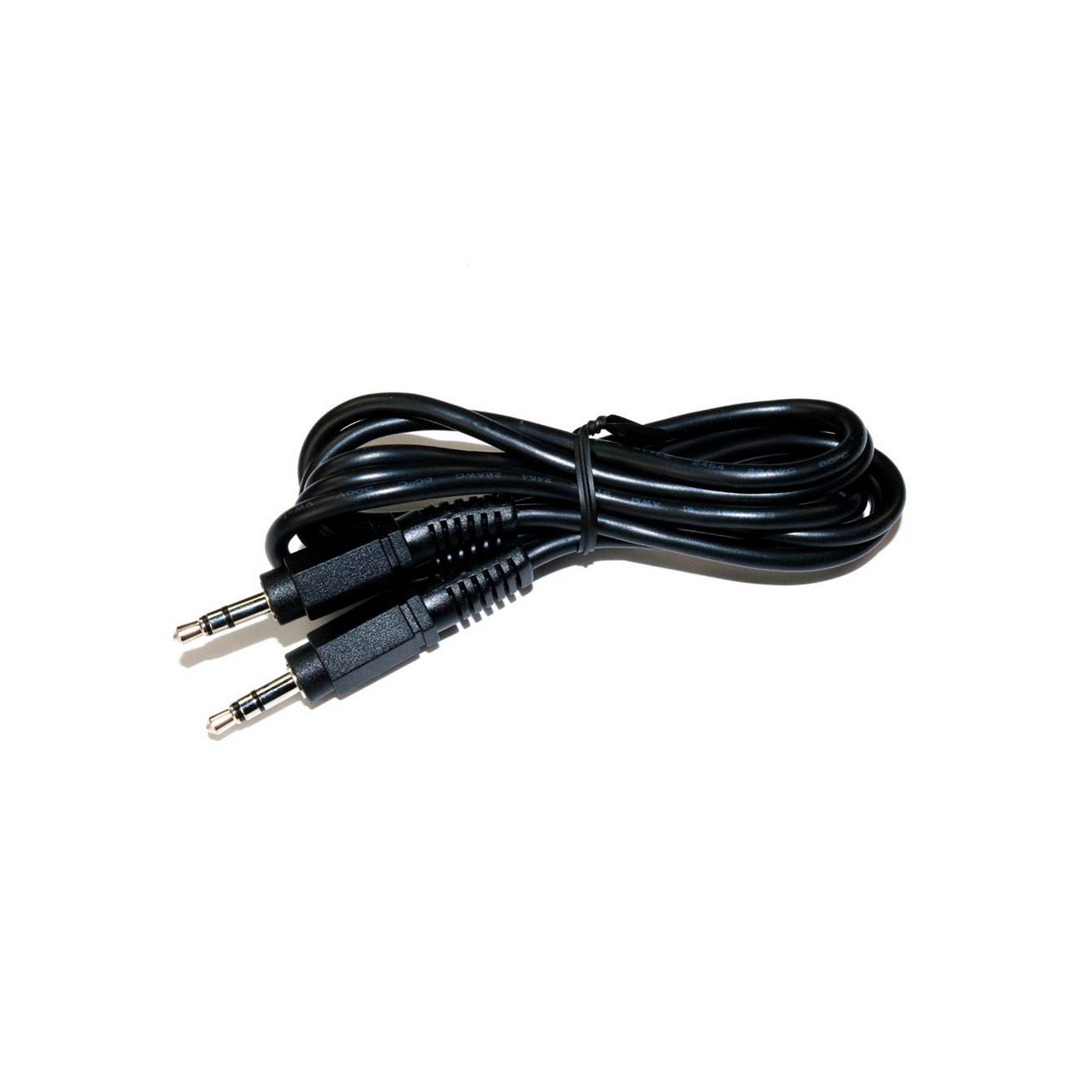

The FH-200 iron holders has sleep/power-save function. Use this connecting cable to connect the iron holder to the jack at the rear of the station to activate the sleep function.
When the soldering iron has been in the iron holder for 6 minutes, the sleep function is triggered and the tip temperature is lowered, while the lamp lights orange.
To resume soldering, simply remove the soldering iron from the iron holder and wait 10 seconds for the heat to resume.
Applicable Iron Holder |
FH-200 (with power save function) |
Applicable Models |
FM-2022 |
FM-2023 |
FM-2024 |
FM-2026 |
FM-2027 |
FM-2028 |
FM-2029 |
FM-203 |
FM-2030 |
FM-2031 |
FM-2032 |
FM-204 |
FM-206 |
FX-801 (Discontinued) |
FX-838 |
FX-950 |
FX-951 |
FX-952 |
FT-801 (Discontinued) |
