C5028 Grip Fixture M
Availability: Pre-Order | Lead Time: 8-12 Weeks
Couldn't load pickup availability

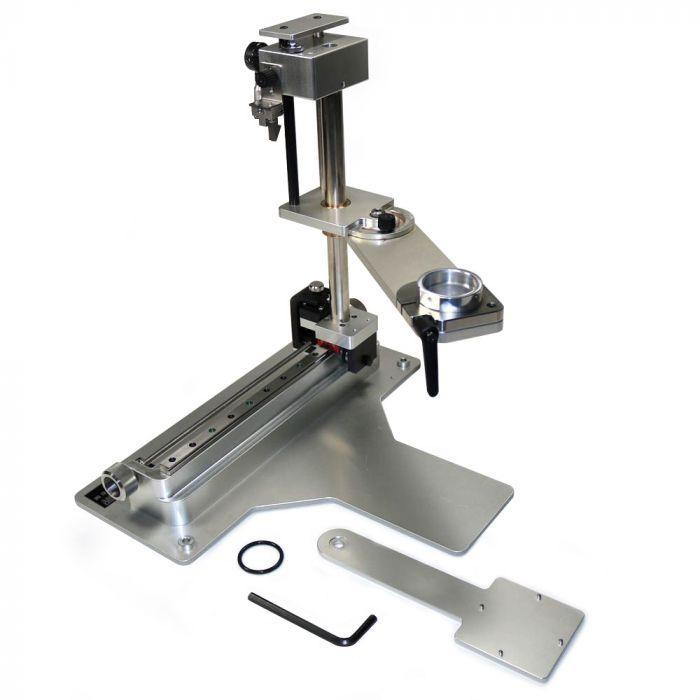

C5028 Grip Fixture M (with hexagon wrench, o-ring, tray)
Product Info
The Hakko C5028 Handpiece Fixture is designed for use with the Hakko FR-810, FR-810B hot air rework stations and the Hakko FR-811 SMD rework system. The fixture provides a small but stable footprint for users with limited space and is ideal for use with other Hakko preheaters.
The C5028 includes an attachment point for the Hakko C5027 board holder, a one-touch slide adjustment as well as a knob for fine adjustment in the y-axis.
The swing arm and adjustable collar of the fixture allows easy positioning of the handpiece directly above the component. The rotation of the handpiece also allows adjustment of the theta angle of the nozzle in relation to the component.
A hand-held component tray is also included.
Packing List
| Packing List | Part No. |
| Grip Fixture M | C5028 |
| Hex Wrench (6mm) | - |
| Component Tray | B5139 |
| O-ring | - |
| User Manual | - |
Specifications
- Reach: 15.5 in. (131 mm) Max
- Z-axis Stroke: 4.7 in. (120 mm)
- Arm Position: Adjustable through 180°
- Dimensions: 340 x 480 x 370 mm (W x H x D)
- Weight: 5.72 kg
- ESD Safe: Yes
