  • Hakko FA430 Soldering Welding Fume Extractor Smoke Absorber with replaceable filter
1 of 1

Hakko Products

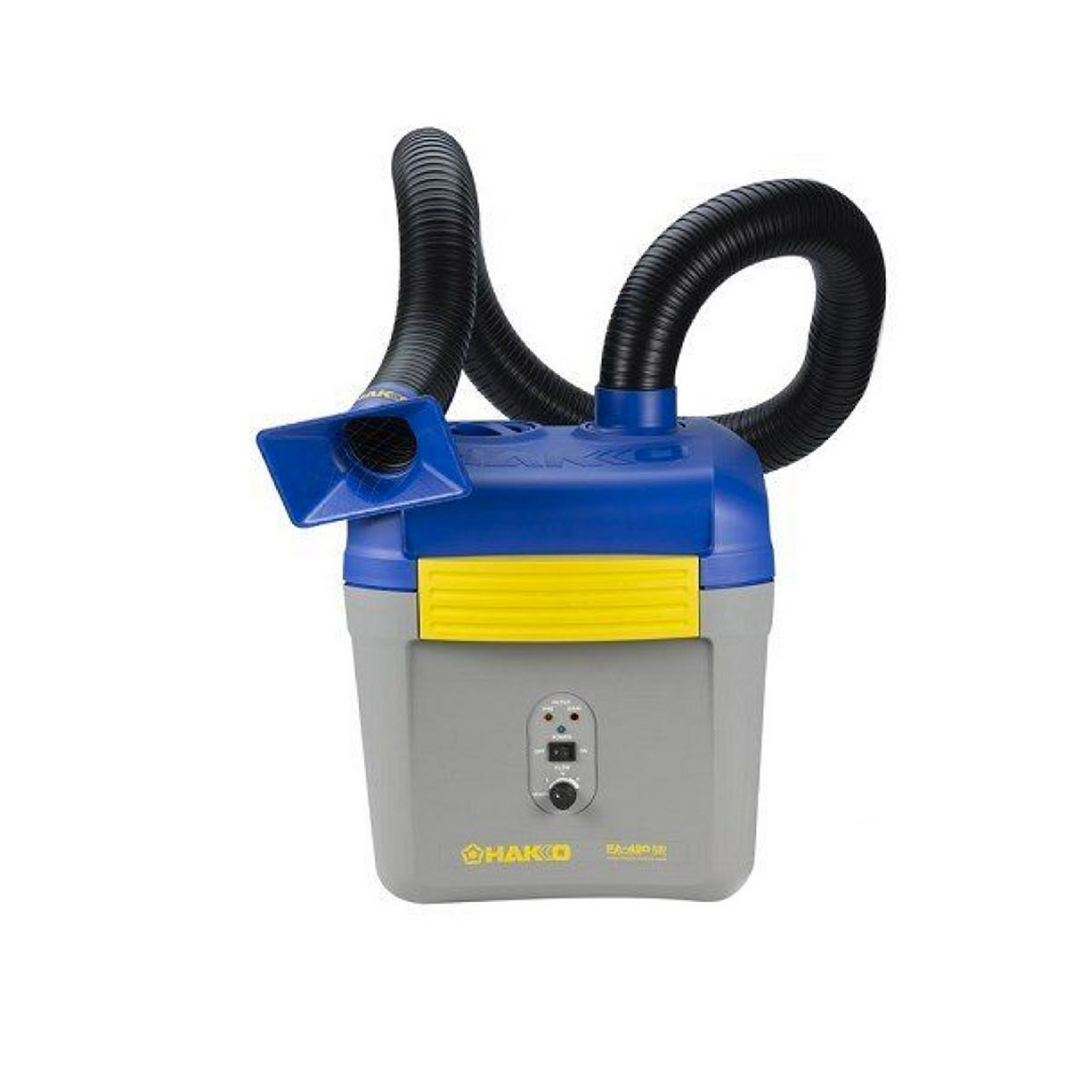

FA-430 Fume Extraction System 230V

Regular price $1,600.00 SGD
Regular price $1,600.00 SGD Sale price $1,600.00 SGD
Sale Make an Enquiry
Shipping calculated at checkout.

Availability: Pre-Order | Lead Time: 8-12 Weeks

  • HEPA filter (High Efficiency Particulate Air Filter)
  • Recommended for quiet laboratory and office
  • Filters out 97% of particles greater than 0.3μm
Features

Excellent cost performance filters
FA-430 provides excellent filtering efficiency, 99.97% of particles greater than 0.3μm, by HEPA filter.

Filter replacement notification
Filter replacement notification function ensures excellent trapping efficiency can be maintained at all times. No matter how sophisticated a fume extractor is, if the filter is not replaced at the right time, it will not be able to give maximum performance. The HAKKO FA-430 detects the number of fan rotation and notifies the operator of the appropriate time to replace the filter, guaranteeing a comfortable working environment.

  • When the pre-filter is 80% clogged or has been used for 200 hours, the orange indicator flashes on and off.
  • When the 10th pre-filter needs replacing, the orange and red lamps flash on and off.

Quiet operation and powerful suction
Exhaust noise has been reduced without sacrificing suction performance by the addition of a silencer unit to the exhaust outlet to ensure smooth air outflow. A high-performance motor with 1,500 Pa of static pressure provides powerful suction and quiet operation.

Adjustable to suit working environment
Catch harmful smoke with freestanding ducts and adjustable air volume
Is your smoke absorber affected by air conditioning? Are you fed up with having to re-adjust ducts after every line change? The HAKKO FA-431 fume extractor is the answer to your problems.

Airflow adjustment
Three airflow modes are available: High, Medium, and Low. Significantly improve your working environment by using an airflow volume that suits the worksite and the job.

  • Low mode: Not easily affected by the surrounding environment. For use in small, quiet locations. (For when low-noise operation is a priority.)
  • Medium mode: For normal use.
  • High mode: For use in locations that are significantly affected by the surrounding environment. (For when suction performance is a priority.)
Noise Level dB (A) Air Volume m3/min
Low 44 2.8
Medium 50 3.7
High 53 4.7


Freestanding ducts
Ducts can be bent or lengthened as desired and maintain their shape after adjustment, letting you place them exactly where suction is needed. Say goodbye forever to ducts that are long, heavy, and hard-to-handle. The FA-430 Duct is 1.2m in length and weighs 0.6kg

Packing List
Main unit FA430-08
Power cord -
Cap B3619
Main filter A1573
Pre-filter L (x10) A1572
Instruction Manual -
Specifications

Note: Duct set (C1571/C1572) is not included in FA-430 unit. Please purchase desired duct set(s) when you order FA-430 unit.

  • Duct Set C1571 (Rectangle): Duct, Adapter, Rectangular nozzle, Net, Instruction manual. Rectangular nozzle is best for absorbing smoke from the side.
  • Duct Set C1572 (Round): Duct, Adapter, Round nozzle, Net, Instruction manual. Round nozzle is best for absorbing smoke from above.

Specifications:

  • Power consumption: 110W
  • Noise level: 50dB (MEDIUM mode)
  • Maximum suction capacity with single duct: MAX. 4.1m3/min. (145cfm)
  • Maximum suction capacity with two ducts : MAX. 4.7m3/min. (167cfm)
  • Filtering efficiency: 99.97% 0.3µm (LOW, MEDIUM mode)
  • Filtering efficiency: 99.96% 0.3µm (HIGH mode)
  • Static pressure: 1,500Pa
  • Duct set (sold separately) Length of duct : Φ55mm×1.2m (ESD SAFE)
  • Dimensions: 330(W)×366(H)×343(D)mm
  • Weight: 7.5kg
  • * Filtering efficiency is an initial value of collection efficiency based on counting method for airborne dust collected by a single plate of filter (unfolded).
  • * Noise level is measured at a distance of 1 m from the face of unit in an anechoic room.
  • * Net in duct sets are not protected against electrostatic discharge.
Accessories
Part Number Product Name
A1573 Main Filter
A1572 Pre-Filter (10 pcs)
B3619 Cap
C1571 Rectangular Nozzle Duct Set
C1572 Round Nozzle Duct Set
B3642 Φ55mm×1.2m Duct
B3620 Adapter
B3621 Adapter (3 inch)
B3622 Rectangular Nozzle (for C1571)
B3623 Round Nozzle (for C1572)
B3625 Net (5 pcs): For preventing contaminants from being absorbed. (Mesh dimensions: Approx. 10 mm × 10 mm)
B2410 Φ75mm×2m Duct
B2416 Duct Band (2 pcs)
B2418 Bench Top Plenum/Clear

Parts Required For Independent Ducts

Part Number Product Name
B3642 Φ55mm×1.2m Duct
B3620 Adapter (for attaching duct to main unit)
B3622 Rectangular Nozzle
B3623 Round Nozzle
B3625 Net (5 pcs): For preventing contaminants from being absorbed. (Mesh dimensions: Approx. 10 mm × 10 mm)

Additional Required Parts for Bench Top Hood

Part Number Product Name
B2418 Bench Top Hood. For stopping smoke from escaping upwards without being affected by air conditioning.
*Requires Φ75 duct (B2410), duct band (B2416), and 3-inch adapter (B3621).
B2410 Φ75mm×2m Duct, Not freestanding.
B2416 Duct Band
B3621 Adapter for 3 inch duct / Φ75 duct
