[This is a pre-order product and will take 6-8 weeks to arrive. Kindly view pre-order FAQs before purchasing.]
For the handpiece only, click here.
Click here to shop compatible soldering tips for FM-2032
|Packing List||Part No.|
This conversion kit includes the sleek micro soldering iron, iron holder with sponge, heat resistant pad, and "sleep" connecting cable. For use with the Hakko FX-951, FM-203, and FM-206 soldering systems.

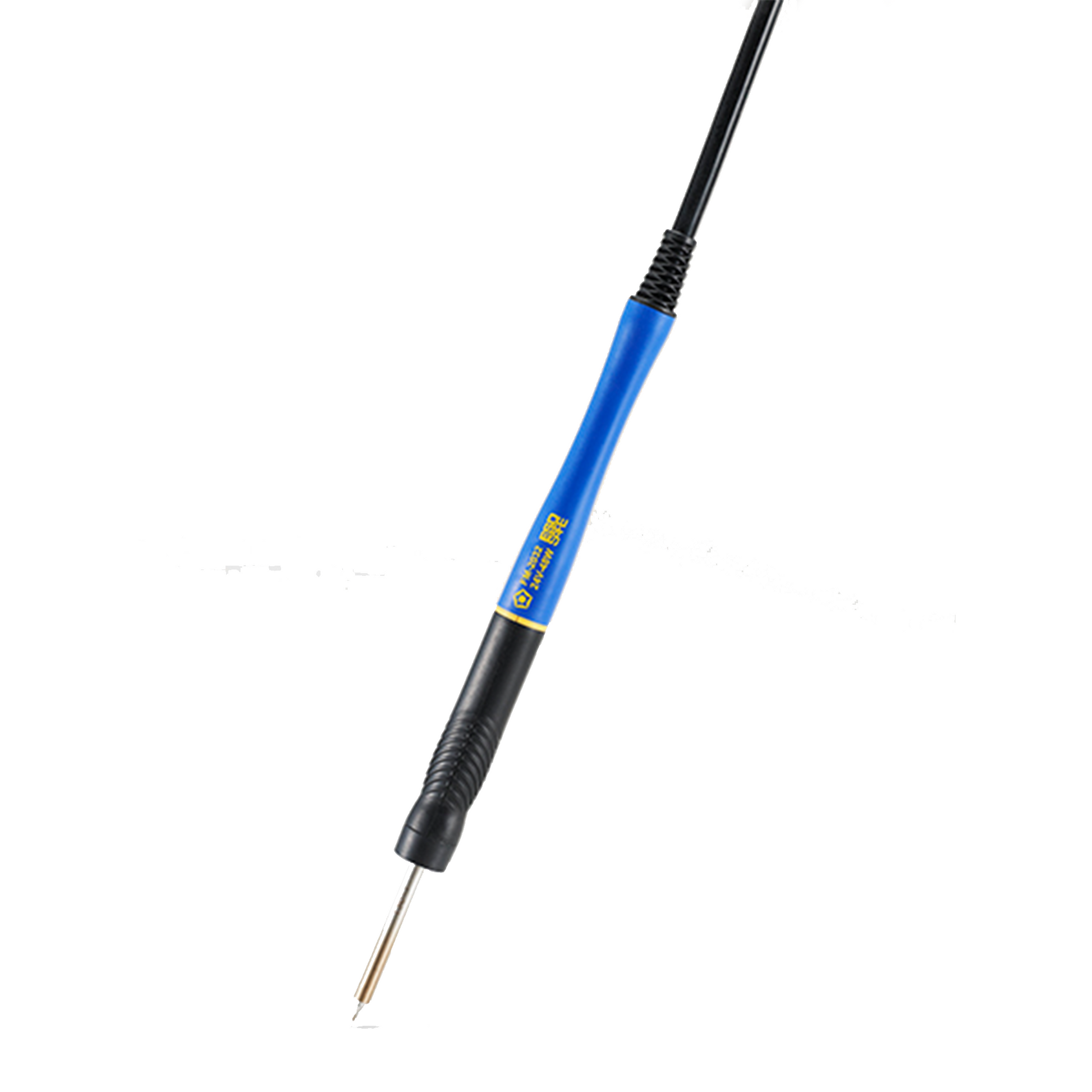

FM-2032 works with your Hakko high end soldering stations FX-951, FM-203 or FM-206. The fine tip and slim heater ensure sophisticated soldering for precise components on high density PWB under microscope.
Optional parts makes this capable of N2 Soldering.
Please refer to the User Manual for detailed specifications.
Perform delicate soldering with your soldering station.
Connect to FX-951, FM-203 or FM-206. The high power 48W heater is capable even for multilayer PWB with excellent thermal recovery.
Ideal for micro-soldering applications under a microscope
HAKKO's slim and light-weight soldering iron allows for a high level of visibility, even with small and intricate components.
N2 system compatibility
Optional parts, "Hose assembly” and appropriate “Nozzle assembly” for the tip makes FM-2032 compatible with N2 system.
Improved work efficiency
The composite header inside the iron is well-suited for minute and high-density components. There are also multiple narrow tips that are meant for navigating narrow workspaces.
Detachable grip mark
Attach a grip mark for lead-free soldering or remove it for eutectic soldering. Grip marks are convenient for identifying soldering tips which are difficult to recognize at a glance.
|Part No. (Handpiece)||FM2032-51|
|Temperature Range||400° - 840°F (200° - 450°C)|
|Tip-to-Ground Resistance||< 2 ohms|
|Tip-to-Ground Potential||< 2mV|
|Temperature Accuracy1||Meets or Exceeds IPC J-STD-001|
|Temperature Stability||Meets or Exceeds IPC J-STD-001|
|Reach||3.9 ft. (1.2m)|
|Handpiece Length||6.7 in. (170mm) w/T30-D1 tip|
|Handpiece Weight||0.49oz (14g) w/T30-D1 tip|
|Tips||T30 Series (not included)|
Soldering tips are not included with the FM-2032. Kindly purchase the T30 Series tips separately. Please note that you'll need both the tip, its compatible nozzle assembly and hose assembly B5178 for the soldering iron to function with the N2 system (Shape + Assembly Unit).
"Nozzle assembly D" with its shorter nozzle design provides compatibility with all the T30 Series soldering tips and better visibility.
|Shape D||Assembly Unit + B5178 Hose Assembly|
|T30-D06 Shape-0.6D||C5038 Nozzle assembly A or C5041 Nozzle assembly D|
|T30-D1 Shape-1D||C5038 Nozzle assembly A or C5041 Nozzle assembly D|
|Shape I||Assembly Unit + B5178 Hose Assembly|
|T30-I Shape-I||C5038 Nozzle assembly A or C5041 Nozzle assembly D|
|Shape J||Assembly Unit + B5178 Hose Assembly|
|T30-J Shape-J||C5040 Nozzle assembly C or C5041 Nozzle assembly D|
|Shape K||Assembly Unit + B5178 Hose Assembly|
|T30-KN Shape-KN||C5039 Nozzle assembly B or C5041 Nozzle assembly D|
|T30-KU Shape-KU||C5038 Nozzle assembly A or C5041 Nozzle assembly D|
|Part Number||Product Name|
|FM2032-52||FM-2032 Conversion Kit (with heat resistant pad, iron holder and connecting cable)|
|FM2032-51||FM-2032 Soldering Iron (without heat resistant pad, iron holder and connecting cable)|
|B5001||Handle Grip Mark (2 pcs)|
|FH200-81||Iron Holder with Cleaning Sponge, power-save function|
|B5000*||Iron Receptacle with Retaining Clip and Screw|
|A1519||Yellow Cleaning Sponge (replaces A1536)|
|A1536||Green Cleaning Sponge (discontinued)|
|B2300||Heat Resistant Pad|
*B5000 can be attached to any iron holder used for FM-2028, FM2027, or FM-2026 to make it compatible for FM-2032.
|Part Number||Product Name|
|C5038||Nozzle Assembly A (for Shape-0.6D, 1D, I or KU of T30 series)|
|C5039||Nozzle Assembly B (for Shape-KN of T30 series)|
|C5040||Nozzle Assembly C (for Shape-J of T30 series)|
|C5041||Nozzle Assembly D (for all soldering tips of T30 series)|
|B5178||Hose Assembly with Cord Holder (5 pcs)|
|599B-02||Tip Cleaner with Wire Sponge|
