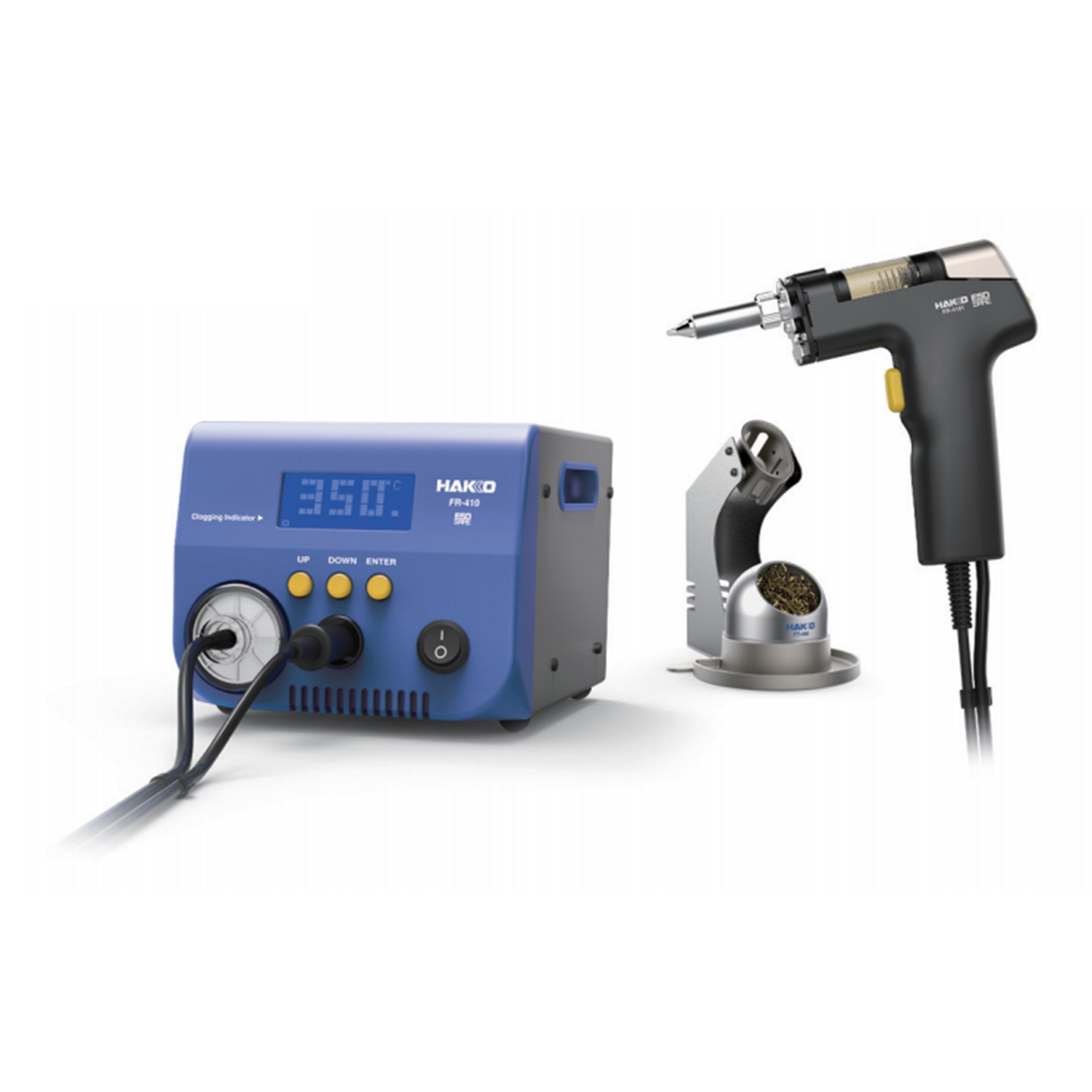

FR-410 Heavy Duty Desoldering Tool 230V
Availability: Pre-Order | Lead Time: 8-12 Weeks
Couldn't load pickup availability
- Desoldering tool with built-in vacuum pump
- 140 W high power enables perfect desoldering on multi-layer PWB
- New type nozzle can fit onto micro land patterns and narrow space
- New functions allow the improvement of maintainability and reliable desoldering
Please refer to the User Manual for detailed specifications.
Features
A wide selection of nozzle, with the addition of new types, is available for a variety of desoldering works.
Applicable to even micro lands, components in a narrow space or flat type terminals on the PWB of downsized devices like mobile phone.
140 W high powers enable perfect desoldering for the components on multi-layer PWB
Increasing the power to 140 W from 50 W of our previous models (HAKKO 474・475), it can make it easy to desolder on multi-layer PWB which was never an easy job, and it can also shorten the process time.
Secure Desoldering, valve function that suctions with high pressure
Suction starts 0.2 seconds after pulling the trigger for instance and high pressure suction to achieve complete desoldering.
Reduction of solder clogging
Improved heating ability and ACF* ensure suctioned solder be carried to filter pipe and reduce solder clogging.
*ACF (Anti Clogging Function) is a function to keep pump running for a certain number of seconds after releasing trigger.
Selecting the right nozzle for your workpiece is very important for quality of desoldering !
It is important to heat a land of PWB and a component lead with a nozzle at the same time when desoldering.
Selection of the right nozzle shape is critical to eansuring the quality of work inappropriate nozzles can decrease work efficiency and damage PWB.
The nozzle lineup for FR-410 covers a variety of desoldering works, such as micro lands, components in a narro space, and flat type terminals.
Quick nozzle replacement with special tool
Nozzle Quick Changer compatible handle (FR-4103) enables one-action nozzle replacement
Improvement in maintainability
・Easy heater replacement
Remove 3 screws to replace heating element
・Tool box for maintenance kit
A tool box that contains of maintenance tools such as cleaning pins for nozzle and heating core is provided for standard. The box can be set on the top of the unit for the convenience of use.
・Improvement of Maintainability of Filter Pipe
Cleaning filter pipe becomes very easy than ever.
・Larger filer and more transparency
Filter size has been increased to protect the pump from contaminants, and transparent filter cover allows quick visual check of the filter condition.
Specifications
Model No.: FR-410
- Power consumption: 190W
- Temperature range: 330 to 450ºC
- Temperature stability: ±5ºC at idle temperature
Station Output
- Voltage: AC 24V
- Vacuum generator: Vacuum pump, double cylinder type
- Vacuum pressure: Max. 80kPa (600mmHg)
- Suction flow: 15L/min.
- Dimensions: 165(W) × 137(H) × 244(D) mm
- Weight: 4.8kg
Desoldering Tool
- Power consumption: 140W (24V)
- Nozzle to ground resistance: <2Ω
- Nozzle to ground potential: <2mV
- Heating element: Composite heater
- Standard nozzle: Φ1.0mm S type (No.N61-05)
- Cord length: 1.2m
- Total length: 168mm (with Φ1.0mm S type nozzle)
- Weight: 190g (with Φ1.0mm S type nozzle)
* The suction flow is measured at the filter case suction port of station.
* Total length and weight (w/o cord, hose)
Packing List
- Station
- Desoldering tool (FR-4103)
- Power cord
- Iron holder (with cleaning wire)
- Tool box (Cleaning pin for ø1.0 mm, Cleaning pin for heater, Cleaning drill for ø1.0 mm, Nozzle wrench, Filter [qty 2], Ceramic paper filter [qty 4]),
- Instruction manual
Accessories
Soldering Tips
N61 Series | |
SS Type |
|
S Type |
|
Standard Type |
|
Long Type |
|
Oval Type |
|
Replacement Parts/Options
Replacement Parts
Name |
Specifications |
FR4103-81 |
Desoldering tool FR-4103 140W (24V), w/Φ1.0mm S type nozzle |
A5055 |
Heating element, 140W (24V), for FR-4103 |
B5222 |
Enclosure pipe for FR-4103 |
Filter (qty 10) |
|
Filter pipe assembly |
|
B5105 |
Filter pipe assembly |
Ceramic paper filter-L (qty 10) |
|
A1033 |
Ceramic paper filter-L (qty 10) |
Pre-filter |
|
Front holder |
|
Filter holder |
|
Filter pipe |
|
A1013 |
Diaphragm (qty 2) |
Valve plate (qty 2) |
|
C5030 |
Tool box |
Cleaning pin for nozzle Φ1mm |
|
B1215 |
Cleaning pin for heating element |
Cleaning drill for nozzle Φ1mm |
|
B1306 |
Drill holder for nozzle Φ0.8/1mm |
Drill (nozzle Φ1mm, qty 10) |
|
Nozzle wrench |
|
Cleaning wire |
|
FH410-82 |
Iron holder <w/ cleaning wire> for FR-4103 |
Optional Parts
Part No. |
Name |
Nozzle quick changer for FR-4103, FR-301 |
|
Receptacle for C5046 |
|
B5230 |
Oval nozzle positioning jig for FR-4103 |
FH410-81 |
Iron holder <w/ cleaning sponge> |
Cleaning sponge (yellow) |
|
B2874 |
Cleaning pin (nozzle Φ0.6mm) |
Cleaning pin (nozzle Φ0.8mm) |
|
Cleaning pin (nozzle Φ1.3mm) |
|
Cleaning pin (nozzle Φ1.6mm) |
|
B5141 |
Cleaning drill (nozzle Φ0.6mm) |
Cleaning drill (nozzle Φ0.8mm) |
|
Cleaning drill (nozzle Φ1.3mm) |
|
Cleaning drill (nozzle Φ1.6mm) |
|
B5142 |
Drill holder (nozzle Φ0.6mm) |
Drill holder (nozzle Φ1.3/1.6mm) |
|
B5143 |
Drill (nozzle Φ0.6mm, qty 10) |
Drill (nozzle Φ0.8mm, qty 10) |
|
Drill (nozzle Φ1.3mm, qty 10) |
|
Drill (nozzle Φ1.6mm, qty 10 |
