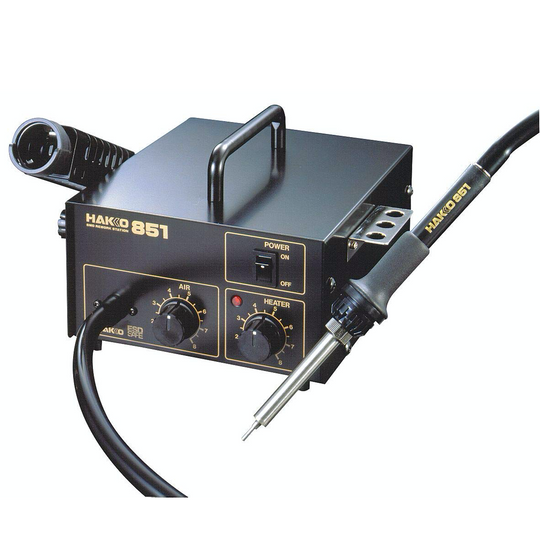

851-9 SMD Rework Station 230V

• Single-nozzle hot air rework system that is perfect for the repair or local heating of small surface-mounted components
• Slim grip is ideal for work in narrow spaces
• Air volume and temperature settings can be adjusted to provide the optimum working temperature

Features

Adjustable temperature control:100ºC-540ºC

• Air volume selector switch with ultra-light setting.
• ESD design and grounding measure to minimize damage from current leakage and electrostatic discharge.

Applications

• Soldering and desoldering of small surface-mounted chip components.
• Shrinking tubing, heating tests and local heating operations.

Specifications

Model No. 851

• Power consumption: 85W
• Hot air temperature: 100 to 540ºC

Station

• Power consumption: 5W
• Air flow: 6L/min. (Max.)
• Dimensions: 167(W)×101(H)×182(D)mm
• Weight: 1.8kg

Handpiece

• Power consumption: 80W
• Standard nozzle: Φ2.0mm (No.A1066)
• Total length: 217mm
• Weight: 180g

* Dimensions and weight for station (w/o cord, handpiece)

* Total length and weight for handpiece (w/o cord)

 Packing List

• Unit
• Handpiece holder
• Nozzle holder
• Instruction manual
