[This is a pre-order product and will take 6-8 weeks to arrive. Kindly view pre-order FAQs before purchasing.]

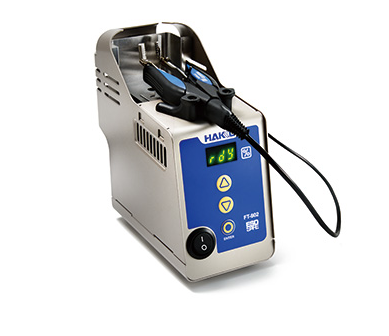

The FT-802 Thermal Wire Stripper uses heat as the primary force to provide precise and high quality insulation stripping with no nick.
Tips/Blades are not included. Click here to shop applicable G3/G4 blades for FT-802.
Packing List
| FT-802 Station | -- |
| Power Cord | B2419 |
| Handpiece | FT-8004 |
| Instruction Manual | -- |
Features
Thermal Stripping
The thermal heat helps to strip wire sharply and effectively with no nicks. Even fine AWG38 wire can be stripped effectively with standard blades.
Aligned Tweezers Structure
Due to the tweezers' structure, the cutting blades are perfectly aligned which allows for a high quality cut.
Space Saving & Replaceable Blades
The integration of the handpiece holder on the station can maximise workbench space. The blades can also be easily replaced by using the hex-wrench (included in the unit) and the blade removal plate.
Convenient Settings of Optimum Output Level
Easy setting of output level by the unit of 5% as per material.
User-Friendly Display
The status of the handpiece can be seen on the display.
Status: "Ready"
- Handpiece can be used immediately
- Indicating timer start for auto sleep function when output is <80%
Status: "Sleep"
- Auto sleep function is running
- Save 50% of the output value
- Timing activation ranges from 1 to 30 minutes
Upgraded Blades
G4 blades are upgraded from the G2 blades which have optimized edges that make wire stripping easier.
Specifications
Packing List
- Station (with wire material indicator seal)
- Handpiece FT-8004 (with lead adjuster)
- Hexagon socket set screw (M2.5 x 2.5 [qty 2])
- Hexagon wrench (1.27 mm)
- Power cord
- Instruction manual
Station
| Model No | FT-802 |
| Power Consumption | 76W |
| Output Voltage | AC 20V |
| Dimensions | 76(W) x 159(H) x 161(D)mm |
| Weight | 1.6 Kg |
Wire Stripper (FT-8004)
| Power Consumption | 72W (20V) |
| Cord Length | 1.6m |
| Total Length | 153mm |
| Weight | 47g |
*Length and weight for handpiece are measured without cord and blades.
Accessories
FT-8004 blades: G4-1601, G4-1602 & G4-1603
Replacement Parts
| Part No | Name | Specifications |
| FT8004-81 | FT-8004 | with lead adjuster, hexagon socket screws (2) and hexagon wrench |
| B5242 | Lead Adjuster | With o-ring, screw and stopper |
| B5244 | Blade Removal Plate | With Screws |
| B5245 | Handpiece Holder | With sems screws |
| B5243 | Sleeve Assembly | With heat insulation covers |
