Hakko Products

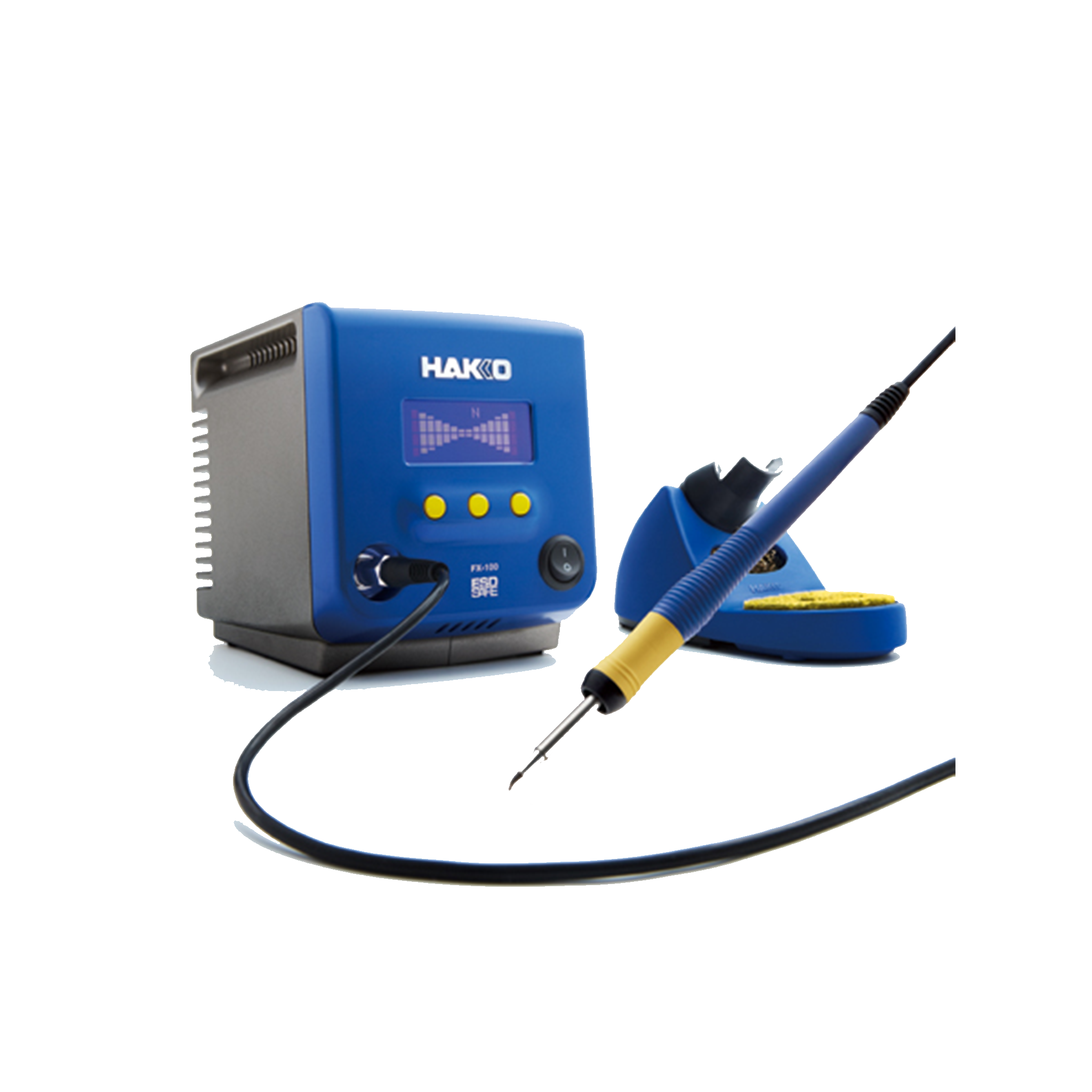

FX100-11 Soldering Station 230V
Availability: Pre-Order | Lead Time: 8-12 Weeks
Couldn't load pickup availability
Click here to shop compatible tips for FX-100 (T31 Series / T35 Series)
- FX-100 provides the heat to the tip effectively by ‘Induction heater’
- In addition, it allows more efficient heat supply with power assist of our unique technology.
- No calibration is required.
- Selectable micro soldering iron as usage at your option.
Features
The IH system transforms high-density micro-soldering with the heat power it generates.
- Unlike resistance-based heating systems that control temperature by turning heater power on and off via a sensor, with an induction heating system the soldering tip itself produces heat and maintains a constant temperature, enabling a small soldering tip to handle high thermal capacity, high-density substrates.
With the IH system, controlling the temperature is easy
- Temperature setting control of the soldering iron is easier as the temperature is fixed with the various models in the soldering tip line up, unlike with conventional temperature setting systems.
- Whatever temperature is selected, it can be displayed on the LCD panel with simple button operations.
- HAKKO FX-1001 Soldering Iron (standard): 350°C, 400°C, 450°C
- HAKKO FX-1002 Soldering Iron (optional): 350°C, 400°C
When a slight drop in heat capacity is detected
- When there is a drop in heat capacity while soldering, the actual temperature of the tip can be raised slightly by selecting BOOST mode, improving workability.
Two types of soldering irons enable handling of both "high heat capacity, high-density circuit boards" and "soldering under a microscope"
HAKKO FX-1001 Soldering Iron
Recommended for use with high heat capacity, high-density circuit boards
Temperature setting:
- 350°C: T31-03 Series
- 400°C: T31-02 Series
- 450°C: T31-01 Series
Optional: HAKKO FX-1002 Soldering Iron
Recommended for soldering work under a microscope.
Temperature setting:
- 350°C: T35-03 Series
- 400°C: T35-02 Series
Simple three-button operation
- Large LCD displays information for easy operation and management.
Specifications
A soldering tip is not included with this product. The desired tips should be purchased separately.
Packing List:
- Soldering station (HAKKO FX-100)
- Soldering iron (HAKKO FX-1001)
- Power cord
- Iron holder (with cleaning sponge and wire)
- Heat resistant pad
- Heat insulation covers (green and yellow)
- Instruction manual
Specifications: Model No. FX-100
- Power consumption: 28W (85W)
- Temperature range: T31-01 Series: 450ºC, T31-02 Series: 400ºC, T31-03 Series: 350ºC
- Temperature stability: ±1.1ºC
Station
- Output power: 50W
- Output frequency: 13.56MHz
- Dimensions: 127(W)×150(H)×167(D)mm
- Weight: 3kg
Soldering Iron
- Tip to ground resistance: <2Ω
- Tip to ground potential: <2mV
- Heating element: IH (Induction heating)
- Cord length: 1.3m
- Total length: 190mm (with No.T31-02D24 or T31-03D24) / 193mm (with No.T31-01D24)
- Weight: 31g (with No.T31-02D24)
* Total length and weight (w/o cord)
Accessories
Soldering Tip
| T31 Series | |
| Shape BC/C |
For 350℃
For 400℃
For 450℃
|
| Shape B |
For 350℃
For 400℃
For 450℃
|
| Shape D |
For350℃
For 400℃
For 450℃
|
| Shape I |
For350℃
For 400℃
For 450℃
|
| Shape J |
For 350℃
For 400℃
For 450℃
|
| Shape K |
For 350℃
For 400℃
For 450℃
|
Parts
Replacement Parts
|
Name |
Specifications |
|
B5007 |
Sleeve (green) |
|
B5008 |
Sleeve (gray) |
|
Heat resistant pad |
|
|
Soldering iron FX-1001 |
|
|
Iron holder <w/ cleaning sponge, cleaning wire> |
|
|
B5006 |
Sleeve (yellow) |
|
Cleaning sponge (yellow) |
|
|
Cleaning wire for FH-800 |
Optional Parts
|
Part No. |
Name |
|
Soldering iron FX-1002 with yellow sleeve assembly |
|
|
HAKKO FX-1002 conversion kit |
|
|
B5179 |
Sleeve assembly (yellow) |
|
B5180 |
Sleeve assembly (green) |
|
FH800-82BY |
Iron holder <w/ cleaning sponge, cleaning wire> |
|
Rubber cleaner |
