• Hakko FX-8801 Soldering Iron M Type suitable for FX-888D All-Round Soldering Station and FX-889 2-Port All-Round Soldering Station. With thermal conductivity.
1 1

Hakko Products

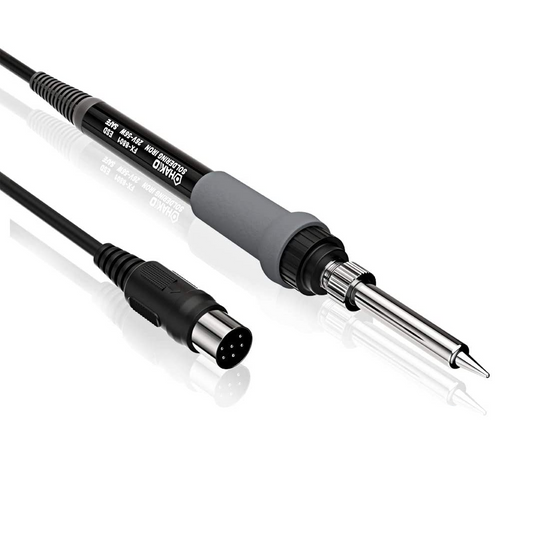

FX-8801 Soldering Iron M Type 230V

$79.00 USD
$79.00 USD
Sale Make an Enquiry
Shipping calculated at checkout.

Click here to shop compatible tips for FX-8801

  • Compatible with FX-888D All-Round Soldering Station and FX-889 2-Port All-Round Soldering Station.
  • Excellent thermal conductivity
  • HAKKO FX-8801: M type soldering iron for use with T18 tip series
  • HAKKO FX-8805: L type soldering iron for use with T19 tip series
Features

Applicable Models:

Specification
  • Packing List: Handpiece, Instruction Manual
  • Power consumption 65W (26V)
  • Temperature range 50 to 480ºC
  • Tip to ground resistance <2Ω
  • Tip to ground potential <2mV
  • Heating element Ceramic heater
  • Standard tip for FX-8801: Shape-B (No.T18-B)
  • Standard tip for FX-8805: Shape-B (No.T19-B)
  • Cord length 1.2m
  • Total length FX-8801: 217mm (with B tip)
  • Total length FX-8805: 222mm (with B tip)
  • Weight FX-8801: 46g (with B tip)
  • Weight FX-8801: 52g (with B tip)
Accessories
Part Number Product Name
A1560 Heating Element (65W, 26V)
B1785 Nut
B3469 Enclosure Pipe
B5122 Enclosure Pipe Assembly
B2022 Nipple
  • Use B1785 and B3469 to change FX-8805 to FX-8801.
  • Use B5122 to change FX-8801 to FX-8805.

Please refer to the User Manual for detailed specifications.
