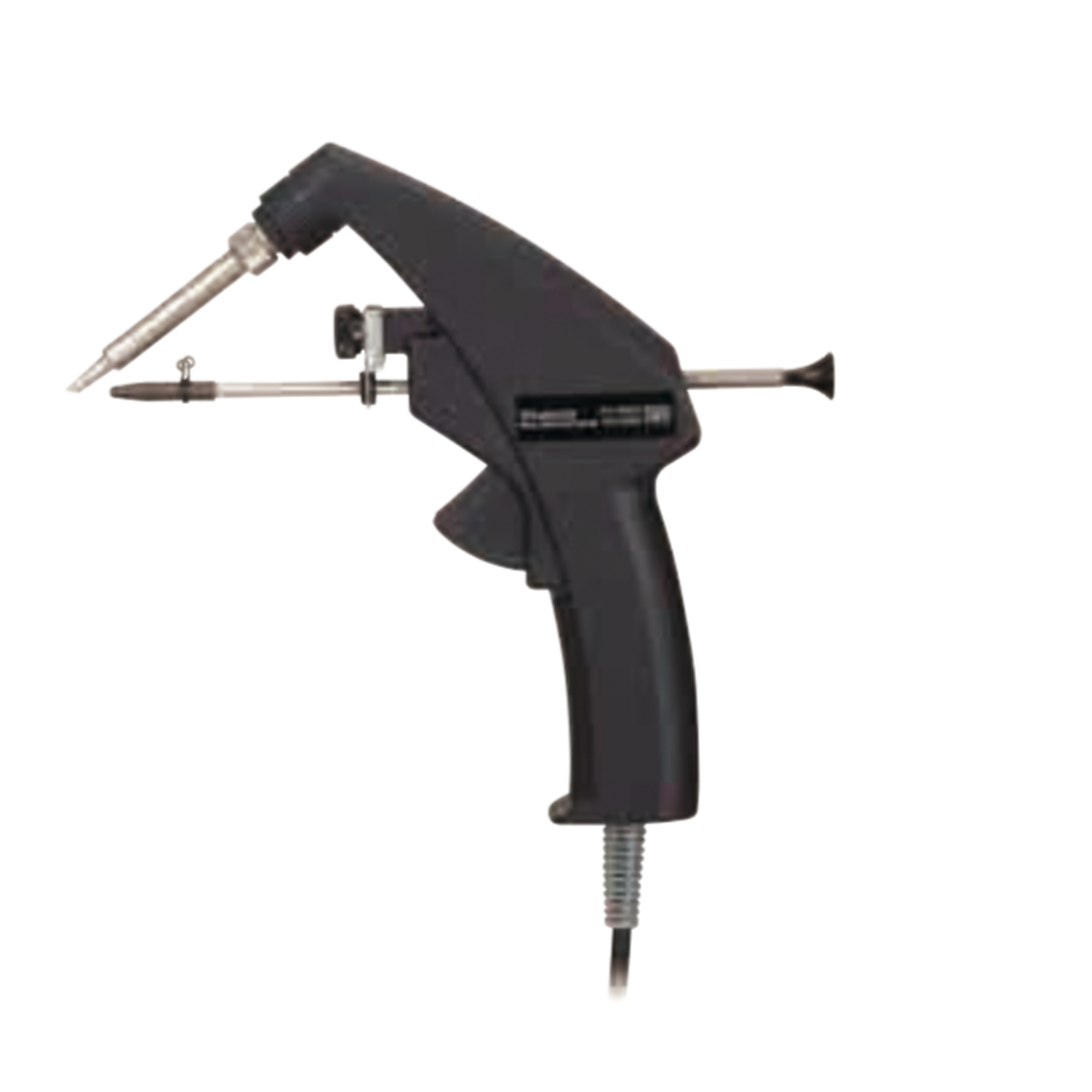

- One-hand manual-solder-feed iron designed exclusively for HAKKO FX-888D, FX-889, FR-701 and FR-702
- Manual system allows solder to be fed only when needed.
Features
Applicable Models:
Solder and feed with one hand
- Can be used with HAKKO FX-888D, FX-889, FR-701 or FR-702 soldering station.
- Can be used with FX-888 (Discontinued model)
- Feed a set amount of solder with one hand.
- Perform two actions at the same time with one hand.
Manual feed system is perfect for cellular manufacturing
- Manual system ensures solder can only be fed when working
- Soldering work can be conducted at the pace of the operator
- Extensive lineup of tips
- Anti-static specifications
Specification
- Packing List: Soldering gun, instruction manual, Standard tip: T18-CF3 (Shape 3C, cut surface only)
- Power consumption: 65W (26V)
- Temperature range: 50 to 480ºC
- Tip to ground resistance: <2Ω
- Tip to ground potential: <2mV
- Heating element: Ceramic heater
- Standard tip: Shape-3CF (No.T18-CF3)
- Guide nozzle: Φ1.0mm (Option except Φ1.0mm guide nozzle)
- Usable solder diameter: Φ0.6, 0.8, 1.0, 1.2, 1.6mm
- Cord length: 1.1m
- Dimensions: 170(W)×180(H)×23(D)mm (with 3C tip)
- Weight: 207g (with 3C tip), excludes cord
Please refer to the User Manual for detailed specifications.
Accessories
Soldering Tips
T18 Series: Shape BC/C, Shape B, Shape D, Shape I, Shape K

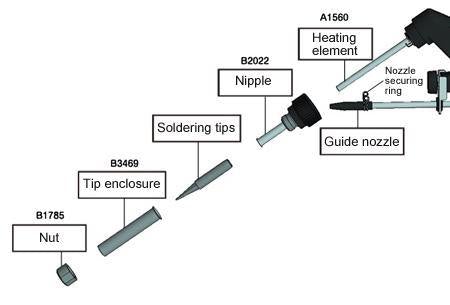

Replacement Parts
| Part Number | Product Name |
| A1560 | Heating Element (65W, 26V) |
| B1785 | Nut |
| B2022 | Nipple |
| B2652 | Guide Nozzle, 0.6mm ESD |
| B2653 | Guide Nozzle, 0.8mm ESD |
| B2654 | Guide Nozzle, 1.0mm ESD |
| B2655 | Guide Nozzle, 1.2mm ESD |
| B2656 | Guide Nozzle, 1.6mm ESD |
| B3469 | Enclosure Pipe |
Optional Parts
| Part Number | Product Name |
| C1437 | Iron Holder (for 951, 952, 958, 959 (Discontinued) and FX-8803 |
| A1042 | Cleaning Sponge |
