*Soldering Tip NOT included

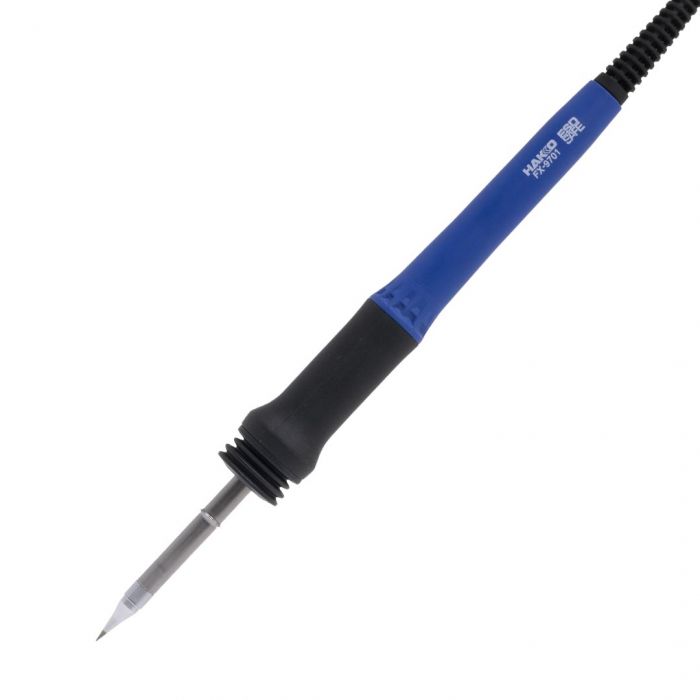

Standard Soldering Iron for FX-971. Has 95W of power with an ergonomic design and a sleep sensor built directly into the iron.

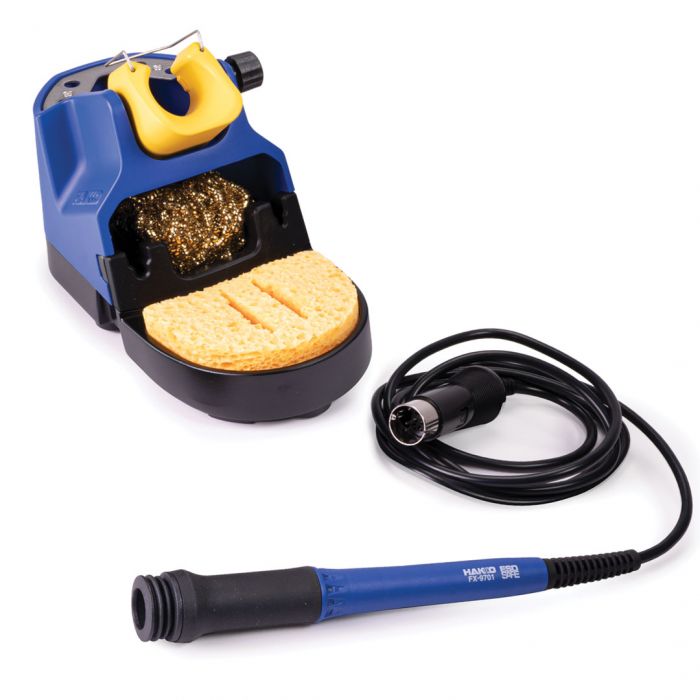

The conversion kit comes with a fully redesigned FH-215 Iron Holder to support the handpiece with a new receptacle piece, extra tip storage, easily removable back as well as a cleaning sponge and brass wire.
Packing List
| Iron Only | |
| Soldering Iron* | FX-9701 |
| Conversion Kit | |
| Soldering Iron* | FX-9701 |
| Iron Holder | FH-215 |
| Cleaning Wire |
A1561 |
| Cleaning Sponge | A5038 |
| Instruction Manual |
*Soldering Tip and Station NOT included
Specifications
FX-9701 / FX-9702 Soldering Iron
- Soldering Tip Series: T39
- Iron Holder: FH215-81
- Power Consumption: 95W (24V)
- Temperature Range: 50 - 450 °C
- Tip to ground resistance: <2Ω
- Tip/Nozzle to ground potential: <2mV
- Heating Element: Composite Heater
- Cord length: 1.2m
- FX-9701 - Total Length: 206 mm (with 2.4D tip)
- FX-9701 - Weight: 31g (with 2.4D tip)
- FX-9702 - Total Length: 227 mm (with 2.4D tip)
- FX-9702 - Weight: 49g (with 2.4D tip, nozzle assembly D)
