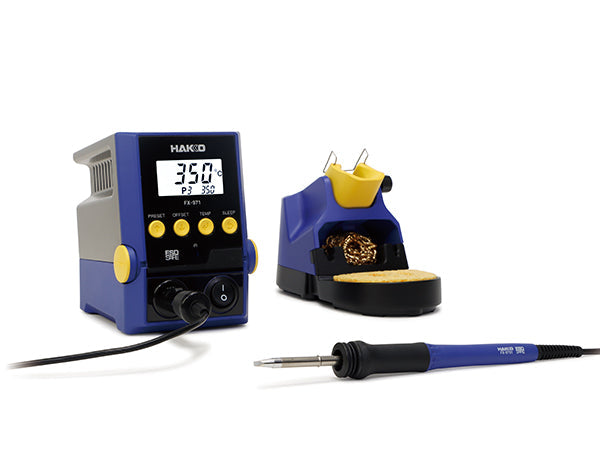

FX-971 Soldering Station

Bringing together precision and innovation with the quality, reliability, and power Hakko is known for.

The Next Generation Soldering Station from Hakko

• 15° angle tilt
• Over 60 different tip sizes and shapes
• Stackable and compact design for smaller footprint
• 100W with wide temperature range of 50°C to 450°C
• Wireless IR Offset and Control Software

Handpiece and Soldering Tip Configuration

*Only the FX-9701 is included with the purchase of an FX-971 or FX-972. All other soldering irons are sold separately.
**All soldering tips and nozzle assembly are not included with the purchase of any soldering irons. Kindly purchase them separately. Nozzle assemblies are required for N2-type soldering irons.

Features

Station Parameters

• 5 Preset Temperature Settings
• Low Temperature Alarm
• Sleep Timer
• Auto Shut Off
• Password Activation

New Composite Tip (Patented)

With improved sensor sensitivity and a design that smoothly transfers the heat from the heater to the tip, the tip temperature has become stable and it ensures better soldering.

Cycle Time Reduced by 40% (Approx)

It enables soldering in a shorter time and improves work efficiency.

Upgraded Display for Increased Visibility

Adjustable Tilt Mechanism
Tilt mechanism for easy viewing and operation of the screen display, depending on the installation location, e.g., on or under the workbench or on the rack.

High-Brightness and Bigger Screen
It shows information such as set temperature, tip's sensor temperature, and preset setting, clearly and widely. The viewing angle is wide, and the high-brightness display provides high visibility.

Intuitive Operation

Various settings can be easily configured with just four buttons

Easy to Carry

Improved Tip Shapes for Better Soldering

Soldering that was previously impossible or time-consuming can now be achieved with the new tip shapes.

Wireless IR Auto-Cal

The FX-971 works together seamlessly with the FG-100/101B Tip Thermometer for measuring tip temperature and automatically offsetting the temperature on the station.

Integrated Software and Performance Tracker

The Hakko Control Software allows for direct temperature operation, setting presets, displays and record real time tip temperatures, stores user profiles and auto-cal measurements.

Upgraded Iron Holder

The FH-215 features an integrated brass wire receptacle, sponge holder, safety hot tip removers and holds up to 4 tips with no sleep cable required.

Nitrogen Soldering

There is an option for Nitrogen soldering with the FX-9702 N2 and FX-9704 Micro N2 Soldering Iron

Packing List

*T39 Soldering Tips not included

Specifications

FX-971 Soldering Station

• Power Consumption: 100W
• Temperature Range: 50 - 450 °C / 120-850°F
• Temperature Stability: +/- 3°C at idle temperature
• Output Voltage: AC 24V
• Dimensions (with tilt): 93 (W) x 126 (H) x 133 (D) mm
• Dimensions (without tilt): 93 (W) x 126 (H) X 123 (D) mm
• Weight: 1.2kg

FX-9701 / FX-9702 (N2) - Soldering Iron

• Soldering Tip Series: T39
• Iron Holder: FH215-81
• Power Consumption: 95W (24V)
• Temperature Range: 50 - 450 °C
• Tip to ground resistance: <2Ω
• Tip/Nozzle to ground potential: <2mV
• Heating Element: Composite Heater
• Cord length: 1.2m
• FX-9701 - Total Length: 206 mm (with 2.4D tip)
• FX-9701 - Weight: 31g (with 2.4D tip)
• FX-9702 - Total Length: 227 mm (with 2.4D tip)
• FX-9702 - Weight: 49g (with 2.4D tip)

FX-9703 / FX-9704 (N2) - Micro Soldering Iron

• Soldering Tip Series: T50
• Iron Holder: FH215-811
• Power Consumption: 70W (24V)
• Temperature Range: 50 - 450 °C
• Tip to ground resistance: <2Ω
• Tip/Nozzle to ground potential: <2mV
• Heating Element: Composite Heater
• Cord length: 1.2m
• FX-9703 - Total Length: 174 mm (with 1D tip)
• FX-9703 - Weight: 15g (with 1D tip)
• FX-9704 - Total Length: 196 mm (with 1D tip)
• FX-9704 - Weight: 35g (with 1D tip, Nozzle Assembly A)

Replacement Parts
