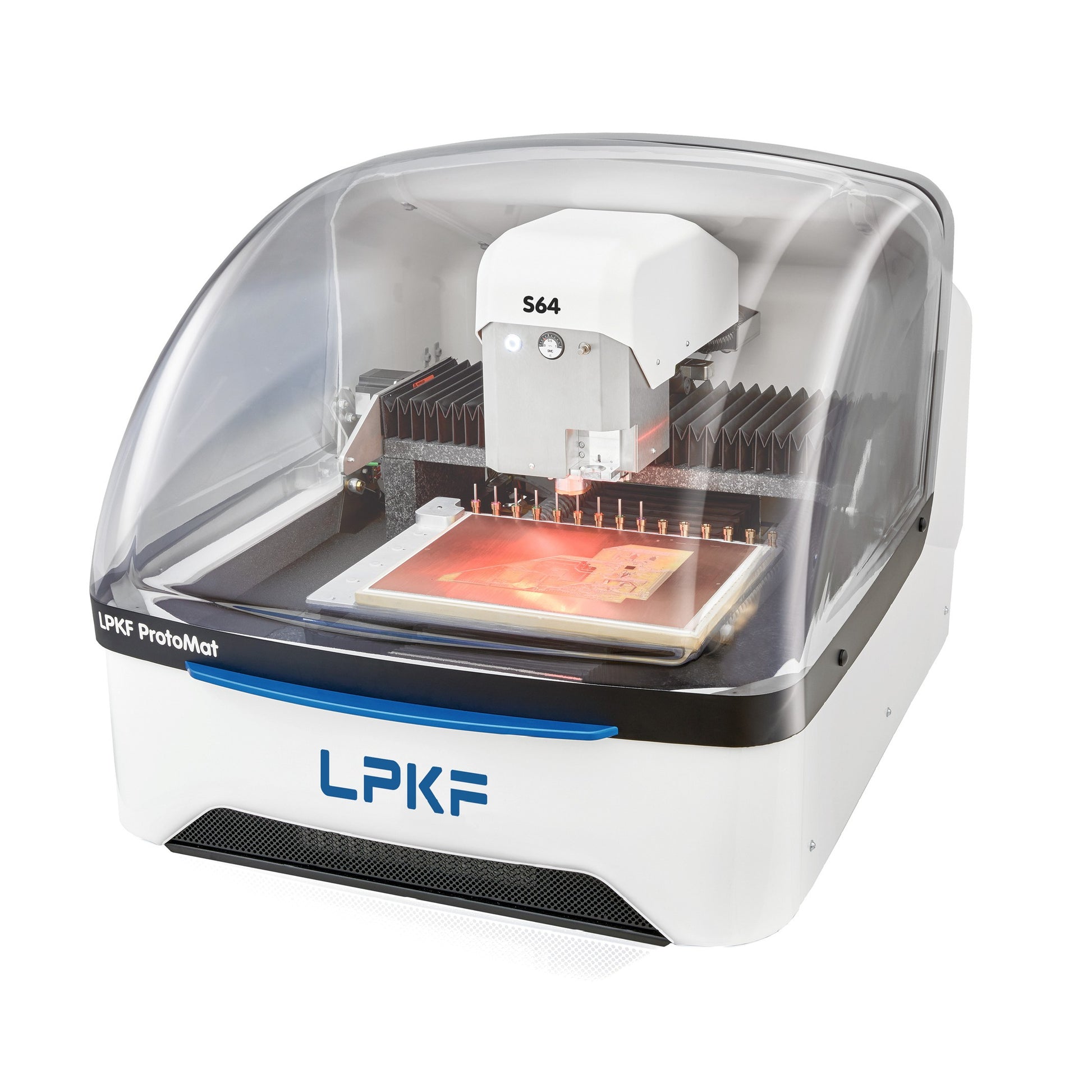

LPKF Protomat S64 actual unit - side view

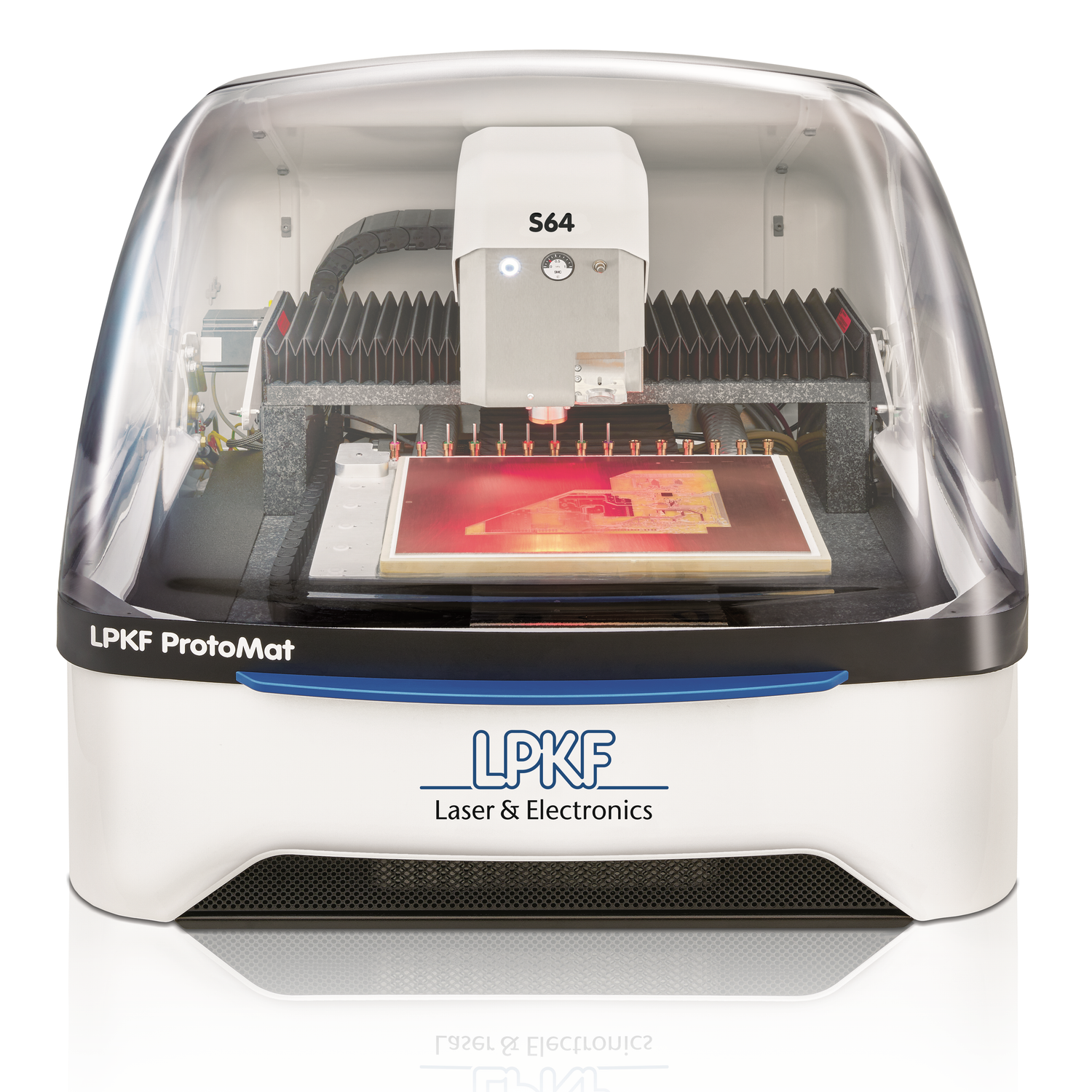

LPKF Protomat S64 actual unit - front vew
  • Load image into Gallery viewer, LPKF Protomat S64 actual unit - side view
  • Load image into Gallery viewer, LPKF Protomat S64 actual unit - front vew

LPKF Protomat S64 - PCB Prototyping Machine

Regular price
$0.00
Sale price
$0.00
Regular price
Contact Our Sales Team
Unit price
per
Shipping calculated at checkout.

LPKF Protomat S64 - The allrounder in printed circuit board processing

Suitable for almost all in-house prototyping applications

The high speed of the low-maintenance milling spindle guarantees the production of fine structures down to 100 μm and allows the production of multilayers. The extensive equipment, including dispenser and vacuum table, makes LPKF ProtoMat S64 the perfect addition to any development environment.

LPKF Protomat S64 - Features and Benefits

Milling Spindle 60 000 RPM

The milling spindle with 60 000 rpm guarantees shortest machining times and highest geometric accuracy. It is low-maintenance due to the new pneumatic self-cleaning function for milling spindle and milling depth sensor. The granite machine base also ensures consistently accurate results.

Automatic: Tool Change, Milling Width Adjustment, Dispensing

Up to 15 tools – more if required – can be changed  automatically during the production process. Depending on the intrusion depth, the conical milling cutters generate different insulation channels. The automatic milling width adjustment ensures that the milling  contour has a constant width. This shortens the set- up time and enables operator-free performance. Sensors in LPKF ProtoMat S64 ensure optimally controlled, exact milling depth and also monitor  the tool change process.

2.5 dimensional machining

Housing parts can be machined in up to 2.5 dimensions.

Solder paste dispenser

 If required, the integrated dispenser can fully  automatically apply solder paste to solder pads.  Additional data calculation is not necessary.

Sensor controlled

Sensors in LPKF ProtoMat S64 ensure optimally controlled, exact milling depth and also monitor  the tool change process.
