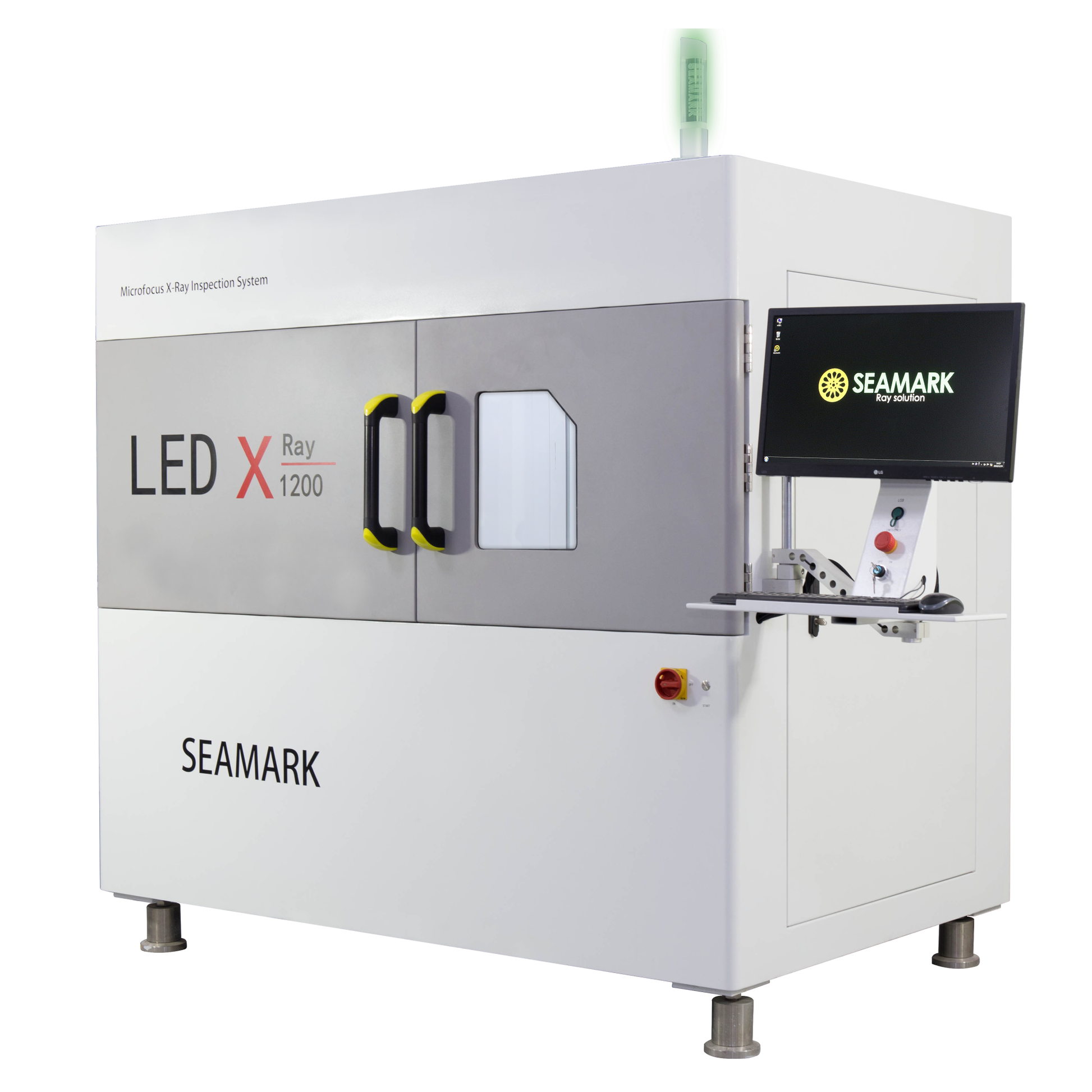

Seamark X1200 Precise Micro-Focus Offline X-RAY Inspection

Precise Micro-Focus X-ray equipment for large scale inspection

Used for large PCB boards, 5G communication mainboards and LED light strips. Large effective inspection area of 1200x600mm makes a wide range of automatic inspection and custom inspection possible.

Features
  • Large inspection area (1200x600mm)
  • X-ray source and X/Y motion detector covers main inspection area
  • Editable inspection program for automatic inspection and judgement
  • Optional automatic inspection program customisation
  • Easy user-friendly software operation
  • Low operation costs
  • Used for applications such as LED Strip Inspection and PCB Inspection

CNC Automatic Operation Inspection

Two modes of free point bit and matrix point bit are supported. After each point bit detection, a picture is automatically saved. Allows saving, modifying and repeating the CNC program.

Specifications

X-ray Tube

Tube Type Reflective Sealed Micro-Focus X-ray Tube
Voltage Range 40 - 90 KV / 40 - 130 K
Electricity Range 10 -200 uA / 10 - 300 uA
Max Output Power 8W / 39W
Micro Focus Size 5 - 15 um

Flat Panel Detector

Detector Type Amorphous Silicon Flat Panel Detector
Pixel Matrix 1536 x 1536
Field of View 130 x 130 mm
Resolution 5.8 Lp/mm
Frame (1 x 1) 20 fps
AD Conversion Bit 16 bits

Equipment

Dimensions 2040 L x 1280 W x 1870 H mm
Input Power 220V 10A 50-60Hz
Platform Size 1200 x 600 mm
Operation System Industrial Computer WIN10 64Bit
Net Weight 2350kg
