PRECISION. EFFICIENCY. INNOVATION.
Your Partner for Automated Soldering

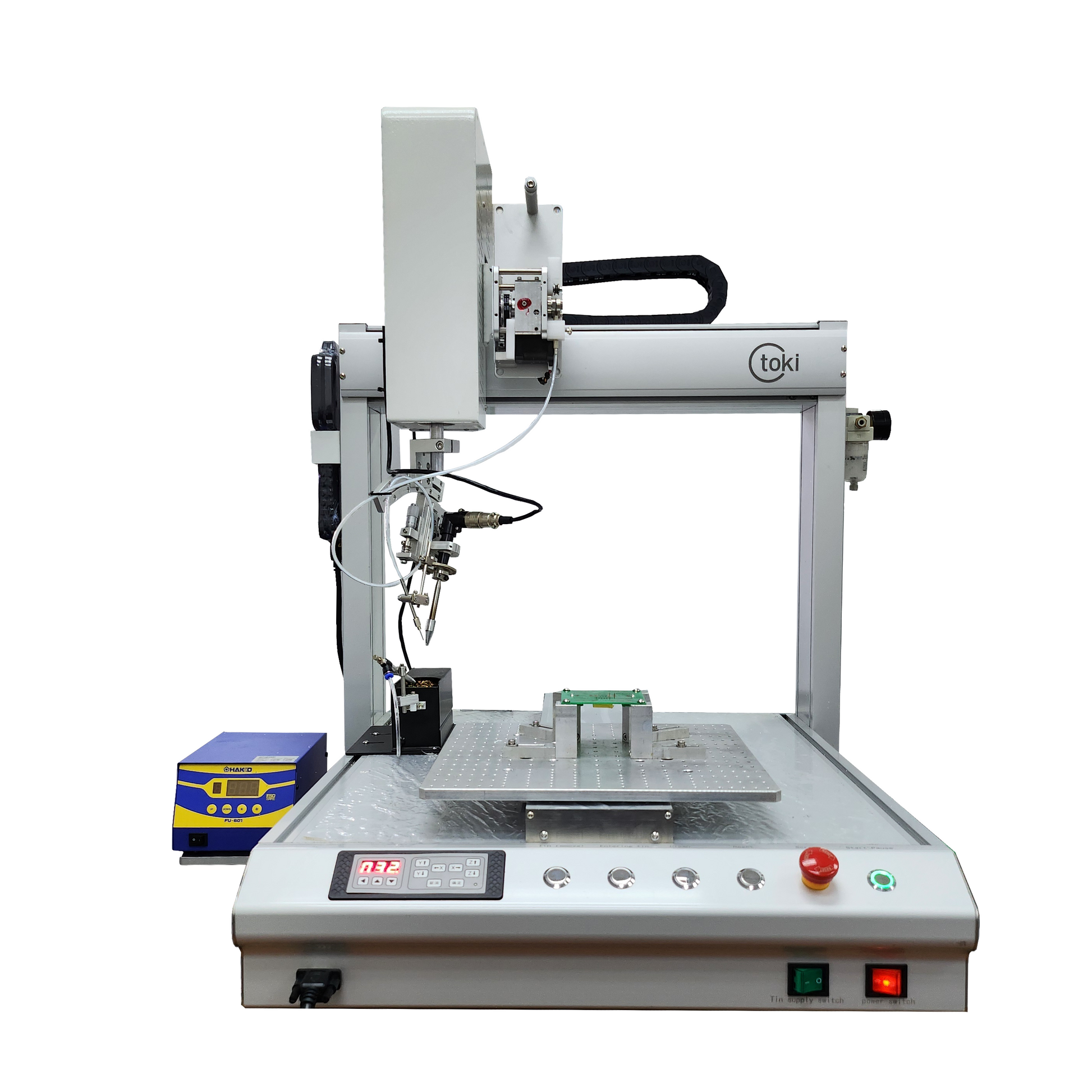

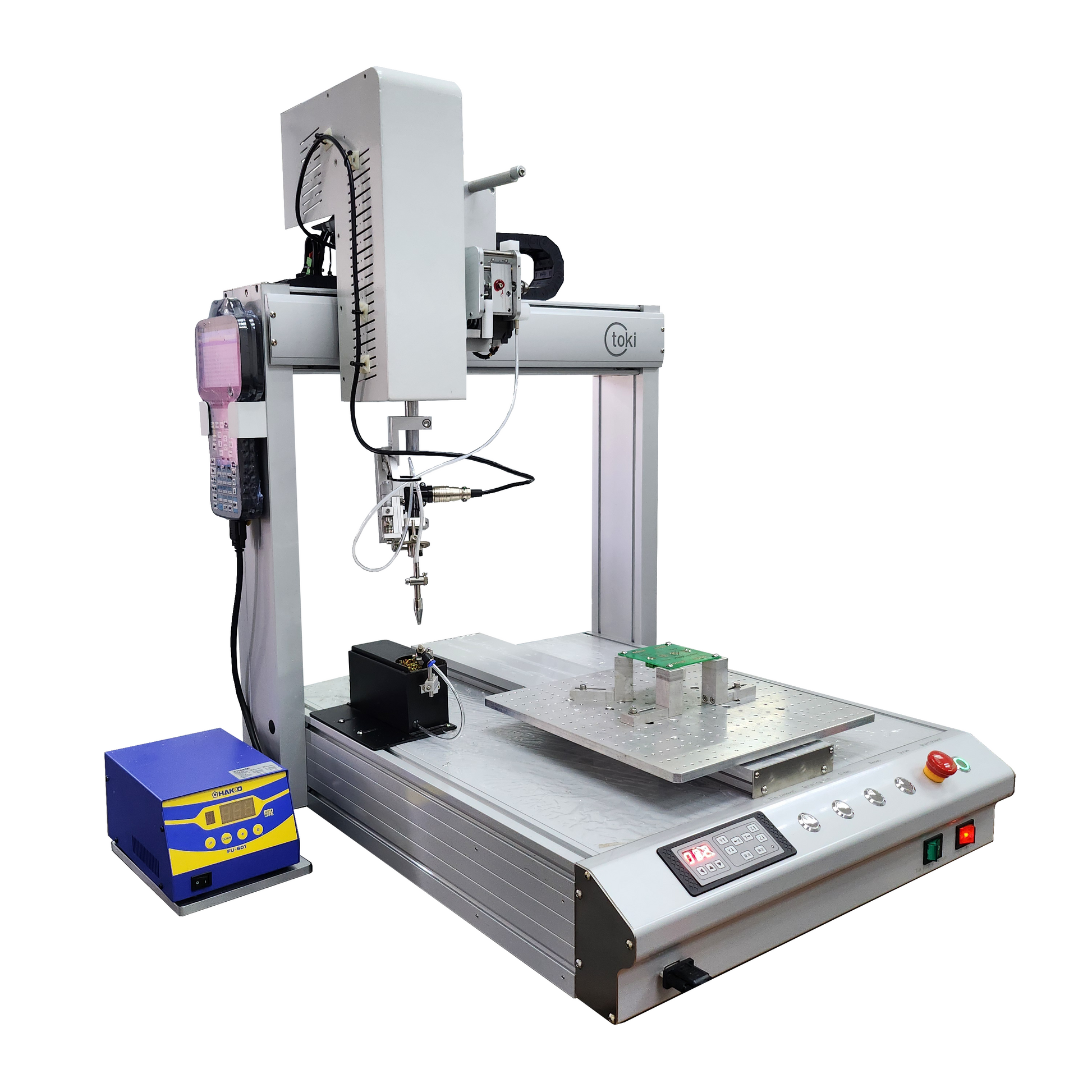

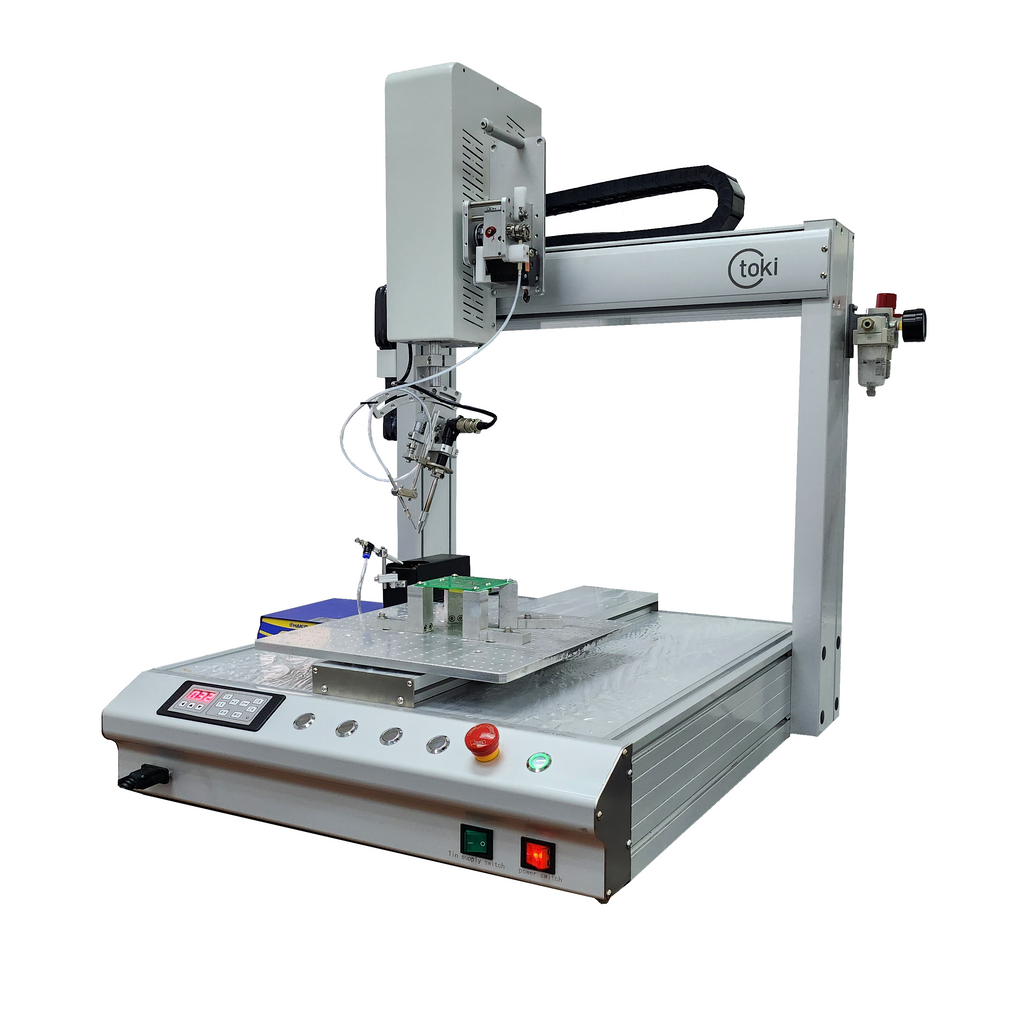

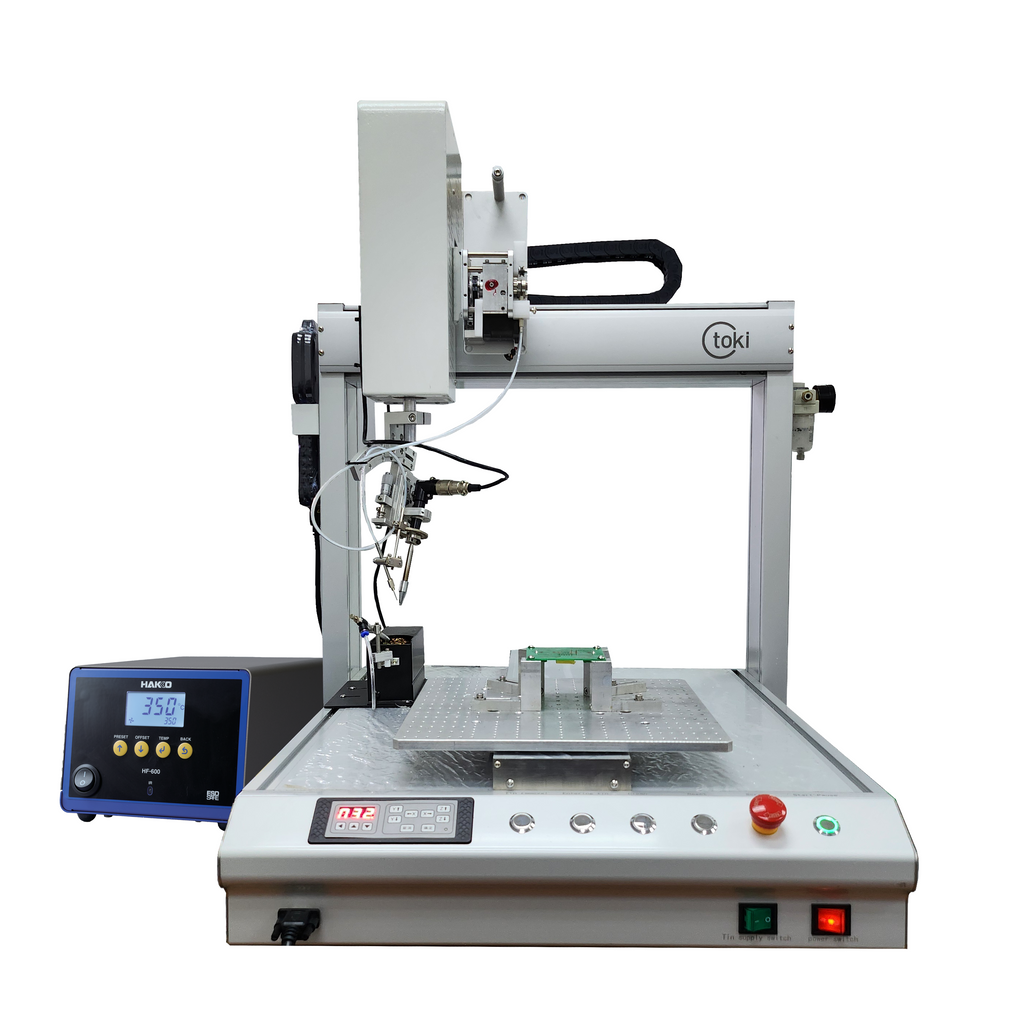

Enhance your production capabilities with the Tokimeku 4-Axis Auto Soldering Robot, an advanced robotic soldering system designed to deliver unparalleled precision and efficiency.
Integrated with industry-leading Hakko FU-601 Soldering Station and Hakko FU-6002 Iron Unit, this solution is engineered for high-precision soldering, optimizing production workflows by significantly reducing human error, improving throughput, and maintaining consistent solder joints across a diverse range of applications.
Ideal for industries requiring reliable, high-quality soldering, the Tokimeku 4-Axis Auto Soldering Robot enhances productivity, streamlines operations, and supports the scalability of your manufacturing processes.
APPLICATIONS
- PCB Assembly & Repair
- Wire Harness Soldering
- Automotive Electronics
- Medical Device Manufacturing
- Aerospace & Defense Electronics
- LED & Display Manufacturing
- Industrial & Consumer Electronics
KEY FEATURES AND BENEFITS
- Equipped with HAKKO FU-601 & FU-6002:
Superior heating performance, fast temperature recovery, and stable soldering temperature.
- High-Precision Solder Feed Mechanism:
Ensures accurate and consistent solder delivery.
- Multi-Axis Motion Control:
Supports point, drag, and rotary soldering with a fully programmable interface.
- Customizable for Different Applications:
Ideal for PCB assembly, wire harness soldering, and precision electronic component soldering.
- User-Friendly Interface:
Teaching box for easy programming and operation.
- Stable & Fast Temperature Control:
0-500°C range with ±2°C stability for consistent soldering quality.
- Flexible & Customizable Axis Movement:
Adjustable X, Y, Z, and θ axes for optimized soldering paths.
- Enhanced Motion Compensation:
Advanced 3-axis motion compensation for increased accuracy.
- Reliable, High-Speed Performance:
Up to 500 mm/sec moving speed with ±0.02 mm repeatability.
- Industrial-Grade Components:
Features SHINANO Stepper Motors, HIWIN guide systems, ELATECH belt systems, and Omron sensors for long-lasting durability.
TECHNICAL SPECIFICATIONS
| TOKIMEKU Auto Soldering Station | |
| Temperature Control System | HAKKO FU-601 and FU-6002 |
| Motion System | 4-axis control (X, Y, Z, θ) |
| Axis Movement Range | X: 400 mm / Y: 400 mm / Z: 100 mm / θ: 360mm (Customisable) |
| Maximum Load | 15 kg |
| Moving Speed | 0-500 mm/sec |
| Repeatability Accuracy | ± 0.02 mm/axis |
| Program Memory Storage | Up to 100 Programs |
| Display Mode | LCD Teaching Box |
| Motor System | SHINANO Stepper Motor |
| Guide System | HIWIN |
| Belt System | ELATECH |
| Sensor System | OMRON |
| Input Power Supply | Full Voltage AC110V~220V |
| External Control Interface | RS232 |
| Dimension | 78 L x 87 W x 99 H cm |
| Weight | 64 kg |
| HAKKO FU-601 Soldering Unit | |
| Power Consumption | 300 W |
| Output Power | AC 29 V |
| Temperature Range | 50-500 °C |
| Temperature Stability | ± 5 °C |
| Dimension | 145 W x 107 H x 211 D mm |
| Weight | 4 kg |
| HAKKO FU-6002 Soldering Iron (L-type) | |
| Power Consumption | 260 W |
| Output Power | AC 29 V |
| Tip to Ground Resistance | < 2 Ω |
| Tip to Ground Potential | < 2 mV |
| Cord Length | 5 m |
| Total Length | 168 mm (with TX2-XD4 tip) |
| Weight | 134 g (with TX2-XD4 tip) 172 g (with TX2-XD4 tip and iron unit fixing assembly) |

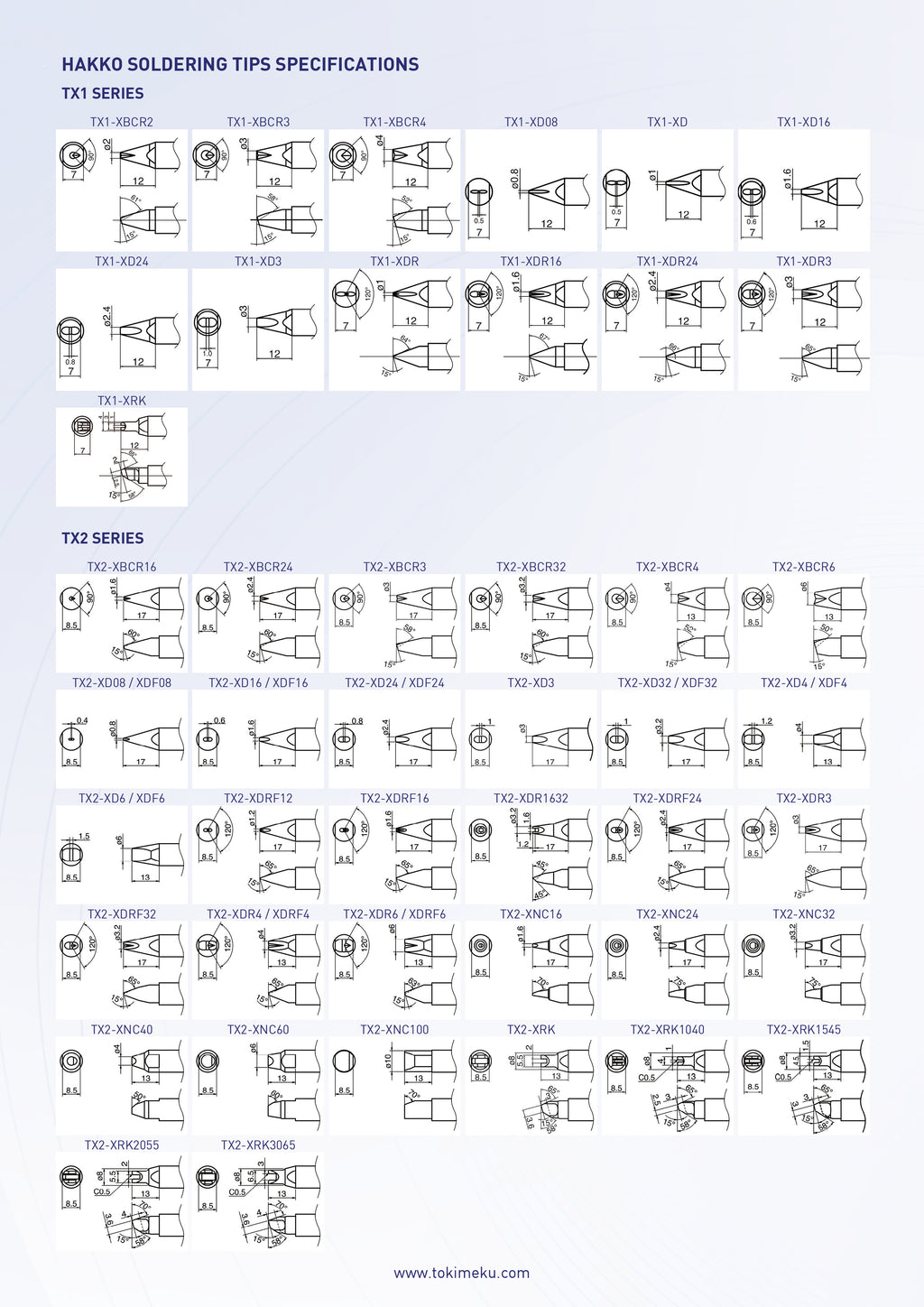

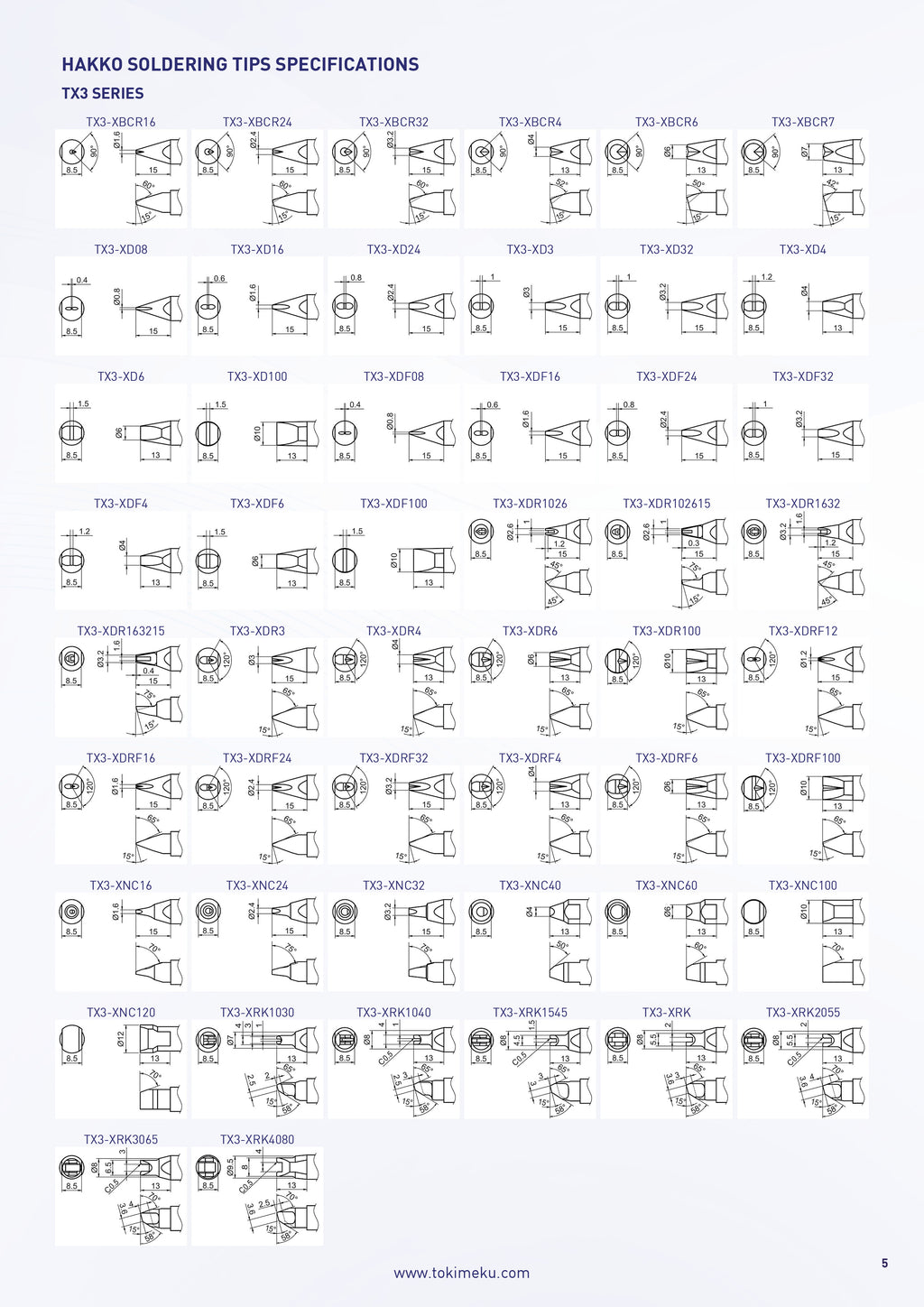

HAKKO SOLDERING TIPS
The Hakko FU-6002 Iron Unit is compatible with the TX-1 and TX-2 series soldering tips, designed for high-performance industrial soldering applications:
TX-1 Series (140W): Suitable for standard precision soldering tasks, providing stable temperature control and efficient heat transfer.
TX-2 Series (300W): Delivers higher thermal capacity, ideal for heavy-duty soldering, large thermal mass components, and applications requiring faster heat recovery.
Optional N2 component and parts are available for N2 soldering
WHY CHOOSE TOKIMEKU?
Increased Productivity: Automate processes for faster, more reliable output
Consistent Quality: Reduce human error, ensure repeatable high-quality results
Cost Savings: Minimize material waste and optimize labor costs.
Flexible Integration: Compatible with various production lines and custom workflows
Customisable: Bespoke solutions tailored to your production and requirements
GET STARTED TODAY!
Transform your soldering process with Tokimeku’s cutting-edge 4-Axis Auto Soldering Robot. Contact us today for a demo, pricing, or customization options.
📍 Visit Us: www.tokimeku.com
📞 Call: +65 6748 2277
📧 Email: sales@tokimeku.com
