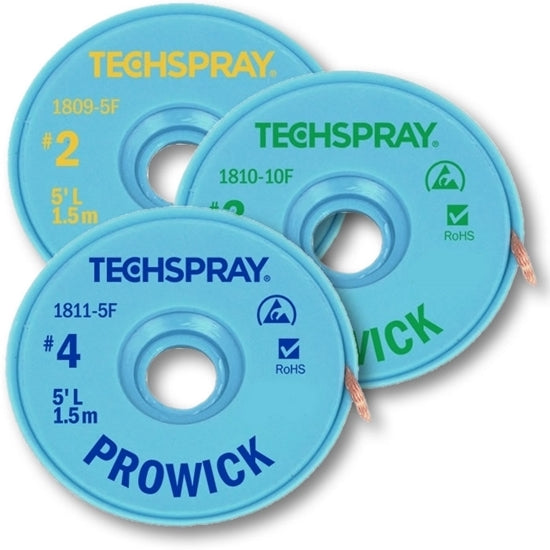

Techspray Pro Wick Desoldering Braid
1802 - 1813 (5ft / 1.5M long) - MOQ 25
*Also available in 10 ft, 25ft, 100ft & 500ft for selected models
| Braid No. | Color Code | Width (mm) |

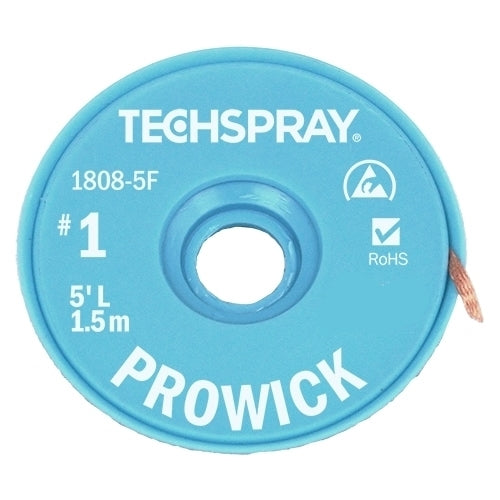

| #1 | White | 0.9 |
| #2 | Yellow | 1.4 |

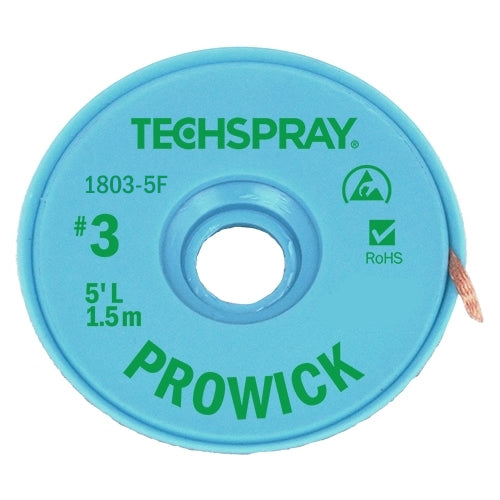

| #3 | Green | 1.9 |
| #4 | Blue | 2.5 |
| #5 | Brown | 3.3 |
| #6 | Red | 4.9 |
PRODUCT INFO
For the fastest wicking action, rosin flux coated braid is ideal for high volume PCB production/repair environments.
Desoldering braid or desoldering wick is a pre-fluxed copper braid that is used to remove solder, which allows components to be replaced and excess solder (e.g. bridging) to be removed. The soldering iron is applied to the wick as it sits on the solder joint, and when both are brought up to the solder's melting point, the flux is activated and, through capillary action from the braided design, solder is drawn up the wick. Techspray wick has been a mainstay at PCB rework, repair and prototyping stations for over 30-years.
Available in anti-static spools to prevent static build-up from damaging sensitive components.
FEATURES & BENEFITS
- Rosin flux coated Desoldering braid
- Fastest wicking action
- Exceeds MIL-F-14256, Type R
- Anti-static spool (except where indicated)
SPECIFICATIONS
Meets or Exceeds MIL-F-14256, NASA NHB 5300, 4 (34-1), NASA NPC 200-4, NASA SP5002, IPC Standard-J-STD-004
For more information, please review the Technical Data Sheet and Safety Sheet.
