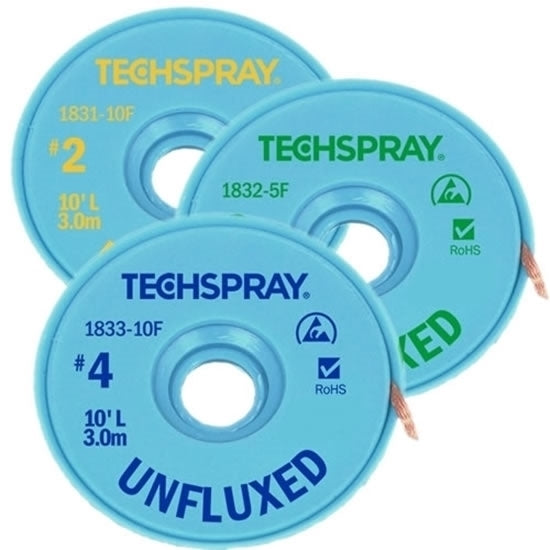

Techspray Unfluxed Desoldering Braid - MOQ 25

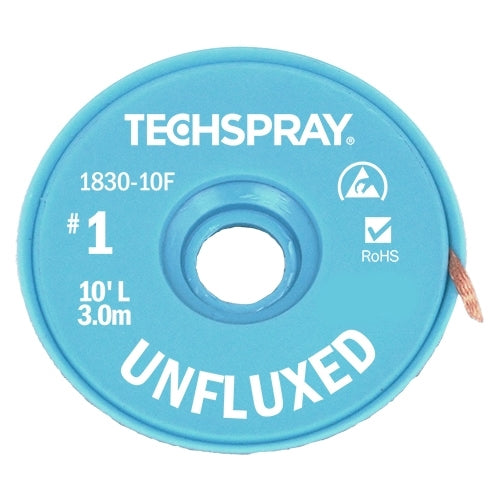

1830-10F (10ft / 3M long)

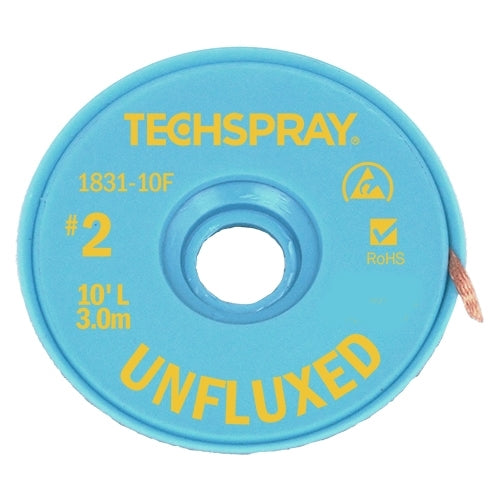

1831-10F (10ft / 3M long)

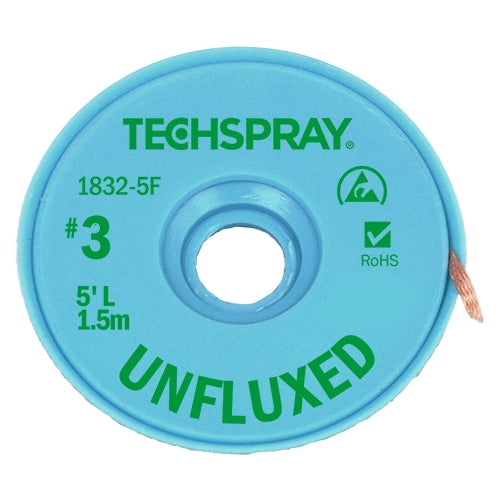

1832-5F (5ft / 1.5M long)

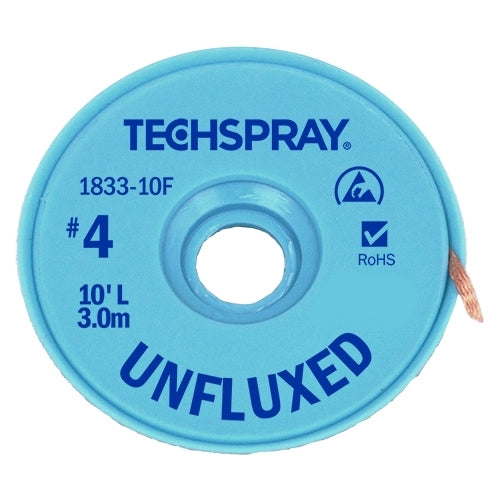

1833-10F (10ft / 3M long)
| Braid No. | Color Code | Width (mm) |
| #1 | White | 0.9 |
| #2 | Yellow | 1.4 |
| #3 | Green | 1.9 |
| #4 | Blue | 2.5 |
PRODUCT INFO
For customers who use water-soluble flux, or their own flux for aqueous processes.
Desoldering braid or desoldering wick is a pre-fluxed copper braid that is used to remove solder, which allows components to be replaced and excess solder (e.g. bridging) to be removed. The soldering iron is applied to the wick as it sits on the solder joint, and when both are brought up to the solder's melting point, the flux is activated and, through capillary action from the braided design, solder is drawn up the wick. Techspray wick has been a mainstay at PCB rework, repair and prototyping stations for over 30-years.
Desoldering braid or desoldering wick is a pre-fluxed copper braid that is used to remove solder, which allows components to be replaced and excess solder (e.g. bridging) to be removed. The soldering iron is applied to the wick as it sits on the solder joint, and when both are brought up to the solder's melting point, the flux is activated and, through capillary action from the braided design, solder is drawn up the wick. Techspray wick has been a mainstay at PCB rework, repair and prototyping stations for over 30-years.
FEATURES & BENEFITS
- Apply your own flux
- Ideal for aqueous fluxes
- Allows flux matching in process
- Exceeds MIL-F-14256
- Anti-static spools
SPECIFICATIONS
Meets or Exceeds MIL-F-14256; NASA NHB 5300, 4 (34-1); NASA NPC 200-4; NASA SP5002; 1821:HP 8690-0588; 1823: HP 8690-0577; IPC Standard-J-STD-004
For more information, please review the Technical Data Sheet and Safety Sheet.
Purchasing in bulk? Speak to our sales here.
