SRC-01 Surface Resistance Checker [Pre-Order]

SRC-01 Surface Resistance Checker [Pre-Order]

Regular price
$1,380.30
Sale price
$1,380.30
Regular price
Contact our Sales Team
Unit price
per
Tax included. Shipping calculated at checkout.

[This is a pre-order product and will take 8-12 weeks to arrive. Kindly view pre-order FAQs before purchasing.]

The SRC-01 Surface Resistance Checker is a handy surface resistance checker that facilitates the surface resistance measurement of floor, mat, desk and chair.

  • Press and hold the measurement button switch, and the measurement value appears on the display.
  • Automatic power off function is available.
  • Voltage can be switched to measure a broad range of resistance values.
  • Can measure temperature/humidity at the same time as the surface resistance value.
  • Supplied with proves to measure "point-to-point resistance", "resistance to ground" and "volume resistance".
  • Comes with a carrying case useful to carry all necessary items for measurement.

Product Spec

  • Dimensions: 190 x 101.5 x 54.7
  • Weight: 340g
  • Applied Voltage: 10V (R < 1.0 x 10 to the 6 ohm or ohm/sq), 100V ( R >= 1.0 x 10 to the 6 ohm or ohm/sq)
  • Power source: 9V DC (006 battery 1pce)
  • Measurement standard: IEC61340-4-1,JIS-C2170
  • Measurement range: 10 cubed ohm to 10 to the 12th power (ohm/sq)

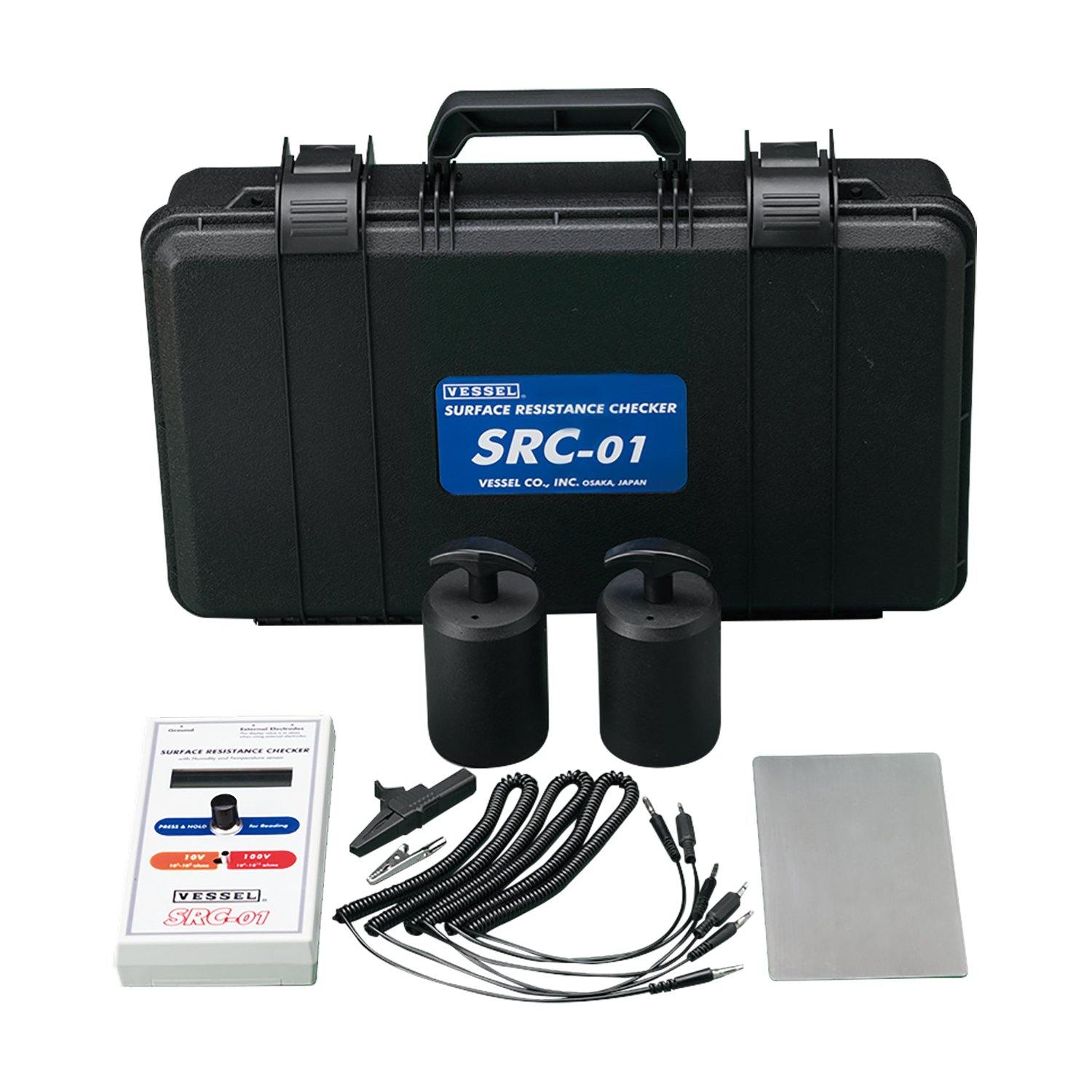

Contents

  • Probe(outer diameter: about Φ66mm, about 2.3 kg) : 2
  • Curled cord for a body grounding (banana plugs at both ends) : 1
  • Curled cord for measurement for the point-to-point resistance and resistance to ground (banana plug/mono plug) : 2
  • Crocodile clip: 1
  • Large crocodile clip : 1
  • Stainless plate(185mm x 100mm) : 1
  • Carrying case: 1
  • 9V battery (006P type: manganese dry battery) : 1
