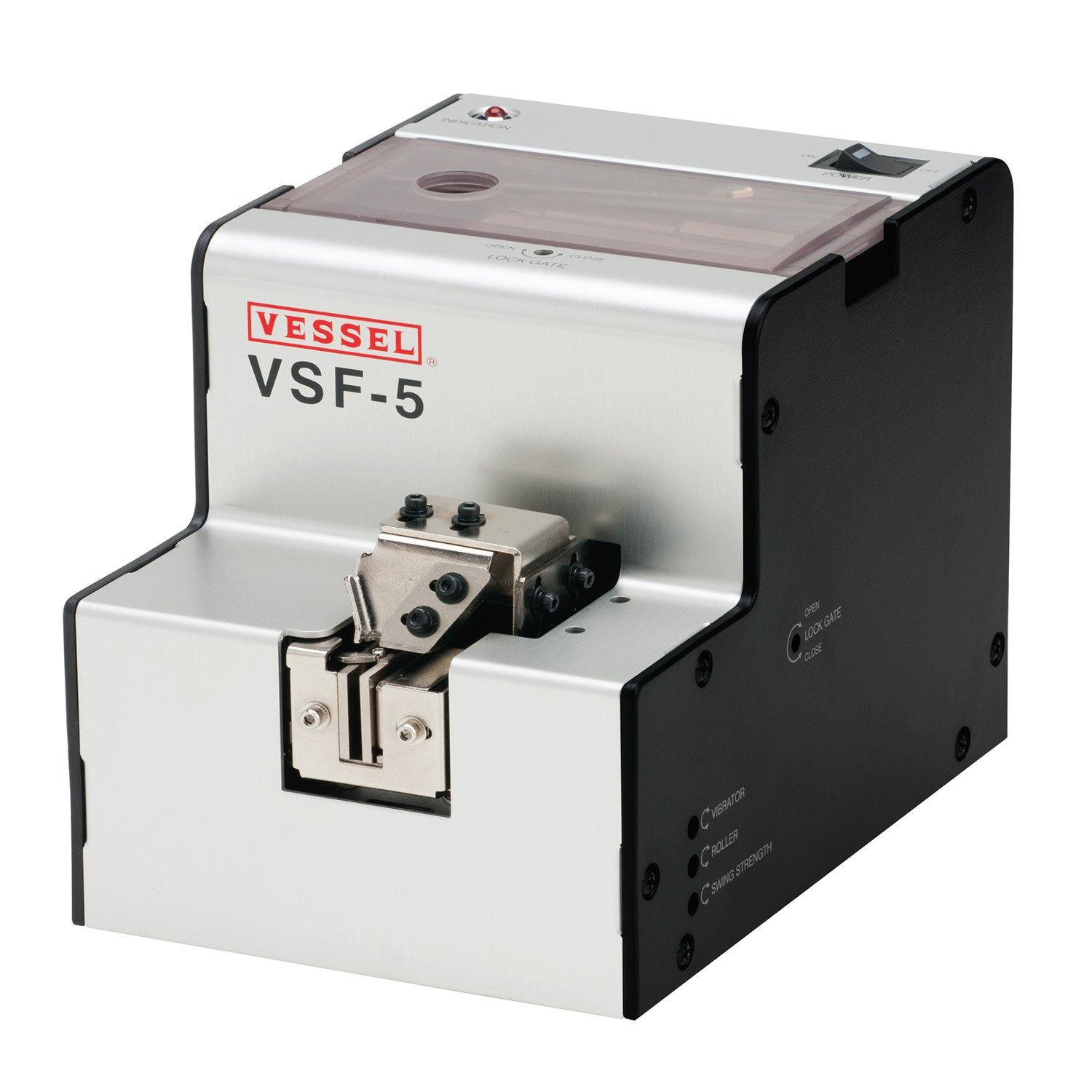

Vessel VSF-5 Screw Feeder
Accurately picks up precision small screws and thin-headed screws without fail
- Supports various screws from M1 to M5.
- Lightweight and compact, the small footprint only takes up 126 x 182 mm area.
- All required replacement parts are attached for changing supplied screws.
- By the sensor, it operates the drum rotation and vibration only when required. When in standby, the operation is stopped temporarily so it is quiet.
- Adaptable to screws such as counter sank screws, pan head screws, truss head screws, screws with washers.
- Limited to Indoor Installations
Download Brochure
Specifications
Vessel VSF-5 Screw Feeder
- Dimensions: 280 x 215 x 140 mm
- Applicable Small Screw: M1.0 to M5.0
- Rating: DC15V 0.7A
- Cable Length: 1.8 m
- Thread Length: 20 mm
- Screw Capacity: 200cc
- RoHS compliant
Packing List
Vessel VSF-5 Screw Feeder
- Stopper Form 1.0 to 2.0
- Form 2.3 to 5.0 1 each
- Rail width front section adjustment plate (mm): 70 x 90 x t0.8
- T1.0
- T1.2
- T1.5
- T2.0 plate 1 each
- Rail width rear section adjustment plate (mm): 20 x 10 x t0.2 plates 2pcs.
- 20 x 10 x t0.5 plates 10pcs.
- L-shape hexagon wrench H2 x 108mm 1pc.
- Grounding wire
- User manual
- AC adapter (AD15-VSF)180g
