Vessel VTM-8/10/100 Torque Meters

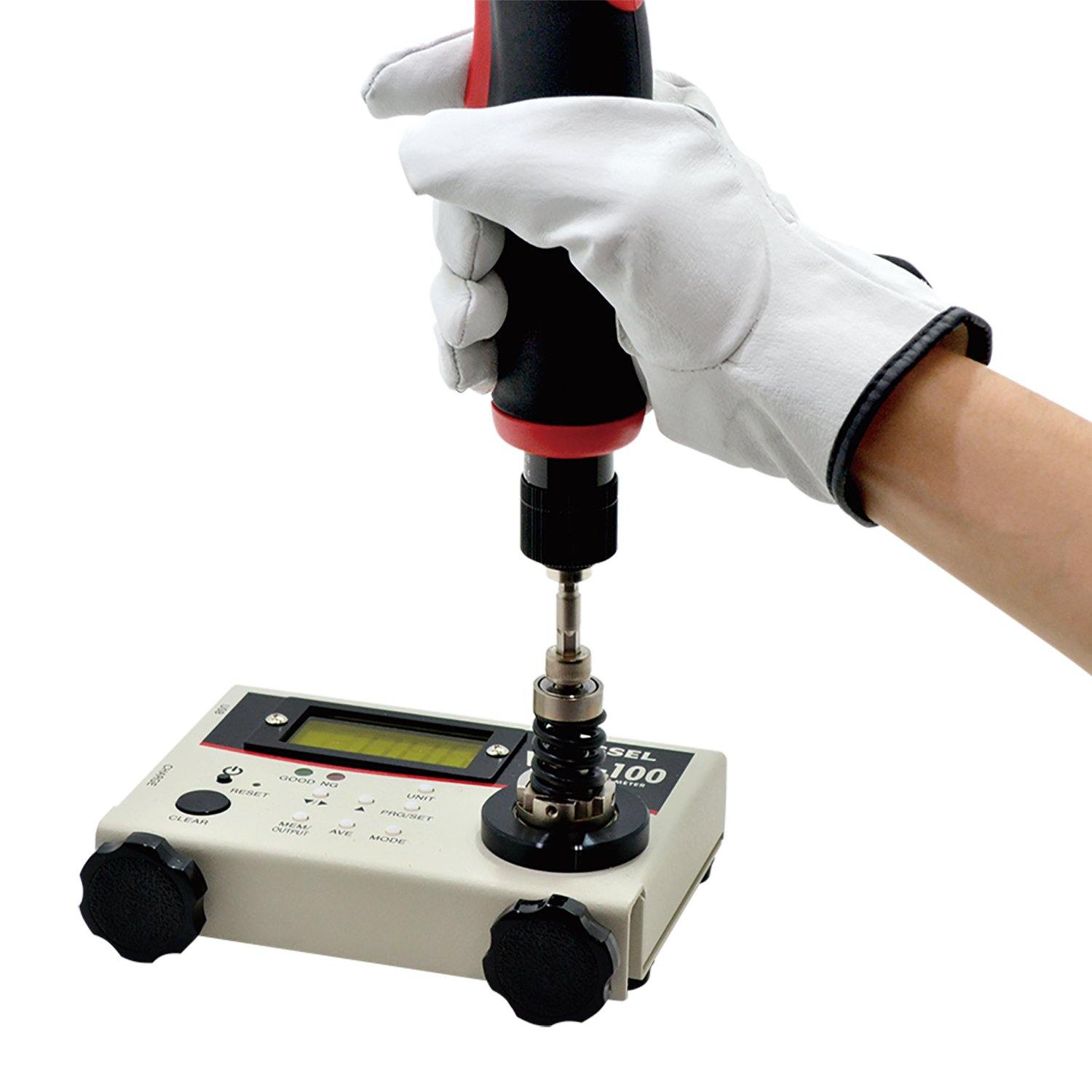

Perform daily torque checks with the VTM Torque Meters to ensure secure screw tightening.

• Torque accuracy within ±0.5% enables accurate torque measurement.
• Light and compact design, the main body is approximately 1kg.
• Rechargeable and Portable
• Capable of measuring both tightening and loosening directions.
• Automatic power off (power turns OFF after 10minutes of non-operation).
• Not to be used for impact type power tools.

Download Brochure

Product Specifications (VTM-8)

Vessel VTM-8 Torque Meter

• Dimension: 330 x 255 x 83 mm
• Cable Length: 1.5 m
• Power Supply: Nickel-Cadmium Battery 1.2V x 5 cells (700mAh)
• Charging Time: 3 hours (approx)
• Usage Time: 12 hours (max)
• Measurement Range: 0.002 to 0.8 N・m
• Precision: +/- 0.5% (+/- 3 digit below 499 digits)
• Unit Measurement: cN m/mN m
• Socket Outlet: 20 x 20mm (SQ9.5)
• Weight: 1000g
• Applicable: VE-1500(EPA), 2000EPA

Product Specifications (VTM-10)

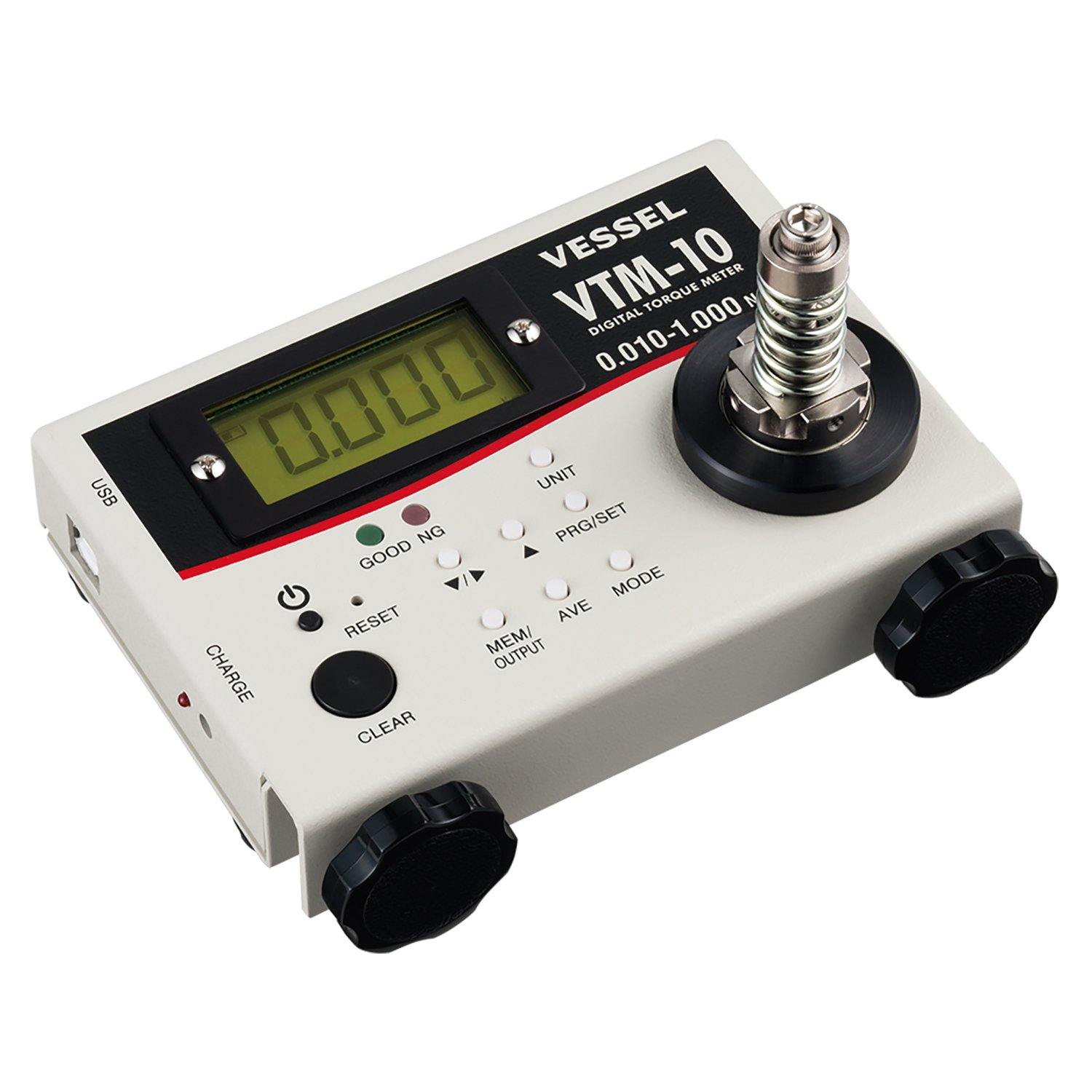

Vessel VTM-10 Torque Meter

• Dimension: 330 x 255 x 83 mm
• Cable Length: 1.5 m
• Power Supply: Nickel-Cadmium Battery 1.2V x 5 cells (700mAh)
• Charging Time: 3 hours (approx)
• Usage Time: 12 hours (max)
• Measurement Range: 0.01 to 1.0 N・m
• Precision: +/- 0.5% (+/- 1 digit below 199 digits)
• Unit Measurement: N m/cN m
• Socket Outlet: 20 x 20mm (SQ9.5)
• Weight: 1000g
• Applicable: VE-1500(EPA), 2000EPA, 3000

Product Specifications (VTM-100)

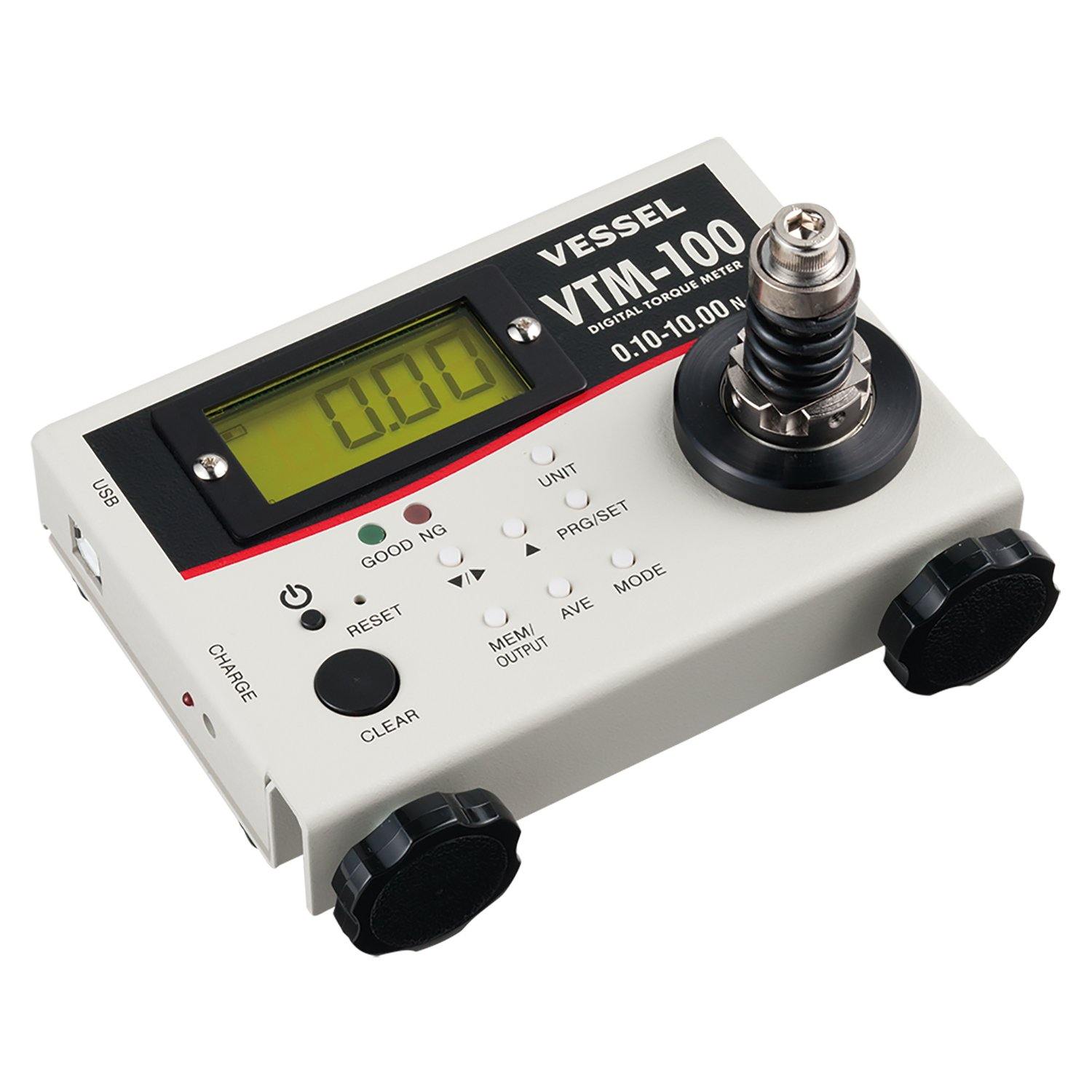

Vessel VTM-100 Torque Meter

• Dimension: 330 x 255 x 83 mm
• Cable Length: 1.5 m
• Power Supply: Nickel-Cadmium Battery 1.2V x 5 cells (700mAh)
• Charging Time: 3 hours (approx)
• Usage Time: 12 hours (max)
• Measurement Range: 0.1 to 10.0 N・m
• Precision: +/- 0.5% (+/- 1 digit below 199 digits)
• Unit Measurement: N m/cN m
• Socket Outlet: 20 x 20mm (SQ9.5)
• Weight: 1000g
• Applicable: VE-4000(P, AC, PAC), 4500(P, HS4, AC, PAC), 5000(P, DL5, R, SOP), 6000(P, DL5, R, SOP)

Packing List (VTM-8)

Vessel VTM-8 Torque Meter

• Torque adapter VJ-3
• H5mm
• Four types of H5mm bit 1 each
• AC adapter (input 100 to 240 VAC, 50/60 Hz, 0.3A output 12 VDC, 0.5A)
• Test Results
• Proof of Calibration
• Traceability System Diagram
• User manual

Packing List (VTM-10)

Vessel VTM-10 Torque Meter

• Torque adapter VJ-3
• VJ-10
• H5mm
• Four types of H5mm bit 1 each
• AC adapter (input 100 to 240 VAC, 50/60 Hz, 0.3A output 12 VDC, 0.5A)
• Test Results
• Proof of Calibration
• Traceability System Diagram
• User manual

Packing List (VTM-100)

Vessel VTM-100 Torque Meter

• Torque adapter VJ-10K
• VJ-50
• H6mm
• Four types of H6mm bit 1 each
• AC adapter (input 100 to 240 VAC, 50/60 Hz, 0.3A output 12 VDC, 0.5A)
• Test Results
• Proof of Calibration
• Traceability System Diagram
• User manual
