This listing includes Connecting Cable, Iron Holder, and Heat Resistant Pad. For the handpiece only, click here.
Click here to shop compatible tips for the FM-2022.
Product Info
The Hakko FM-2022 SMD Hot Tweezers (Parallel Remover) uses revolutionary parallel action between the tip ends (one tip remains stationary) allowing greater surface contact between the tip and the component and providing more efficient and even heat transfer.
For use with FM-206, FM-203 OR FM-202 (discontinued) Soldering Stations only.
Features
- Unique parallel movement of tips allows easy removal of SMD chips and flat packs up to 25mm.
- Direct heating prevent damage to neighboring components on high density board.
- ESD safe by design
Whether removing small chips or larger SOP components, the parallel action of the FM-2022 also allows for a more secure hold onto the component.
- Parallel Remover uses the same quick-change composite tip technology as the popular FM-206, FM-203 or FM-202 soldering station
- Fixing collar properly aligns the tips opposite each other
- Changing tips for different types of components has never been easier.
- Sleep holder allows the handpiece to be put to sleep when not in use, which helps reduce oxidation buildup and extend tip life (Sleep function available with FM-203 ONLY)
Note:Tips/Tweezers not included
Specifications
Packing List:

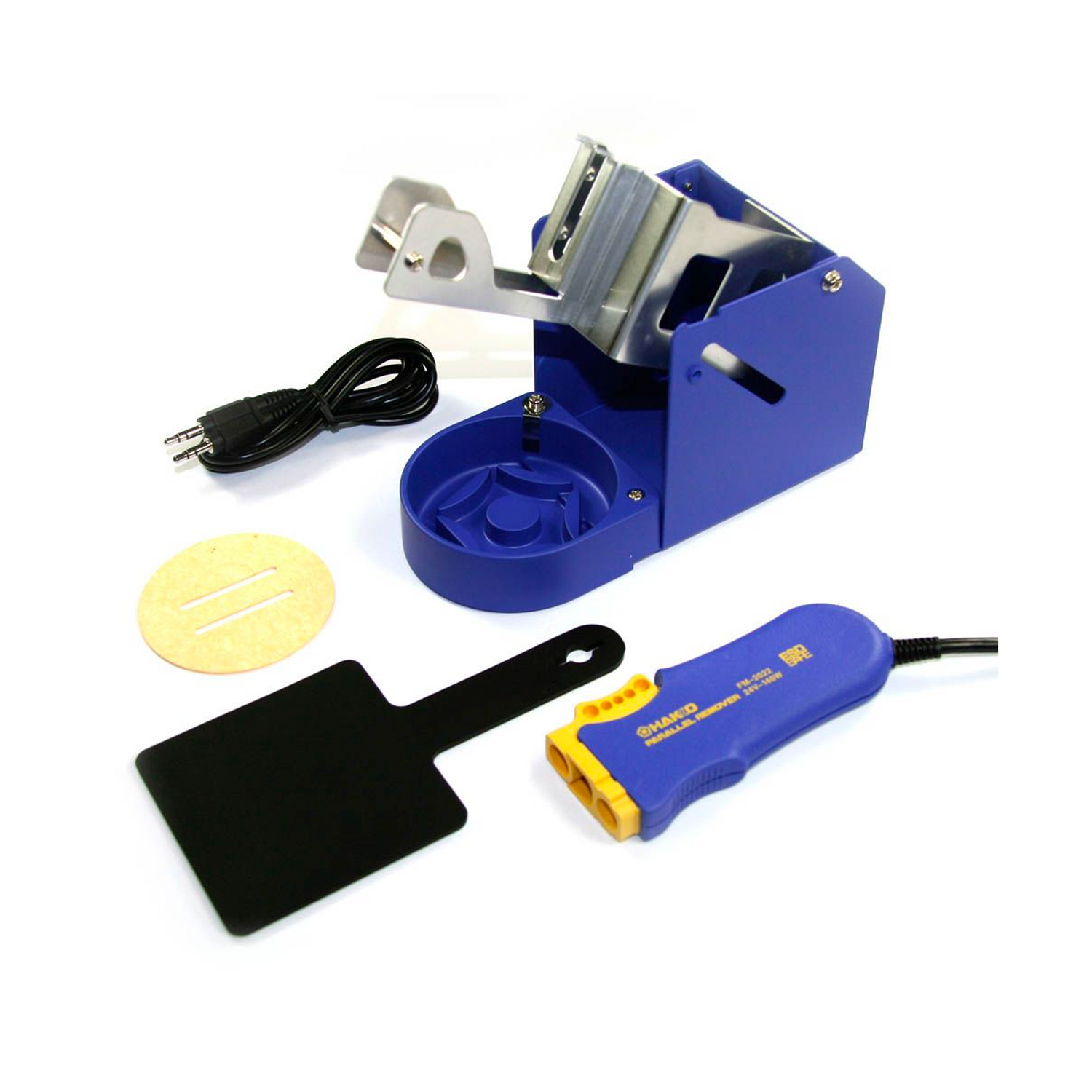

- FM2022-04: Connecting Cable, Iron Holder, Hot Tweezers (Parallel Remover), Heat Resistant Pad, Instruction Manual
- Note: Soldering Station and tip/tweezers to be purchased separately
| Model Name | FM-2022 |
| Part Number | FM2022-04 |
| Power Consumption | 140W (24V) |
| Temperature Range | 200°C - 400°C (400°F - 750°F) |
| Temperature Accuracy | ±15°C (±27°F) of set temperature |
| Temperature Stability | ±5°C (±9°F) at idle temperature |
| Tip to Ground Resistance | < 2 ohms |
| Tip to Ground Potential | < 2mV (Typical 0.6mV) |
| Cord Assembly | 1.2m (4 ft.) |
| Total Length (w/o Cord and Tip) | 110mm (4.3 in.) |
| Total Weight (w/o Cord) | 53g (Handpiece) 11g (SOP 25L Tip only) |
Packing List
| Description | Part No. |
| Handpiece | FM2022-04 |
| Heat resistant pad | B2300 |
| Sleep Holder w/ Sponge | FH200-03 |
| Connector Cable | B3253 |
| Tips not included | ----- |
Accessories
Soldering Tips
For the HAKKO FM-2022, soldering iron tips are not supplied as accessories. Please purchase soldering iron tips separately.
- T8 Series for Asia, Japan, Oceania & Other countries.
- T16 Series for North America & EU.
| T8 Series | |
| Chip | T8-1001 0.5I T8-1002 0.5C T8-1003 1L T8-1004 2L T8-1013 3L |
| SOP | T8-1005 6L T8-1006 8L T8-1007 10L T8-1008 13L T8-1009 16L T8-1010 20L T8-1011 25L T8-1012 18L |
| Part Number | Product Name |

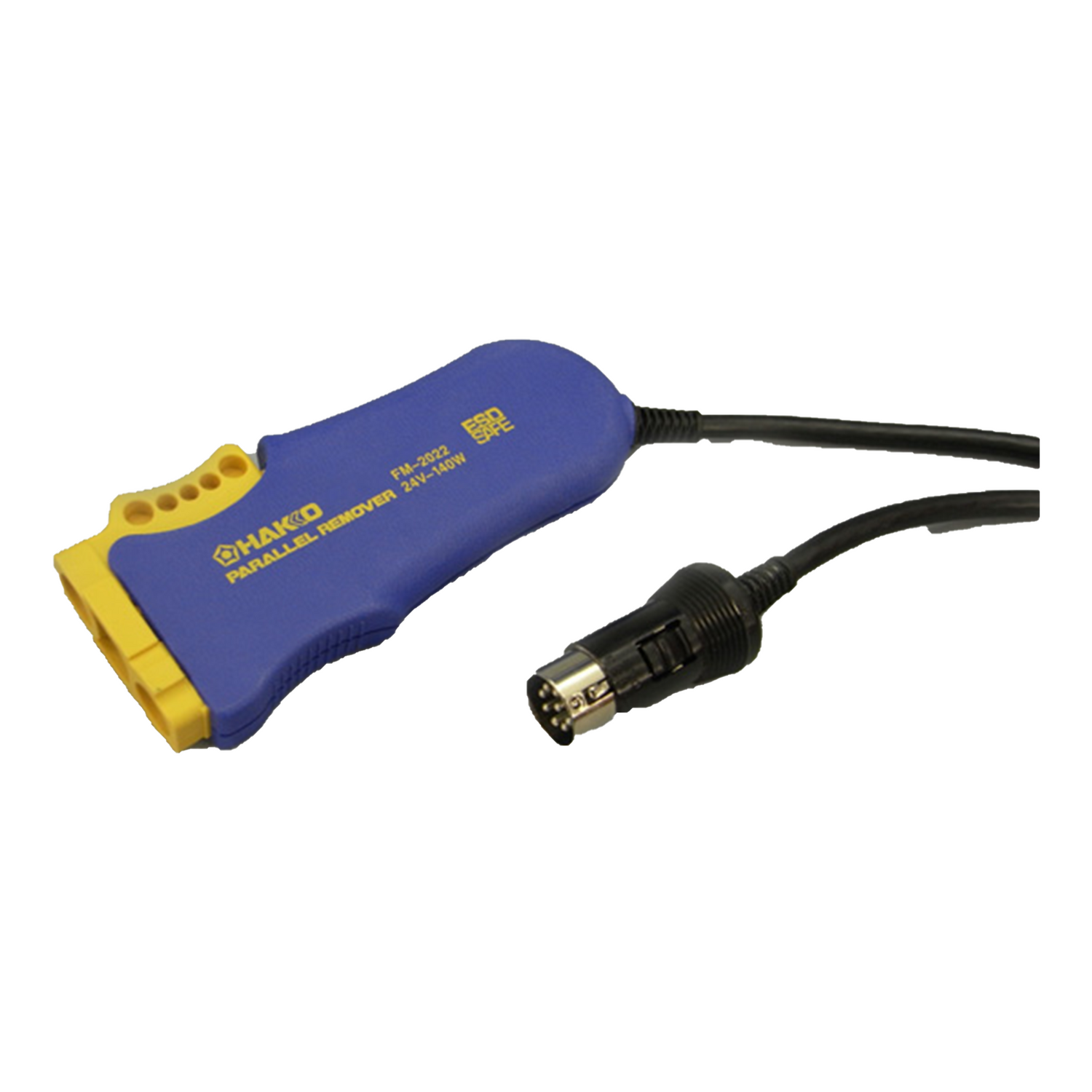

| FM2022-02 | Hot Tweezers (Handpiece only) |
| FH200-03 | Iron Holder with Cleaning Sponge and Power Save Function |
| B3411 | Holder Assembly with screw for FH200-03 |
| A1519 | Yellow Cleaning Sponge (Replaces A1536) |
| A1536 | Green Cleaning Sponge (discontinued) |
| B3253 | Connecting Cable |
| B2300 | Heat Resistant Pad |
| 599B-02 | Tip Cleaner (with Wire Sponge) |
