Hakko Products
FM-2027 Soldering Iron / Conversion Kit 230V
Availability: Pre-Order | Lead Time: 8-12 Weeks
Couldn't load pickup availability
Click here to shop compatible tips for FM-2027. *Soldering Tips/Nozzles not included. To be purchased separately
Soldering iron in lock-type sleeve assembly, compatible with FM-202 (Discontinued), FM-203, FM-204 and FM-206.
Please refer to the User Manual for detailed specifications.
Packing List
*Soldering Tips/Nozzles not included. To be purchased separately

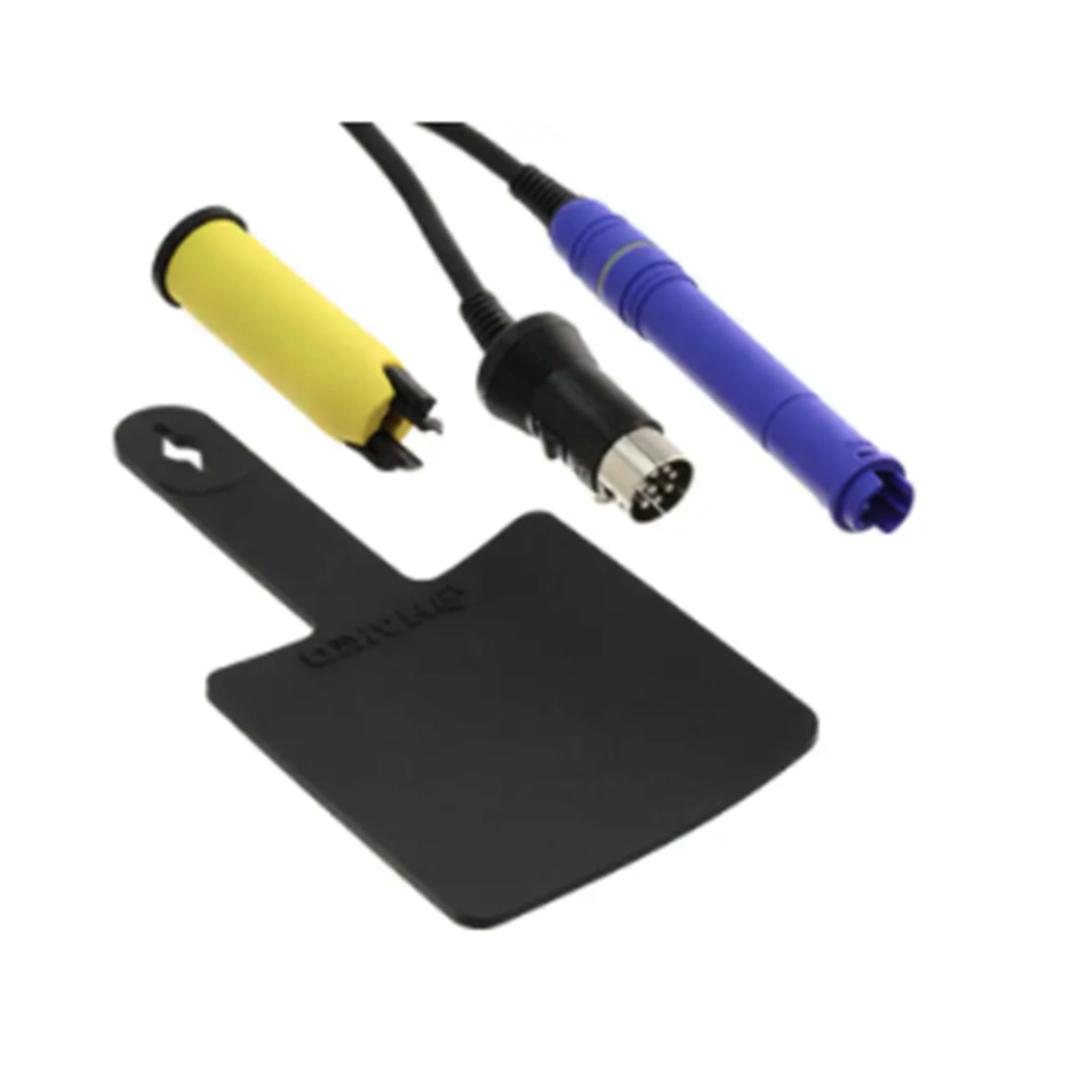

| FM2027-01 | Part No. |
| Sleeve Assembly (yellow) | B3216 |
| Connector Assembly | FM2027-02 |
| Heat Resistant Pad | B2300 |

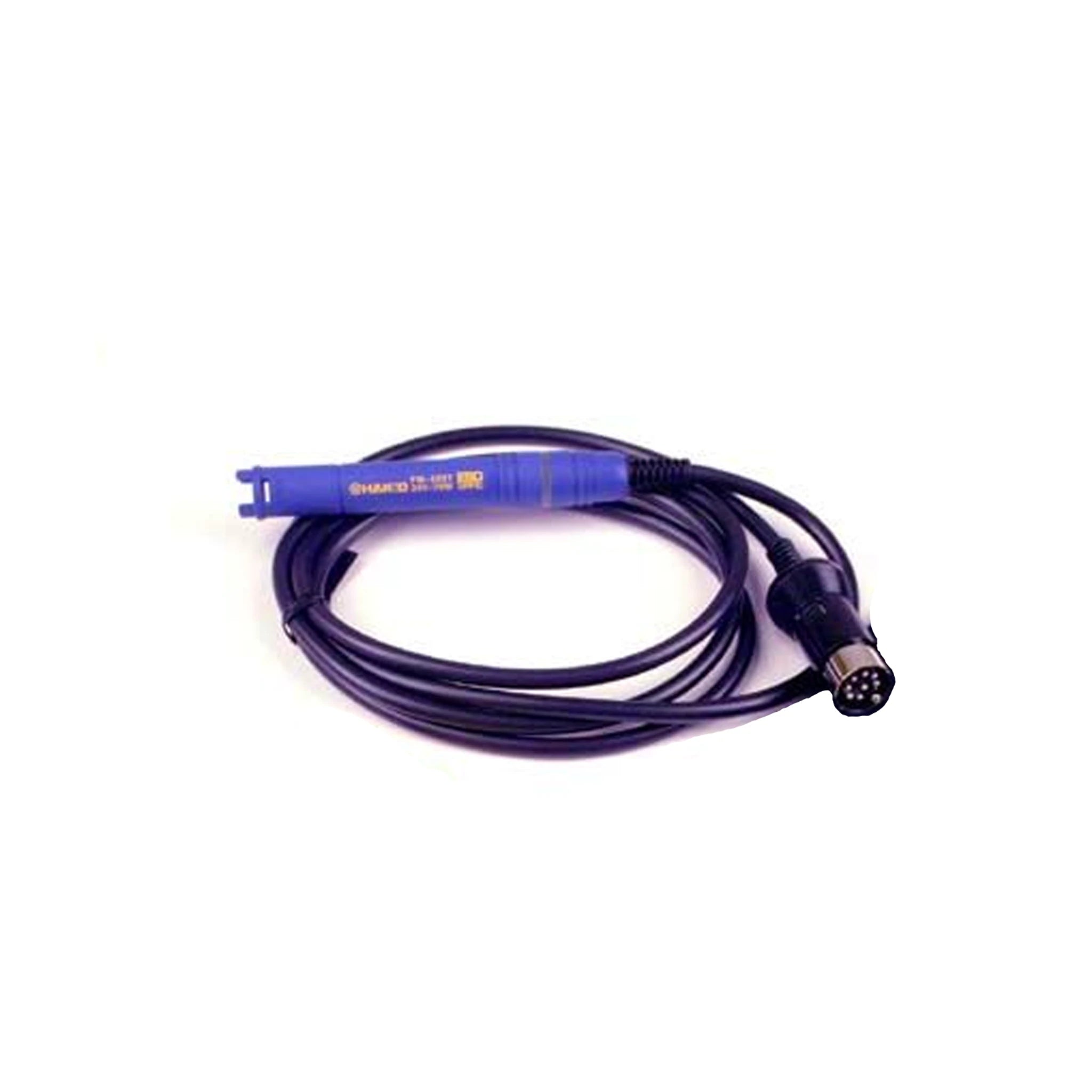

| FM2027-02 | Part No. |
| Connector Assembly | FM2027-02 |

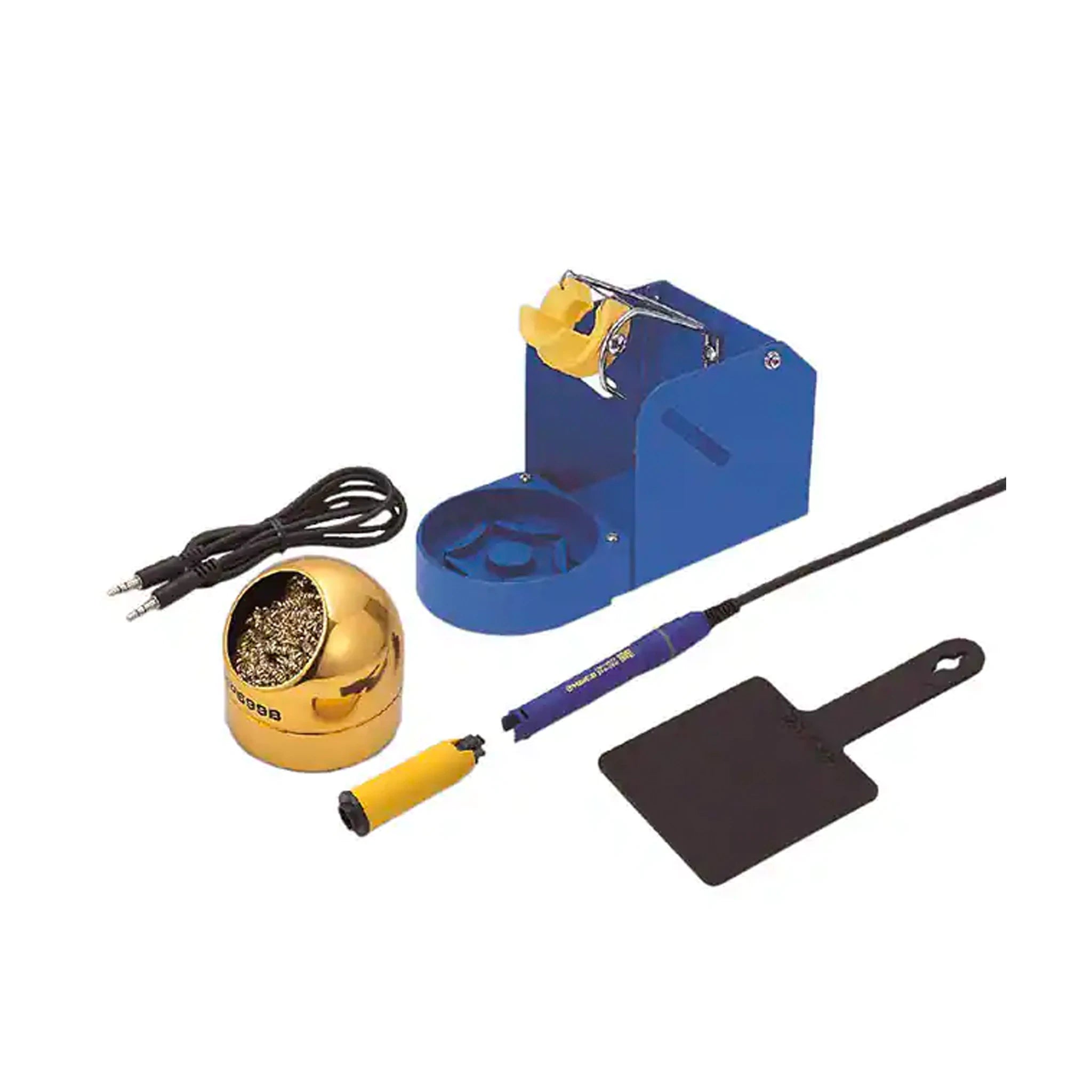

| FM2027-03 | Part No. |
| Sleeve Assembly (yellow) | B3216 |
| Connector Assembly | FM2027-02 |
| Heat Resistant Pad | B2300 |
| Connecting Cable | B2353 |
| Iron Holder with 599B | FH200-01 |
Features
Easy removal of sleeve assembly and tip
Simply press down on the lock release button and pull the sleeve assembly out! Both the sleeve assembly and soldering tip comes out easily for quick removal or tip change.
Easy and secure tip insertion
When the tip is inserted into the sleeve assembly, you should hear a 'click' sound. This means that the tip has been inserted securely.
Sleeve color variation
An addition of the green sleeve assembly to the current yellow, orange and blue allows the user to assign the color to a specific tip shape or size, making it easy to identify while working with multiple soldering irons.
Specifications
- Power consumption: 70W (24V)
- Temperature range: 200 to 450ºC
- Tip to ground resistance: <2Ω
- Tip to ground potential: <2mV
- Heating element: Composite heater
- Cord length: 1.2m
- Total length: 188mm (with 2.4D tip, without cord)
- Weight: 30g (with 2.4D tip, without cord)
Accessories
Soldering Tips (T12 Series)
Soldering tips are not sold together with FM-2028. Kindly purchase them separately.
- T12 Series for Asia, Japan, Oceania and all other countries
- T15 Series for North America and EU
Replacement Parts
| Part Number | Product Name |
| B3215 | Connector Cover |
| FH200-01 | Iron Holder with Cleaning Wire and Power Save Function |
| B2791 | Retaining Clip |
| 599B-02 | Tip Cleaner (Metal Wire Sponge) |
| 599-029 | Cleaning Wire |
| B2353 | Connecting Cable |
| B2300 | Heat Resistant Pad |
| B3216 | Yellow Sleeve Assembly |
| B3217 | Orange Sleeve Assembly |
| B3218 | Blue Sleeve Assembly |
| B3219 | Green Sleeve Assembly |
| A1519 | Cleaning Sponge (Replaces A1536) |
