FM-2030 Heavy Duty Soldering Iron Handpiece / Conversion Kit 230V
Availability: Pre-Order | Lead Time: 8-12 Weeks
Couldn't load pickup availability

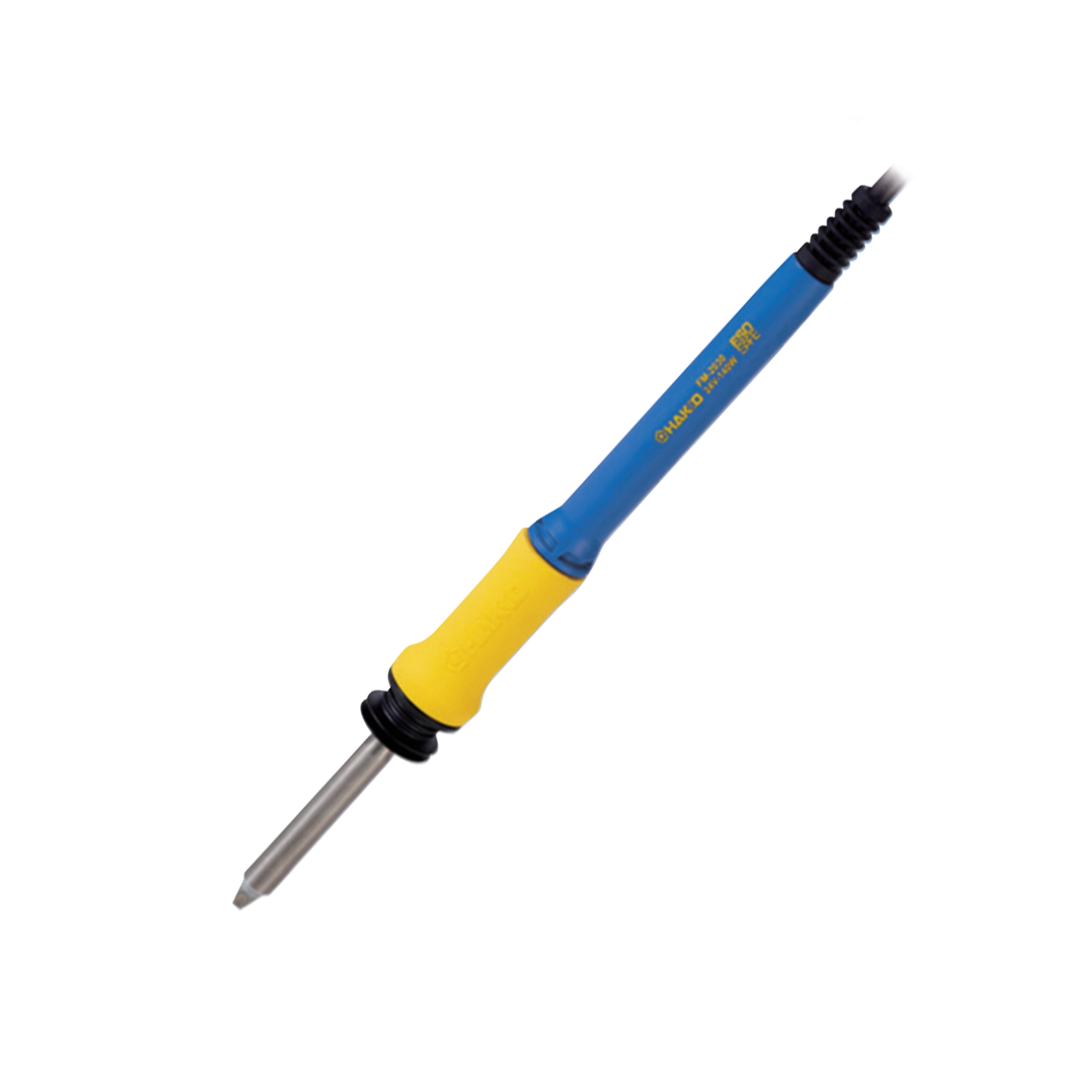

HEAVY DUTY SOLDERING IRON
The Hakko FM-2030 Soldering Iron provides a higher mass tip with double the power of conventional tips. This iron is ideal for soldering difficult-to-solder heavy ground planes and/or high heat sink applications.
- High powered 140W soldering iron with high heat capacity
- Best suited for soldering of power-supply boards, heat sinks, shield cases and coaxial cables
- Also applicable for multilayer boards with micro components
Please refer to the User Manual for detailed specifications.
Features
Compatible with the Hakko FM-203 soldering station and FM-206 rework system
High-powered 140W soldering iron with high heat capacity.
Composite-type soldering iron which has an iron tip with a built-in heater. Features the versatility to enable the soldering of a variety of components ranging from large scale components such as power supply boards, heat sinks, shield cases and coaxial cables, which require a high amount of heat, to micro components mounted on multilayer boards.
Ergonomic Design
While providing high heat capacity, the grip is thin and easy to hold, exactly as the FM-2027, and provides two design features that protect users' hands from high radiation heat.
16 types of tips are available (T22 Series - not included).
This lineup enables soldering of components of various sizes ranging from micro to large components.
Working characteristics comparison graph. High-powered soldering iron also contributes to reductions in production time.
IMPORTANT. PLEASE READ:
The FM-2030 can only be attached to the Hakko FM-203 "D" port, and the Hakko FM-206 CH2 or CH3 ports. If you attach the iron to any other port, a grip error or connector error (C-E) will occur.
Packing List
|
FM2030-01 Handpiece Only |
Part No. |
| Handpiece | FM2030-01 |
|

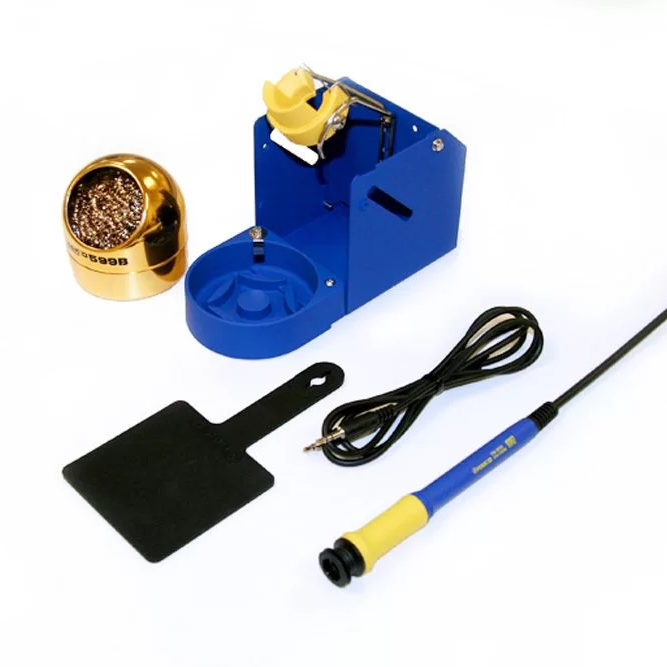

FM2030-04 Conversion Kit |
Part No. |
| Handpiece | FM2030-01 |
| Iron Holder with 599B | FH200-01 |
| Connecting Cord | B3253 |
| Heat Resistant Pad | B2300 |
| Instruction Manual | - |
Specifications
| Model | FM-2030 |
| Part No. |
FM2030-01 |
| Power Consumption | 140W / 24VAC |
| Tip to Ground Resistance | <2 ohms |
| Leak Voltage | <2mV |
| Total Length (w/o cord) | 224mm (8.8 in.) |
| Weight (w/o cord) | 41g (1.4oz) |
| Cord | 1.3m (4.3 ft.) |
| Tips |
T22 Series (not included) |
Accessories
Soldering Tips
For the HAKKO FM-2030, soldering iron tips are not supplied as accessories. Please purchase "T22 Series" soldering iron tips separately.
T22 Series. Shape B/C/D/J/K
Replacement Parts
|
Part No. |
Name |
|
HAKKO FM-2030 conversion kit |
|
|
FM2030-01 |
Soldering iron FM-2030 |
|
B3687 |
Nipple |
|
B2578 |
O-ring |
|
Iron holder <w/ cleaning wire> |
|
|
Retaining clip |
|
|
HAKKO 599B tip cleaner |
|
|
Cleaning wire |
|
|
Connecting cable |
|
|
Heat resistant pad |
