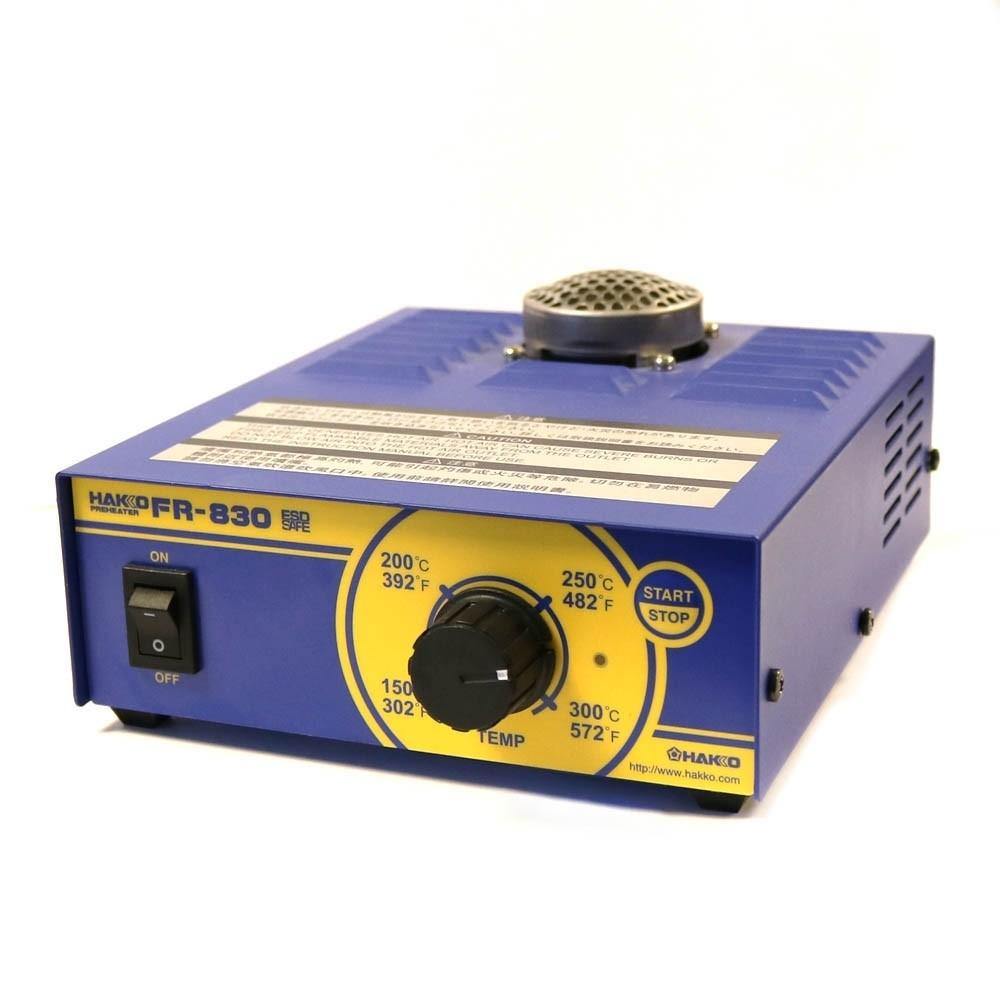

FR830-09 Pre-heater 230V

Compact pre-heater with quick start-up and excellent heat recovery.

• Compact pre-heater best suited for heat processing on localized areas
• Featuring quick heatup and less variations in temperature
• Best suited for pre-heating of multi-layer PWBs

Features

1. Temperature regulating function

• Temperature range 150-300°C(302-572°F)
• CAL enables fine adjustment of temperature.

2. Preheating in short time

• The improved air outlet shorten preheat time compared with air conventional product.
• Hot air temperature 300ºC
• A gap between the hot air outlet and the PWB for 10mm
• Attach sensors to top/under sides of P.W.B and measure temperature.

3. Suitable for multi-layer board preheating.

4. Automatic cool-down function mounted.

• Pushing the "START/STOP" button at the end of work automatically activates the cool-down function.

5. Compact, lightweight, and slightly larger hot air outlet.

6. Controlling the temperatures of Hot Air Rework System and workpiece using the Temperature Probe

• Measure temperatures of Hot Air Rework System and workpiece using the Temperature Probe for Hot Air Rework System (No. C1541) and thermometer (HAKKO FG-100/HAKKO FG-101B) to protect the workpiece.

Specifications

Model No. FR-830

• Power consumption 250W (230V)
• Air flow: 0.15m3/min. (fan capability)
• Temperature range: 150 to 300ºC (Above the blow exit)
• Dimensions:140(W) × 75(H) × 185(D) mm
• Weight: 0.75kg

* Weight (w/o cord)

* Height(H) is the distance from bottom of the feet to the top of the hot air outlet.

Packing List

Unit, Power cord, Instruction manual
