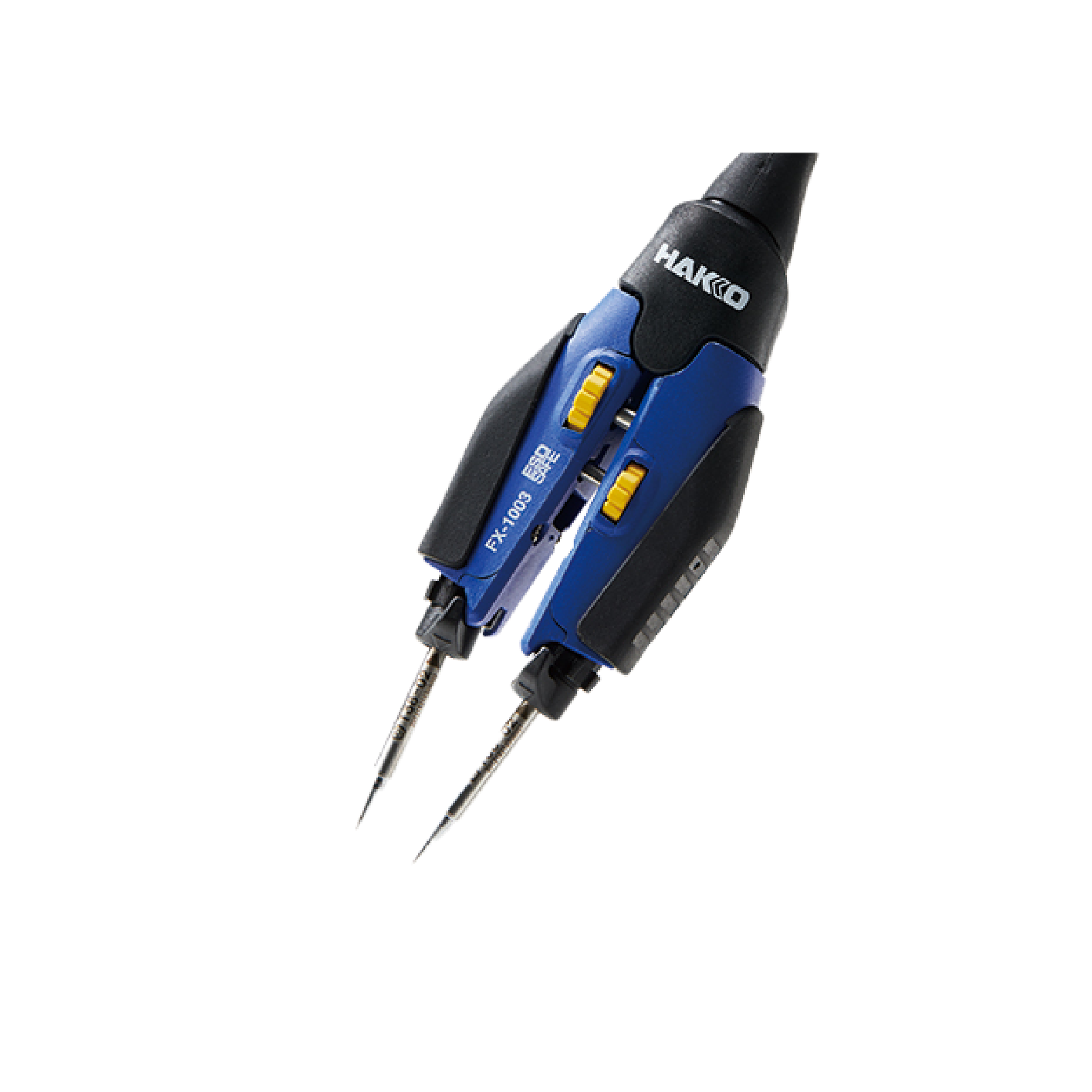

FX-1003 IH Micro Hot Tweezers / Conversion Kit
Availability: Pre-Order | Lead Time: 16 - 24 Weeks
Couldn't load pickup availability
FX-1003, the World's Smallest Class "IH Micro Hot Tweezers" that Makes Rework on 0402 Easy and Comfortable.
- HAKKO's IH soldering station provides the world best class thermal performance.
- 4 types of alignment to secure the right contact of tips and micro components
- Ergonomic design for comfortable operation
- Micro and precise tip lineup for a variety of rework
- Multifunctional iron holder for convenience and comfort
Please refer to the User Manual for detailed specifications.
Click here to shop compatible soldering tips for the FX-1003.
Packing List
| Packing List |
Part No. |

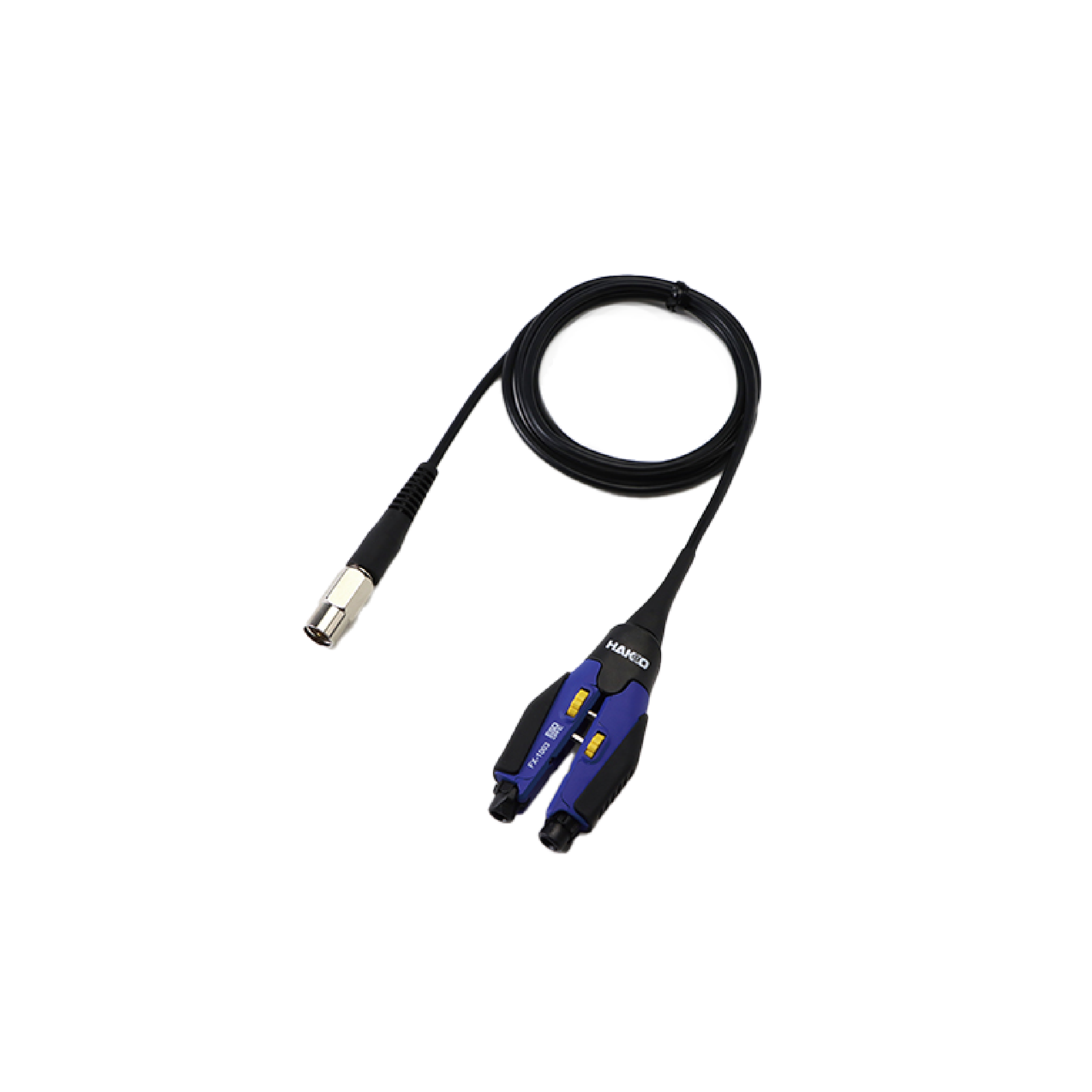

| Unit (Handpiece only) | FX-1003-81 |

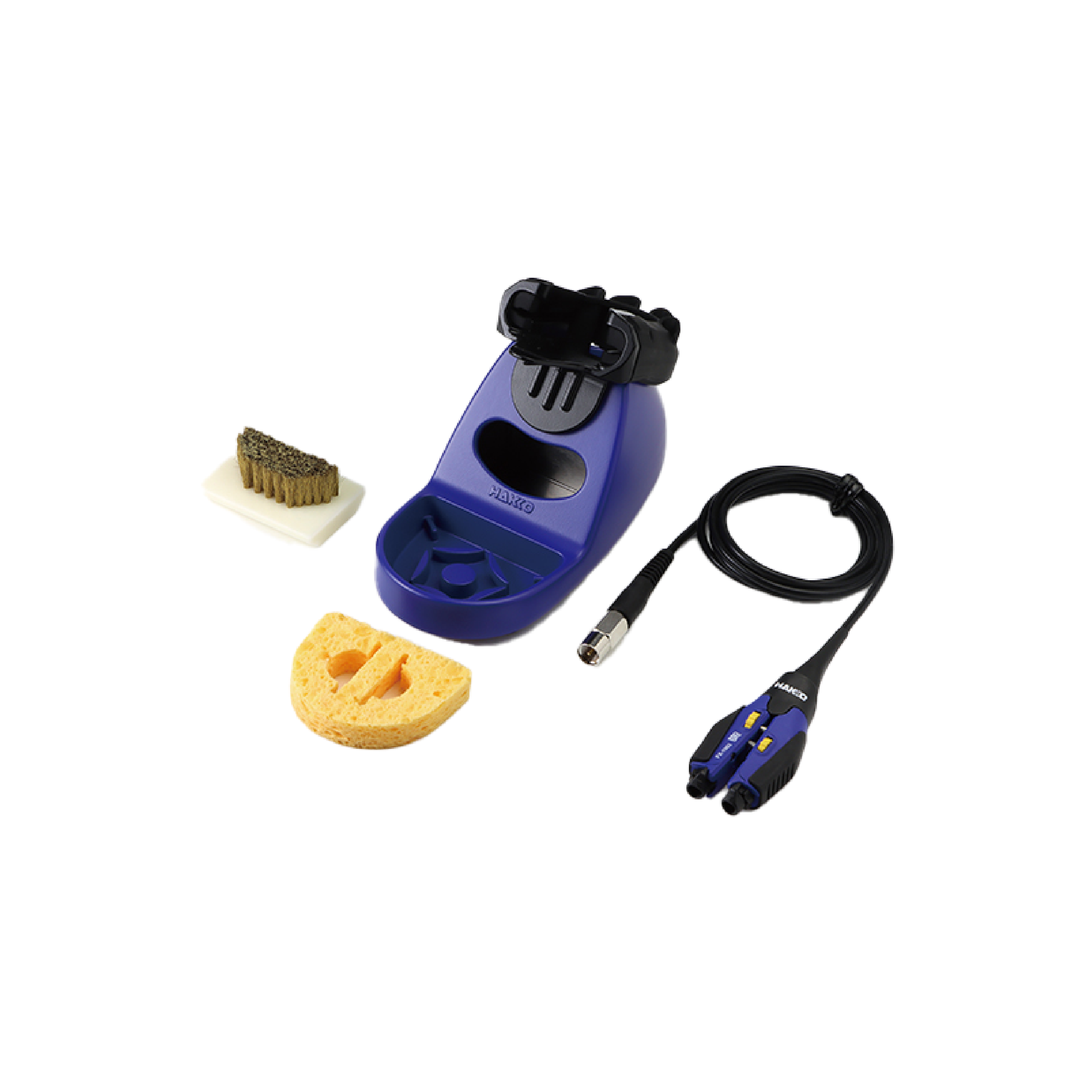

| Packing List |
Part No. |
| Unit | FX-1003-82 |
| Iron holder | FH800-83BY |
| Cleaning brush | A5065 |
| Cleaning sponge | A5038 |
| Instruction Manual | - |
Features
Unique Features of HAKKO's IH Technology (PATENTED）
"Power Assist Function" makes HAKKO's IH Soldering Station different.
- By monitoring RF output, the station detects tip temperature drop during the soldering process and then increases the output.
- This function minimizes tip temperature drop and helps the temperature recover quickly. As a result, it can improve soldering efficiency and quality.
"BOOST Mode" for Extra Power
- The mode is to boost tip temperature slightly.
- It can fill out the slight temperature gap among tips and minimize the individual differences in tip temperature. Also it is useful when some extra power is needed.
Excellent thermal performance
- The excellent thermal performance is achieved by the principle of IH (High-Frequency Induction Heating) that directly heats a soldering tip.
- The thermal power that does not decline even with a smaller tip is very effective in micro soldering.

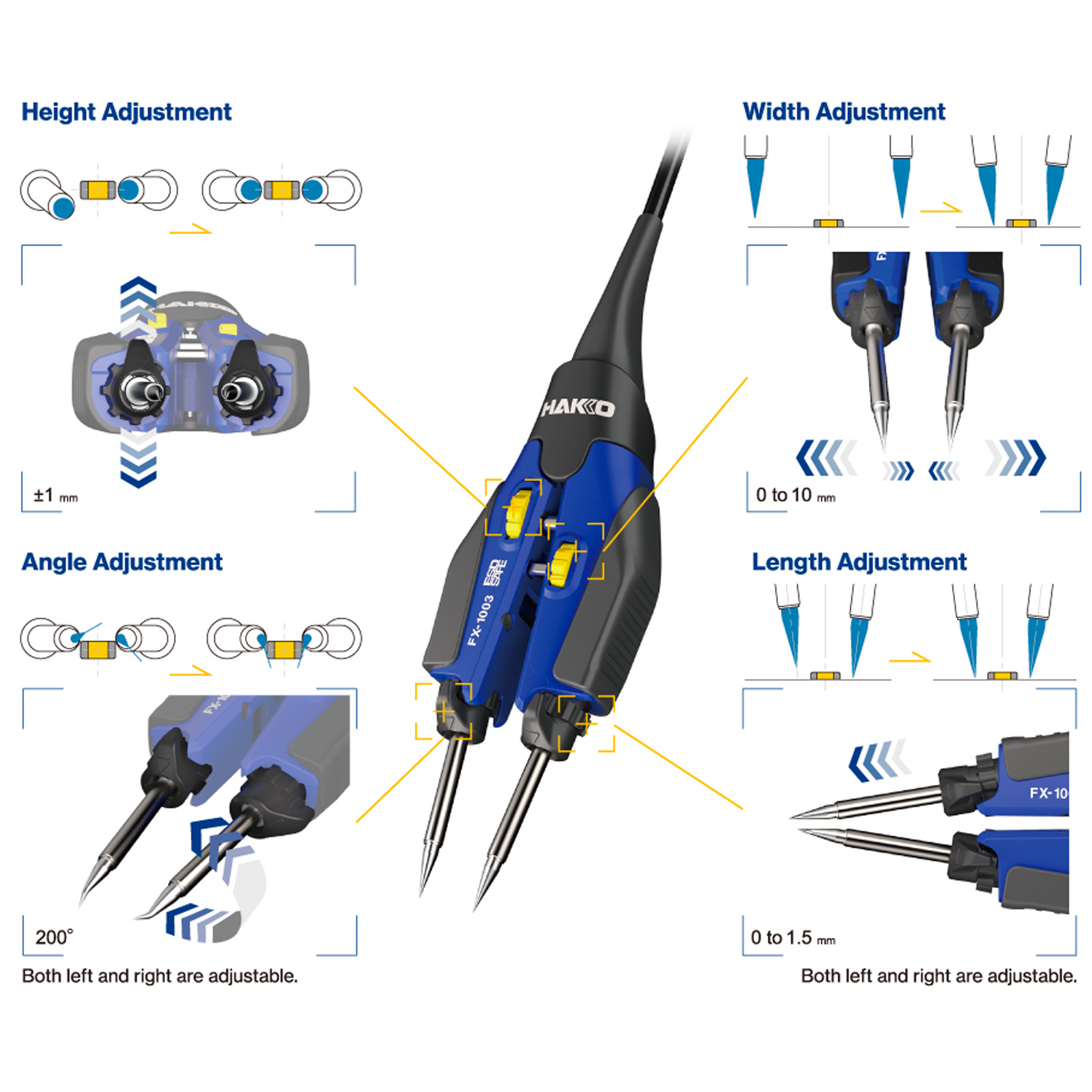

Four Types of Alignment to Secure the Right Contact of Tips and Micro Components
- The right contact of tips and components increases heat transfer, and it improves work efficiency.
Ergonomic Design for Comfortable Operation
- The handpiece with the compact and asymmetric design with heat-resistant covers fits the hand, gives better stability, helps reduce the burden of operation, and supports precise and accurate works.
Micro and Precise Tip Lineup for a Variety of Rework
- The lineup of T38 series tips has a wider range than the tips for conventional tweezers and has tips to rework on 0402 components.
Multifunctional Iron Holder for Convenience and Comfort
- Iron Holder with the AUTO SLEEP / AUTO SHUTOFF Function
IH Soldering Station with Excellent Thermal Performance
- No Temperature Setting Required
Tip temperature is fixed by tip series. No setting temperature is required before use. Because there is no heating element, there is no chance of degradation of a heating element, and no calibration is required.
- No Overshoot
Because tip temperature is fixed by a physical phenomenon, there is no chance of overshoot.
Specifications
|
Model No. |
FX1003-81/FX1003-82 |
| Temperature Range | T38-02 Series: 400℃, T38-03 Series: 350℃ |
|---|---|
| Weight | 32g (with T38-02D1) |
| Tip to ground resistance | <2Ω |
| Tip to ground potential | <2mV |
| Heating element | IH (High-Frequency Induction Heating) |
| Standard tip | T38 Series |
| Cord length | 1.3m |
| Total length | 130mm (with T38-02D1) |
| Weight | 32g (with T38-02D1) |
* Total length and weight (w/o cord)
Soldering Tips
| T38 Series |
|
Shape I For 350°C
For 400°C
|
|
Shape J For 350°C
For 400°C
|
|
Shape K For 350°C
For 400°C
|
|
Shape L For 350°C
For 400°C
|
Replacement Parts
|
Name |
Specifications |
|
| FX1003-82 | HAKKO FX-1003 conversion kit | With Iron Holder |
| FX1003-81 | Hot tweezers handpiece FX-1003 | |
| FH800-83BY | Iron Holder | With cleaning sponge and cleaning brush For FX-1003 |
| A5065 | Cleaning Brush | For FH-800 |
| A5038 | Cleaning Sponge | Yellow |
| A5064 | Iron Cover | For FX-1003 |
*The HAKKO FX-100 temperature controller only is not available for separate purchase. Please contact your local distributor/dealer for the part number of complete set of FX-100.
