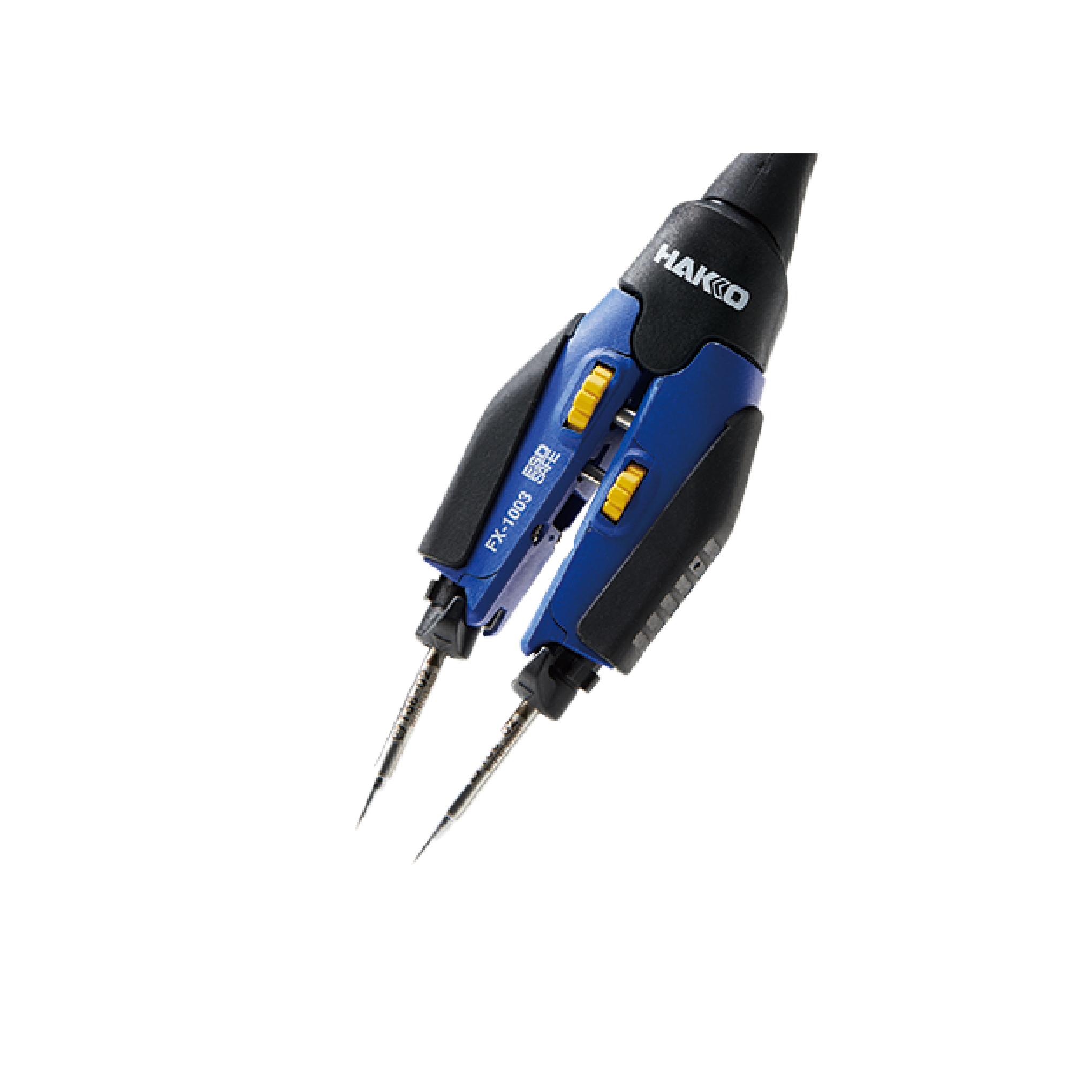

FX-1003 IH Micro Hot Tweezers / Conversion Kit

FX-1003, the World's Smallest Class "IH Micro Hot Tweezers" that Makes Rework on 0402 Easy and Comfortable.

• HAKKO's IH soldering station provides the world best class thermal performance.
• 4 types of alignment to secure the right contact of tips and micro components
• Ergonomic design for comfortable operation
• Micro and precise tip lineup for a variety of rework
• Multifunctional iron holder for convenience and comfort

Please refer to the User Manual for detailed specifications.

Click here to shop compatible soldering tips for the FX-1003.

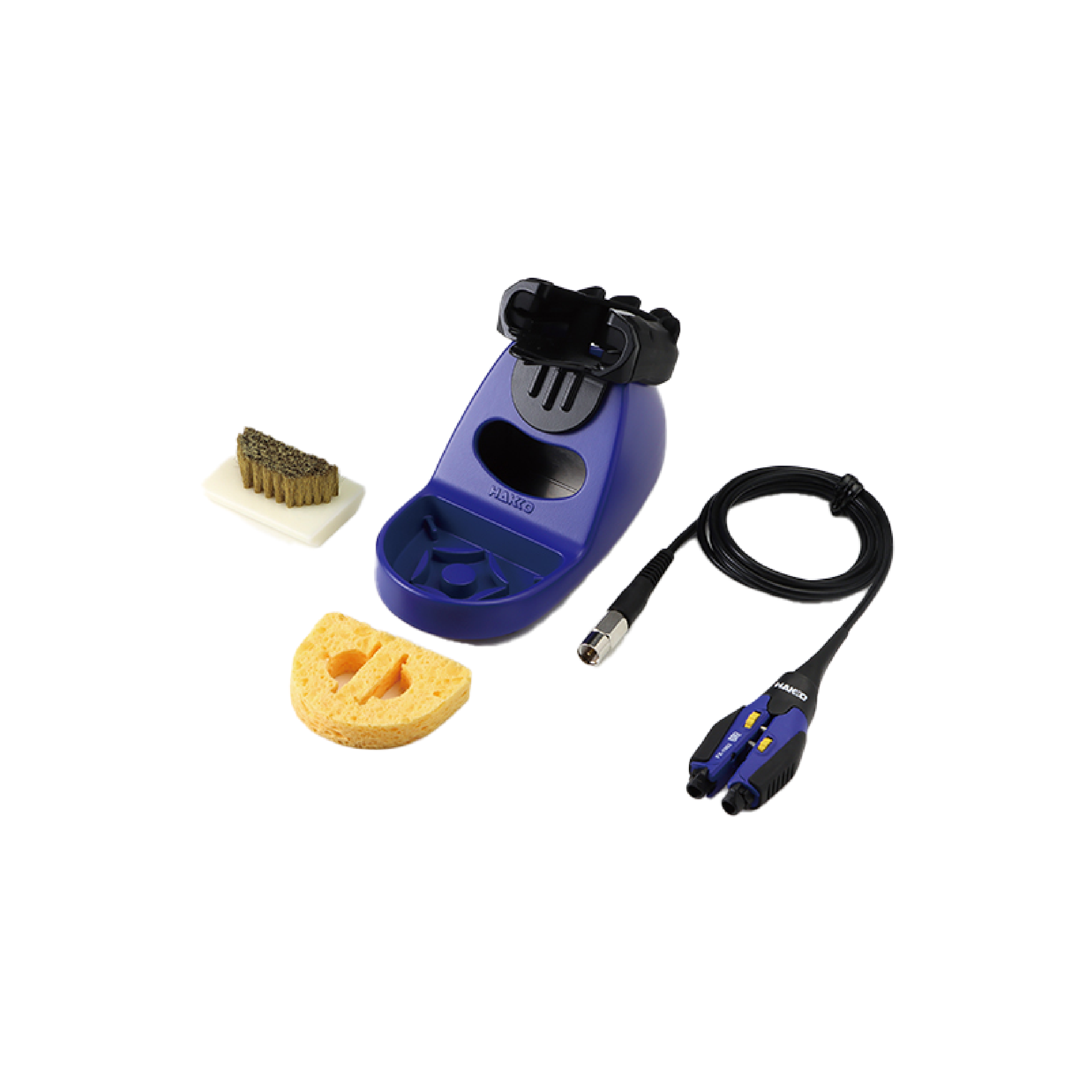

Packing List

Features

Unique Features of HAKKO's IH Technology (PATENTED）

"Power Assist Function" makes HAKKO's IH Soldering Station different.

• By monitoring RF output, the station detects tip temperature drop during the soldering process and then increases the output.
• This function minimizes tip temperature drop and helps the temperature recover quickly. As a result, it can improve soldering efficiency and quality.

"BOOST Mode" for Extra Power

• The mode is to boost tip temperature slightly.
• It can fill out the slight temperature gap among tips and minimize the individual differences in tip temperature. Also it is useful when some extra power is needed.

Excellent thermal performance

• The excellent thermal performance is achieved by the principle of IH (High-Frequency Induction Heating) that directly heats a soldering tip.
• The thermal power that does not decline even with a smaller tip is very effective in micro soldering.

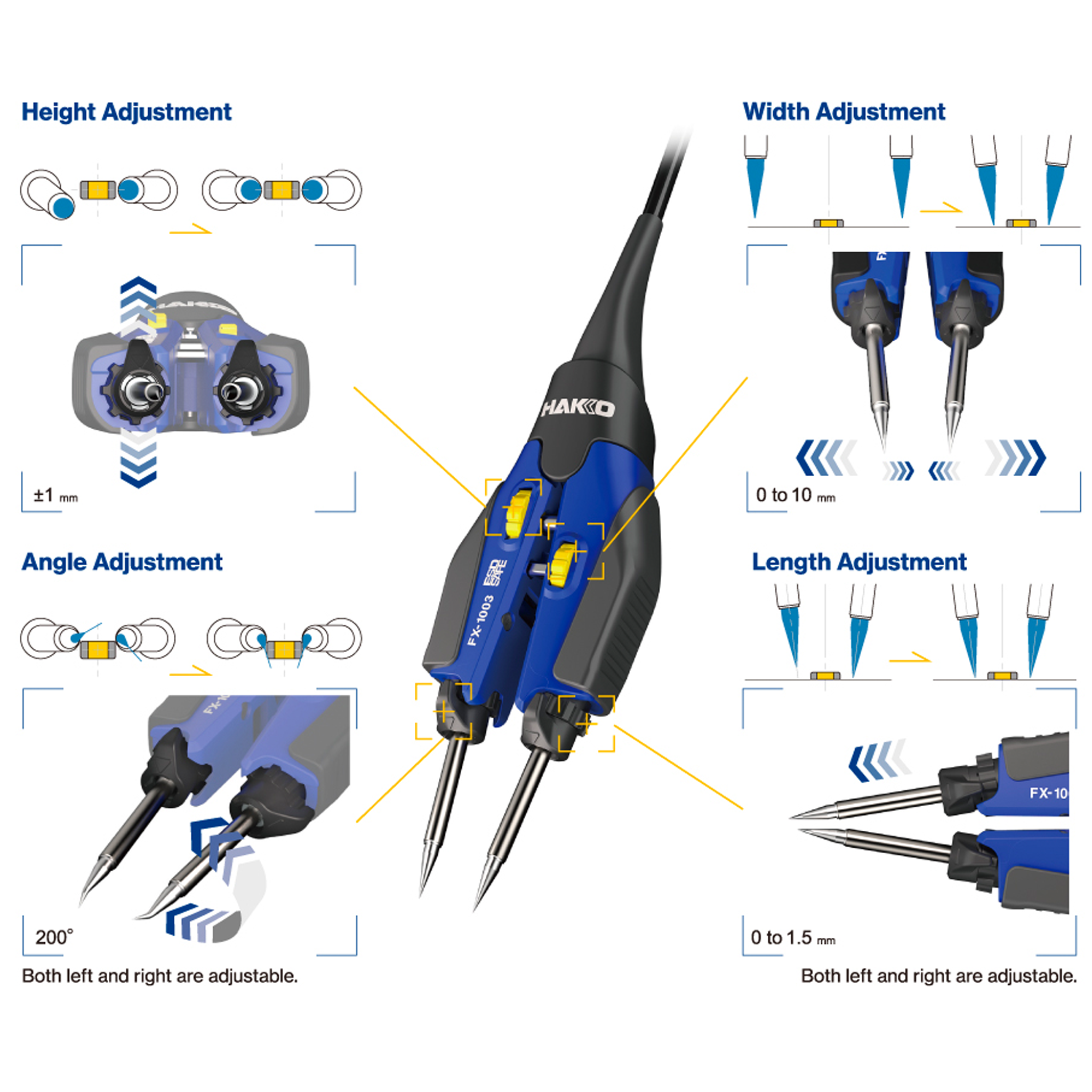

Four Types of Alignment to Secure the Right Contact of Tips and Micro Components

• The right contact of tips and components increases heat transfer, and it improves work efficiency.

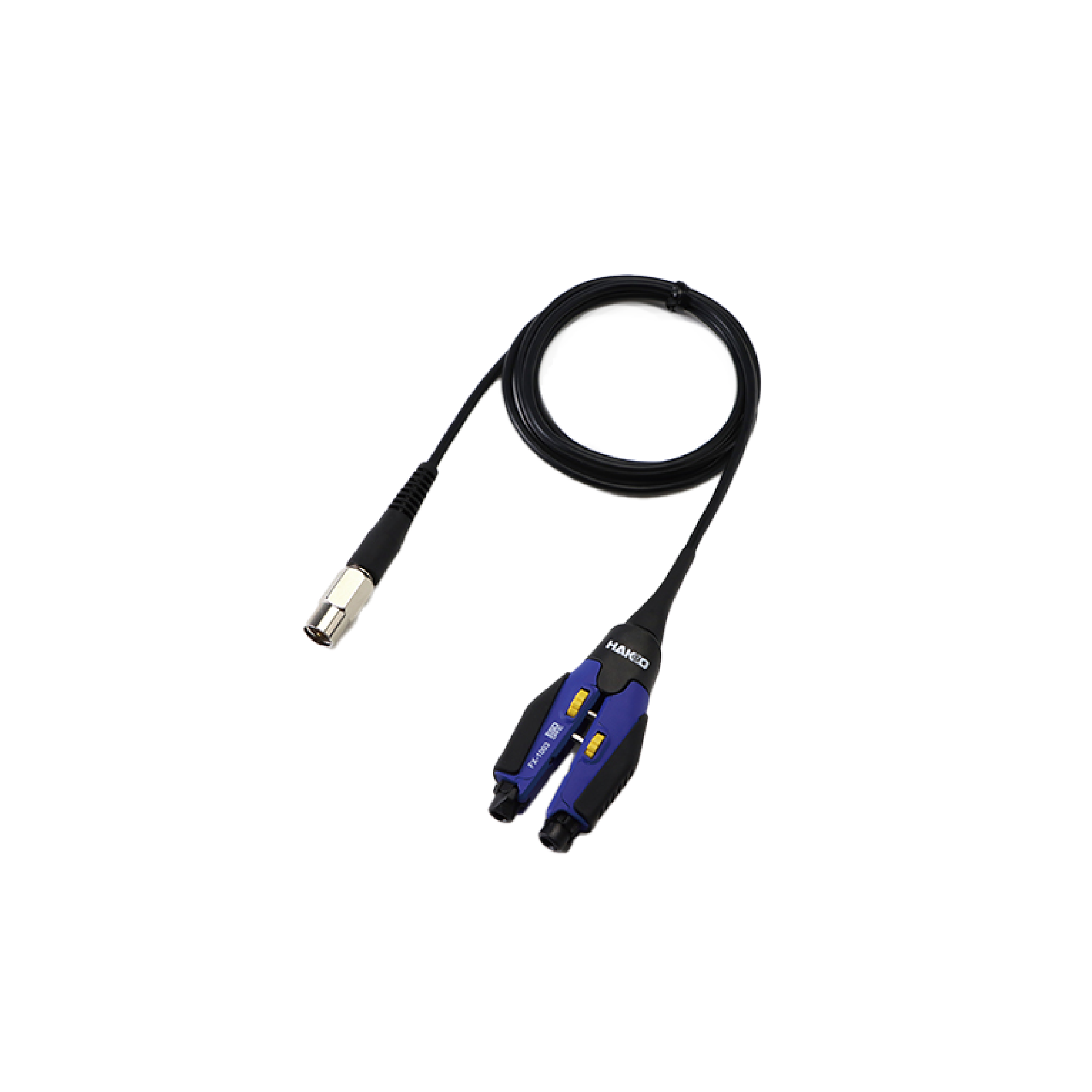

Ergonomic Design for Comfortable Operation

• The handpiece with the compact and asymmetric design with heat-resistant covers fits the hand, gives better stability, helps reduce the burden of operation, and supports precise and accurate works.

Micro and Precise Tip Lineup for a Variety of Rework

• The lineup of T38 series tips has a wider range than the tips for conventional tweezers and has tips to rework on 0402 components.

Multifunctional Iron Holder for Convenience and Comfort

• Iron Holder with the AUTO SLEEP / AUTO SHUTOFF Function

IH Soldering Station with Excellent Thermal Performance

• No Temperature Setting Required

Tip temperature is fixed by tip series. No setting temperature is required before use. Because there is no heating element, there is no chance of degradation of a heating element, and no calibration is required.

• No Overshoot

Because tip temperature is fixed by a physical phenomenon, there is no chance of overshoot.

Specifications

* Total length and weight (w/o cord)

Soldering Tips

Replacement Parts

*The HAKKO FX-100 temperature controller only is not available for separate purchase. Please contact your local distributor/dealer for the part number of complete set of FX-100.
