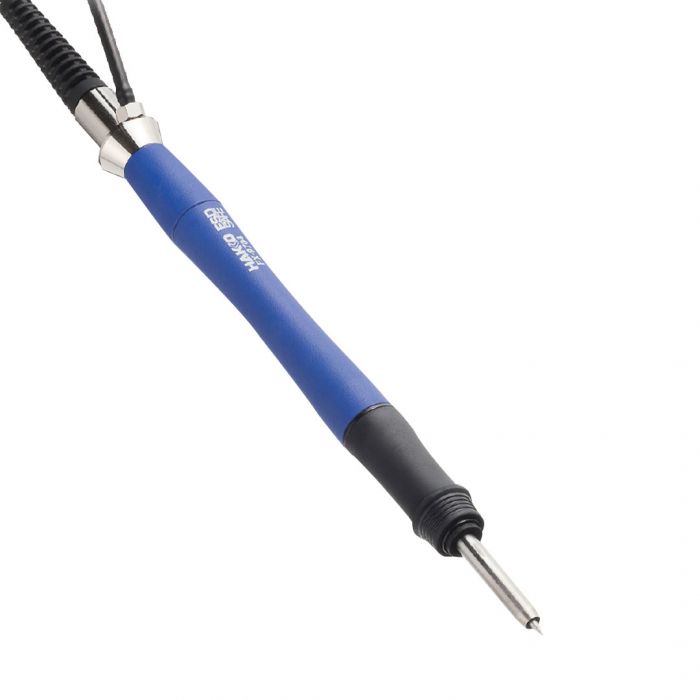

Micro Soldering Iron for FX-971. Has 70W of power with an ergonomic design and a sleep sensor built directly into the iron.
Ready to use in 3 seconds after power on. Best-suited for micro soldering under a microscope.
Very slim, super-light, and unsurpassed handling ability with a short length of 27 mm from the tip head to the handle and narrow cable of 3.6 mm outer diameter. Holding it just like a pen, you can approach fine components precisely and quickly.
The conversion kit comes with a fully redesigned FH-215 Iron Holder to support the handpiece with a new receptacle piece, extra tip storage, easily removable back as well as a cleaning sponge and brass wire.
Packing List
| Iron Only | |
| Soldering Iron* | FX-9704 |
| Instruction Manual | - |
| Conversion Kit | |
| Soldering Iron* | FX-9704 |
| Iron Holder | FH-215 |
| Cleaning Brush |
AC5000 |
| Cleaning Sponge | A5038 |
| Instruction Manual | - |
*Soldering Tip NOT included
Specifications
FX-9703 / FX-9704 Soldering Iron
- Soldering Tip Series: T50
- Iron Holder: FH215-811
- Power Consumption: 70W (24V)
- Temperature Range: 50 - 450 °C
- Tip to ground resistance: <2Ω
- Tip/Nozzle to ground potential: <2mV
- Heating Element: Composite Heater
- Cord length: 1.2m
- FX-9703 - Total Length: 174 mm (with 1D tip)
- FX-9703 - Weight: 15g (with 1D tip)
- FX-9704 - Total Length: 196 mm (with 1D tip)
- FX-9704 - Weight: 35g (with 1D tip, Nozzle Assembly A)
Required Equipment for N2 System
| Part No | Product Name |
| FX-971 / FX-972 | Soldering Station |
| FX-9702 FX-9704 |
N2 Soldering Iron |
| T39 T50 |
Soldering Tip |
| T39 Nozzle Assembly T50 Nozzle Assembly |
Nozzle Assembly |
| FX-780 / FX-781 | N2 Generator |
| FX-791 | N2 Flowmeter |
| - | Other Equipment* |
*Required regulator, filters, compressors etc are not available in Hakko's product line. It needs to be purchased separately.
