Precision made easier together with Optilia W30x HD inspection camera
Product No: OP-209 010-BT
HDMI: OP- 219 010-BT

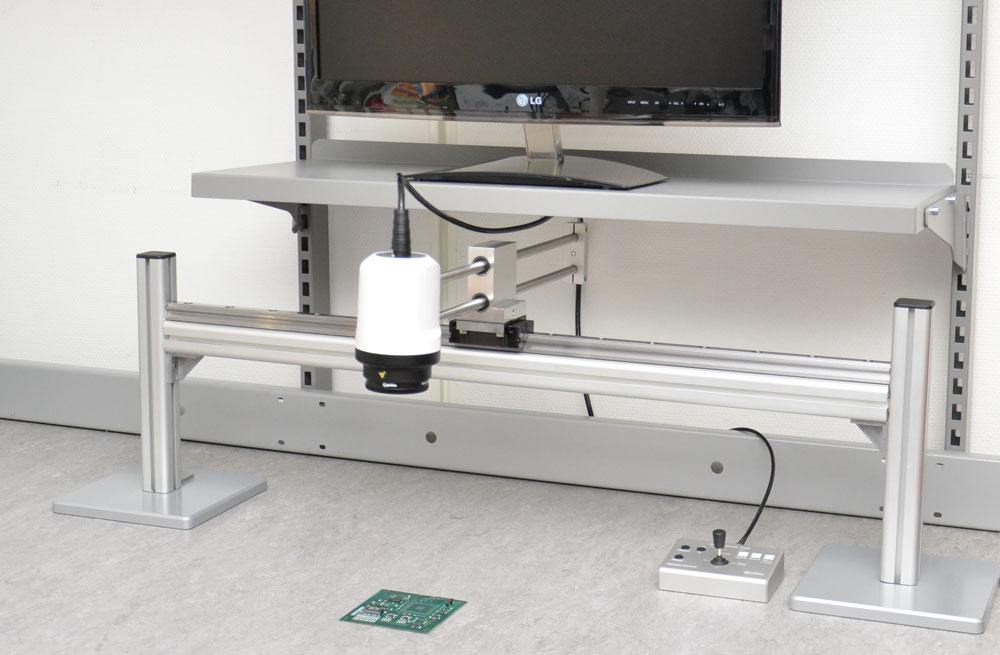

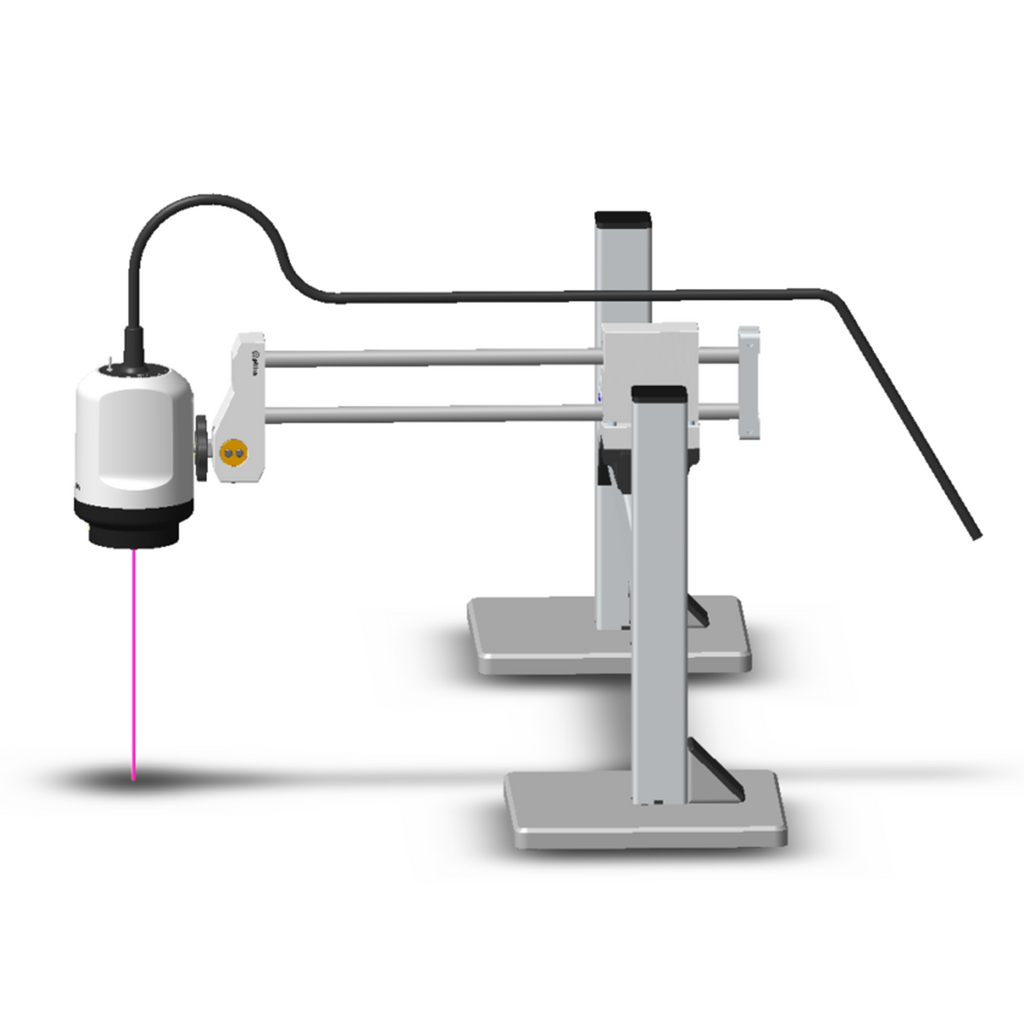

Heavy duty and stable stand with precision ball-bearing XY movement, specially developed for mounting of Optilia W30x High Definition inspection cameras on working benches. W30x camera can be moved smoothly and precisely along X- and Y-direction over a large area above inspection object using this stand.

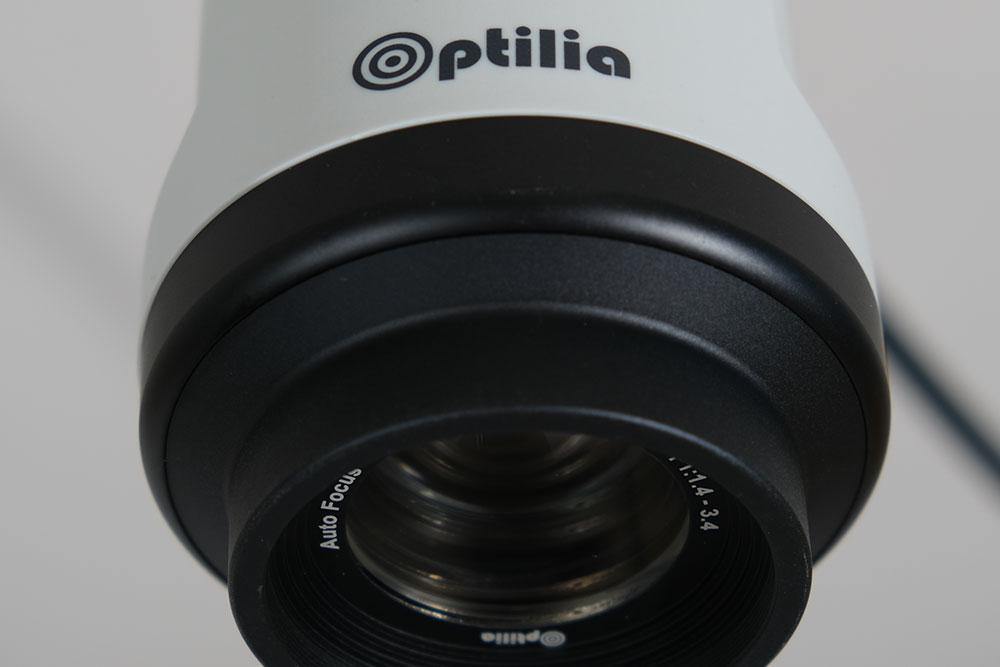

W30x-HD uses cutting edge High Definition live video technology and producing superior resolution, contrast and colour reproduction with its built-in 30x auto focus zoom optics. Macro-inspection camera is ideal for visual examination and quality control of assembled boards, wires, connectors and similar objects. Large working distance of the W30x-HD optics makes is also suitable for repair and rework.

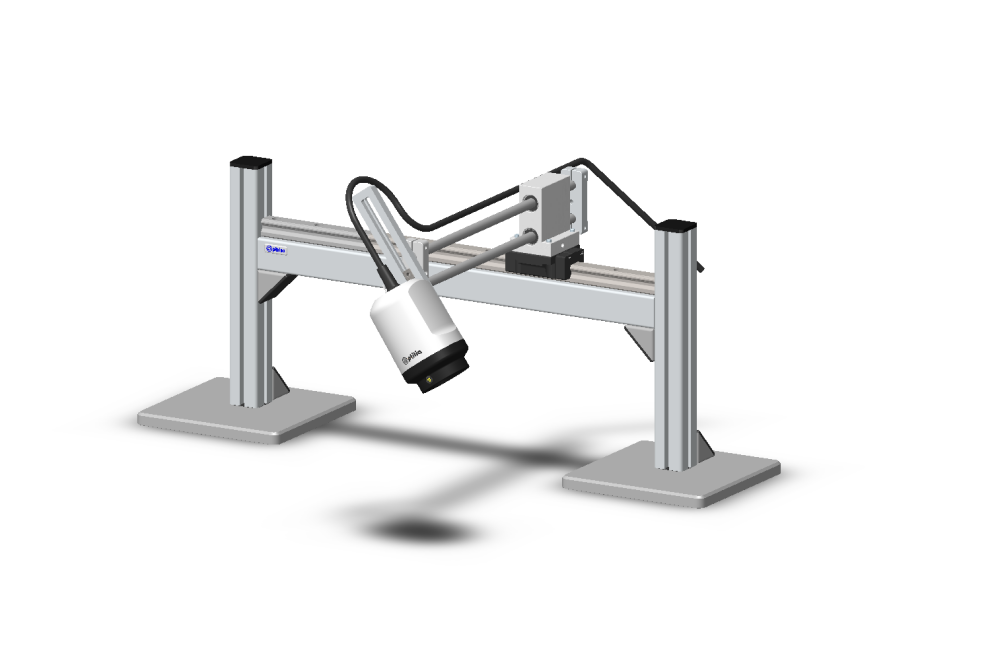

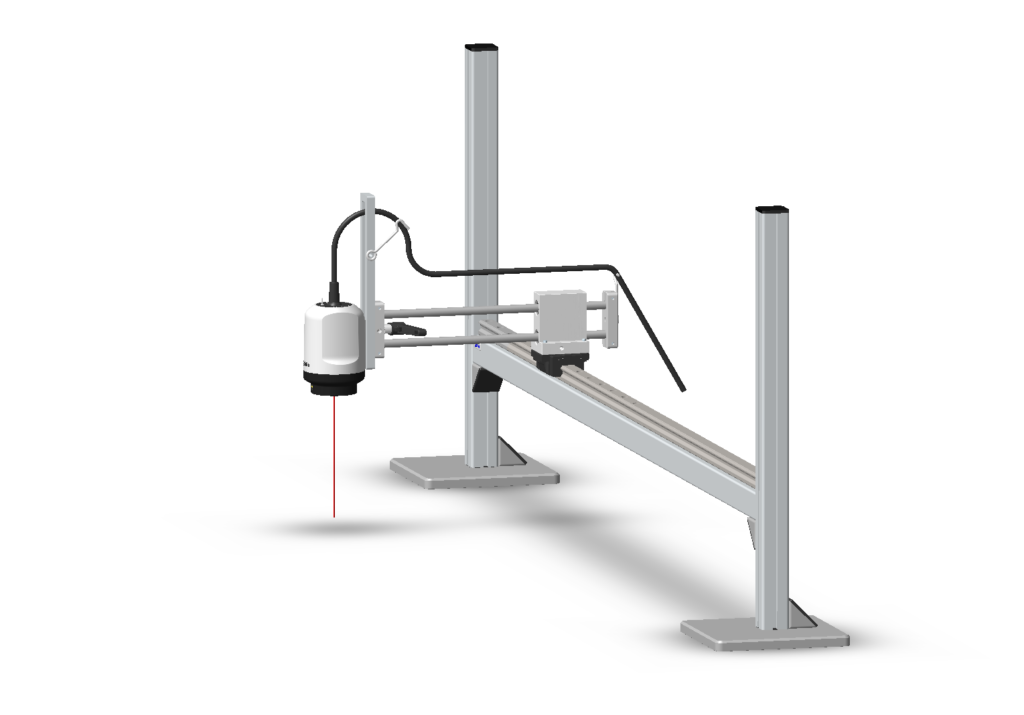

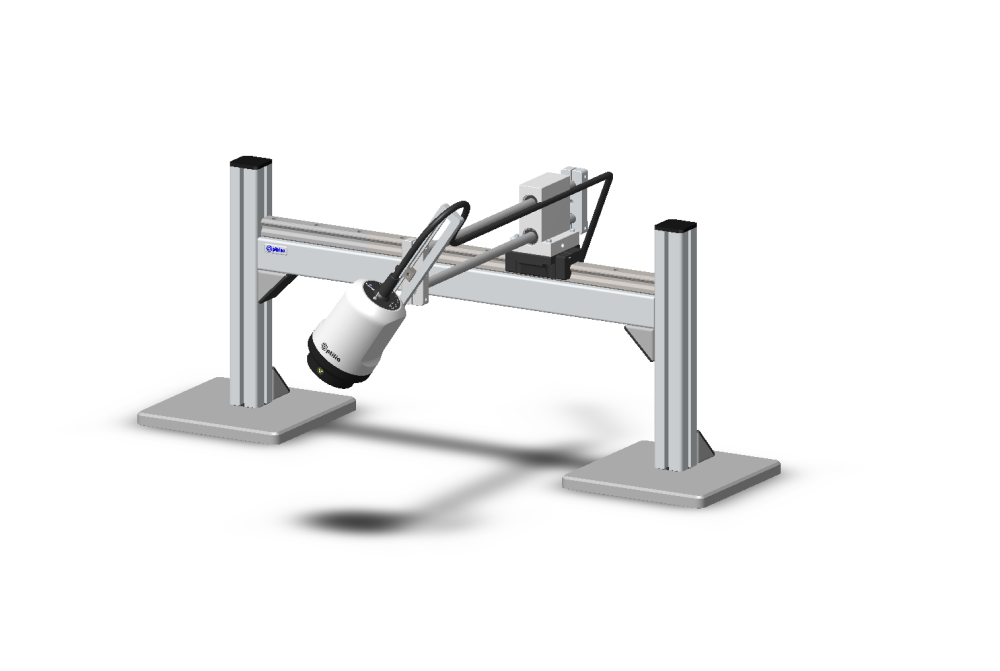

The XY bench-top stand is a heavy duty and stable stand with precision ball-bearing XY movement, specially developed for bench-top mounting of Optilia High Definition inspection cameras on working or inspection tables. W30x camera can be moved smoothly and precisely along X- and Y-direction above inspection object using this stand. An optional 4-directional tilt unit can be assembled on front of the stand boom in order to change direction angle of the camera for side inspection of objects.
The stand is made of high quality stainless steel and anodised aluminum parts and safe for use in EPA environments.

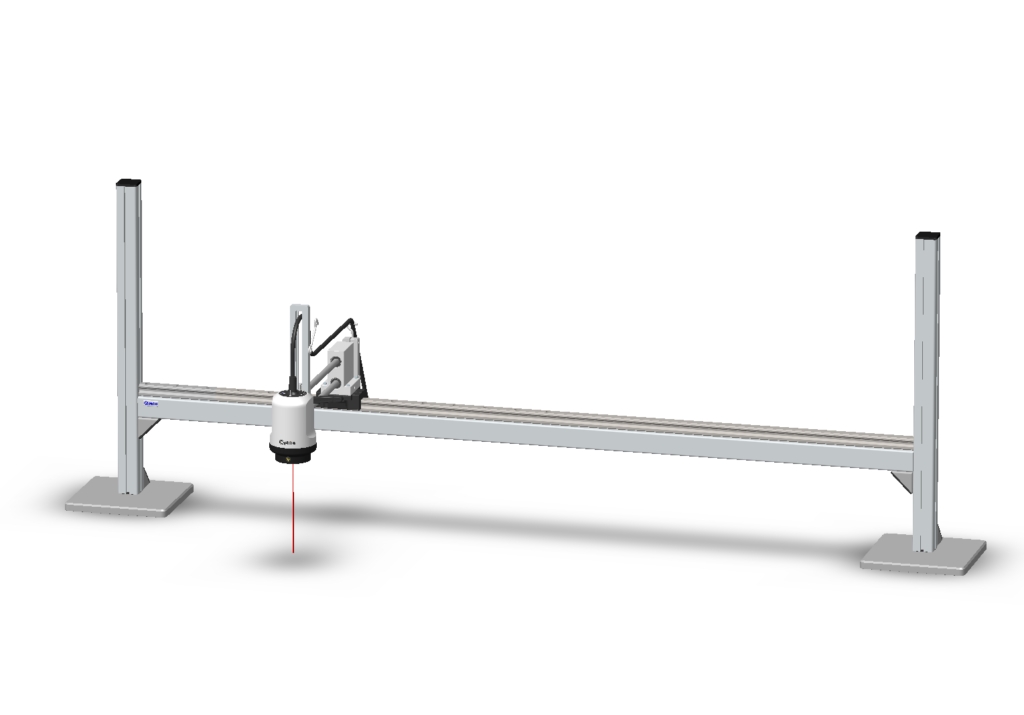

The stand can be ordered with lateral travel range of 400-900mm (sideways).
If not specified, standard X-travel is 400mm.
If not specified, standard Y-travel is 400mm.
Features
- Working distance of 240mm
- 30x optical zoom
- Very fast and responsive auto focus

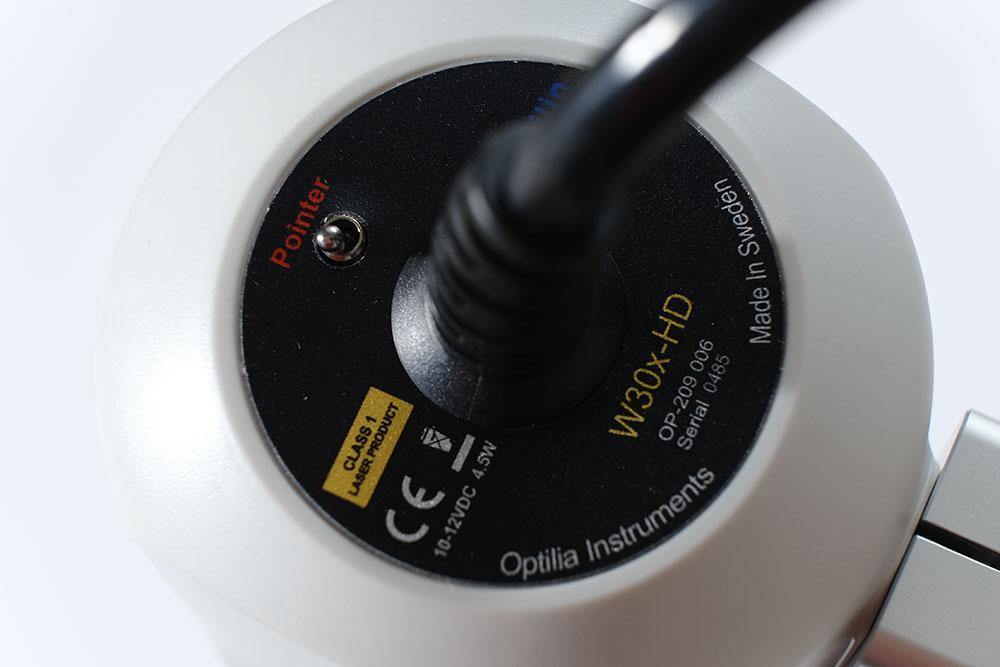

- Laser pointer for precision
- Including Bench-Top XY-stand
Upgrade Options
- Upgrade to ESD-protected housing
- OP-006 334 Add 4-directions Camera Tilt unit
- OP-009 220 Add Joystick Camera Control Unit, Double memory Save/Recall, Cross-line
