High Resolution Stereo Zoom Microscope with LED Ring Illumination for Microscopy
See the Bigger Picture

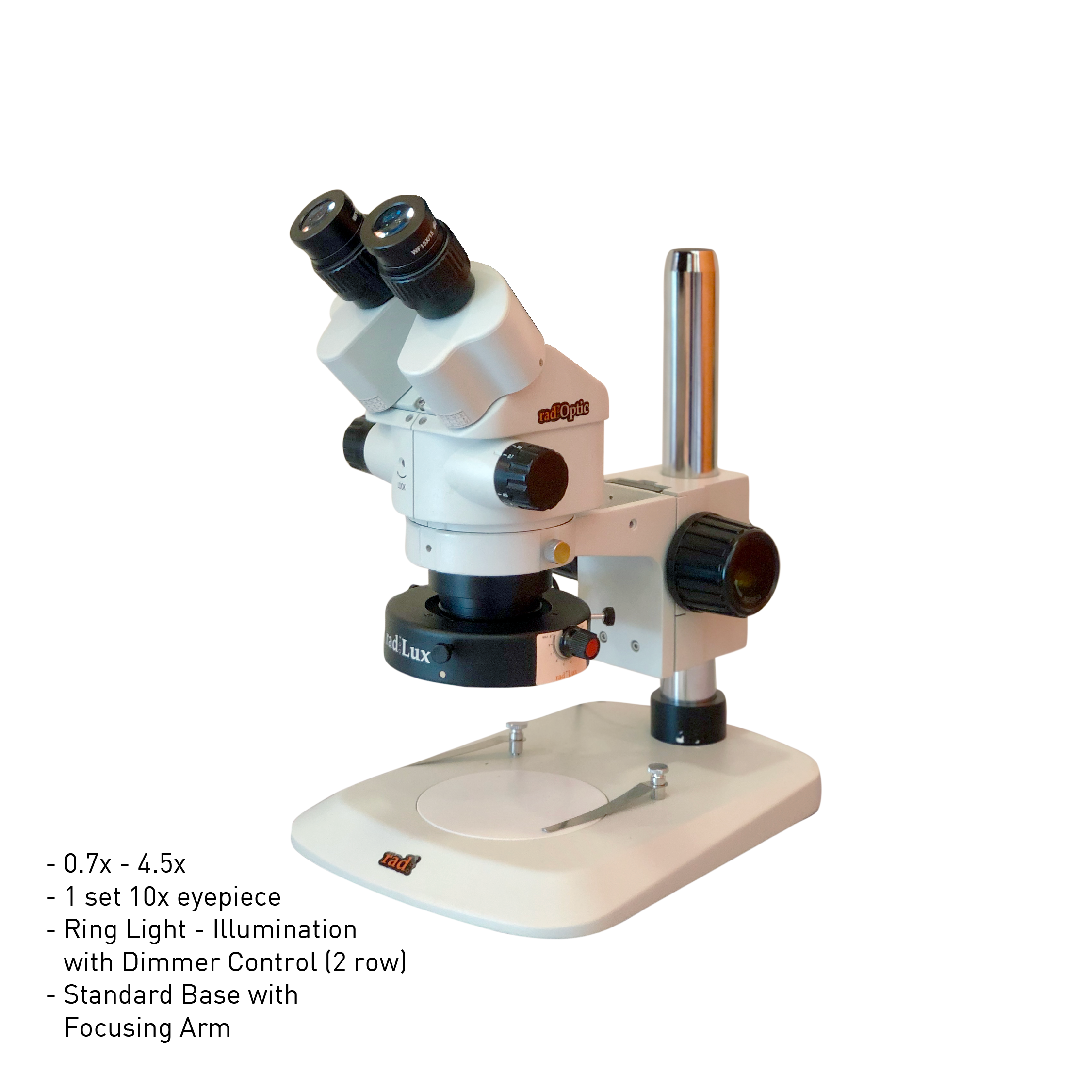

The Radiant 7045 Stereo Zoom Microscopes produce sharp and crystal clear images with excellent flatness and contrast. The images are brighter and more distinct even at the peripheral of the field of view. With their large zoom range and long-working distance, they are ideal for high-magnification, high-resolution observation in biological research, precision-oriented semi-conductor and other industries.
The binocular headpiece comes with a pair of 10x lens (1 set eyepiece) and can be further enhanced into a trinocular headpiece with an additional 3rd lens attached to the radCam.
Features
- Inter-pupillary distance: adjustable between 54-76mm
- Both diopter adjustment range: ± 5mm
| Viewing head | 45º inclined, 360º rotatable binocular head or trinocular head |
| Eyepiece | Wide field, high-eyepoint eyepiece. It can observe image of observation specimen with glasses |
| Objectives | Zoom objective magnification 0.7X-4.5X |
| Total Magnification range | Between 3.5X-180X |
| Working distance | 100mm, special maximum working distance can provide more working space for you 30mm-165mm |
radCAM (Camera)
- Manual and Automatic adjustment for exposure and white balance
- USB Storage
- Excellent HDR and Digital Zoom

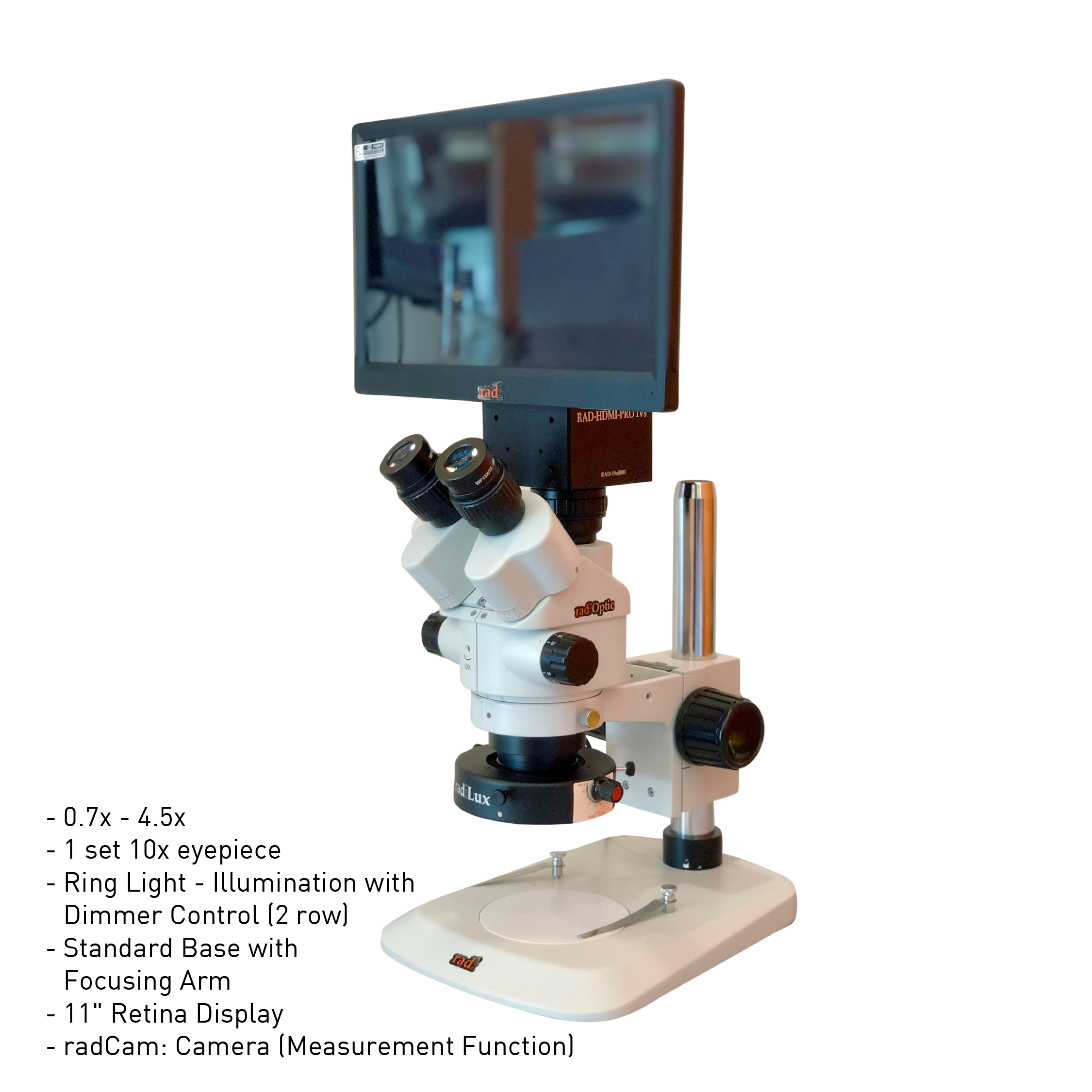

- Camera built in with Measuring feature (for camera with measurement function only)
| Sensor Size | 1/2.8'' |
| Resolution | 1920 x 1080 |
| Frame Rate | 60fps |
| Pixel Size | 2.9um x 2.9um |
| Sensor Size | 2MP |
| Storage | USB |
| Interface | HDMI |
| Power | 12V DC |

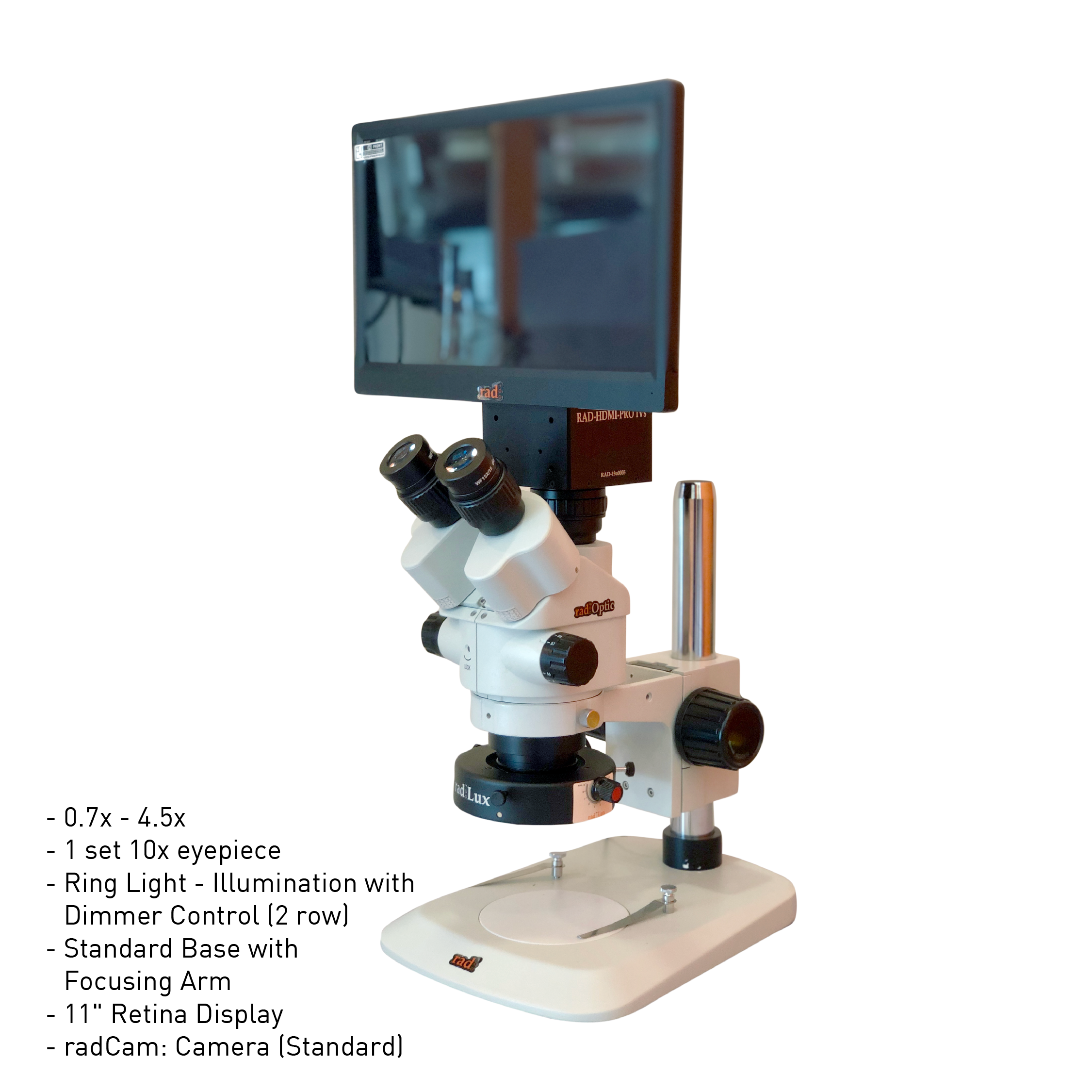

11" Display
- 11.6'' Retina Display
- Less Space, Greater Convenience
- Can be stand-alone or attached to the microscope for easier viewing
| Screen Size | 11.6'' |
| Screen Ratio | 16:9 |
| Resolution | 1920 x 1080 |
| Display Mode | IPS-PRO |
| Contrast | 1000 : 1 |
| Interface | HDMI |
| Dot Pitch | 0.1338mm |
| Brightness | 320cd/m |
radLUX (Ring Light)
- Single or double row ring illumination
- Turning knob on the side allows for easy dimming control or to turn off the light completely
Single Row
| Power Input | 110 - 240 VAC |
| Current | 75mA |
| Watt | 1.8W Max |
| Life Rating | 50,000 hours |
| ID Dimension | 66mm |
| Casing Material | Powder Coat |
| LED | Japan type, Single ROW |
Double Row
| Power Input | 110 - 240 VAC |
| Current | 100mA |
| Watt | 2.4W Max |
| Life Rating | 50,000 hours |
| ID Dimension | 66mm |
| Casing Material | Powder Coat |
| LED | Japan type, Double ROW |
| Working Distance | 60 - 100mm |
