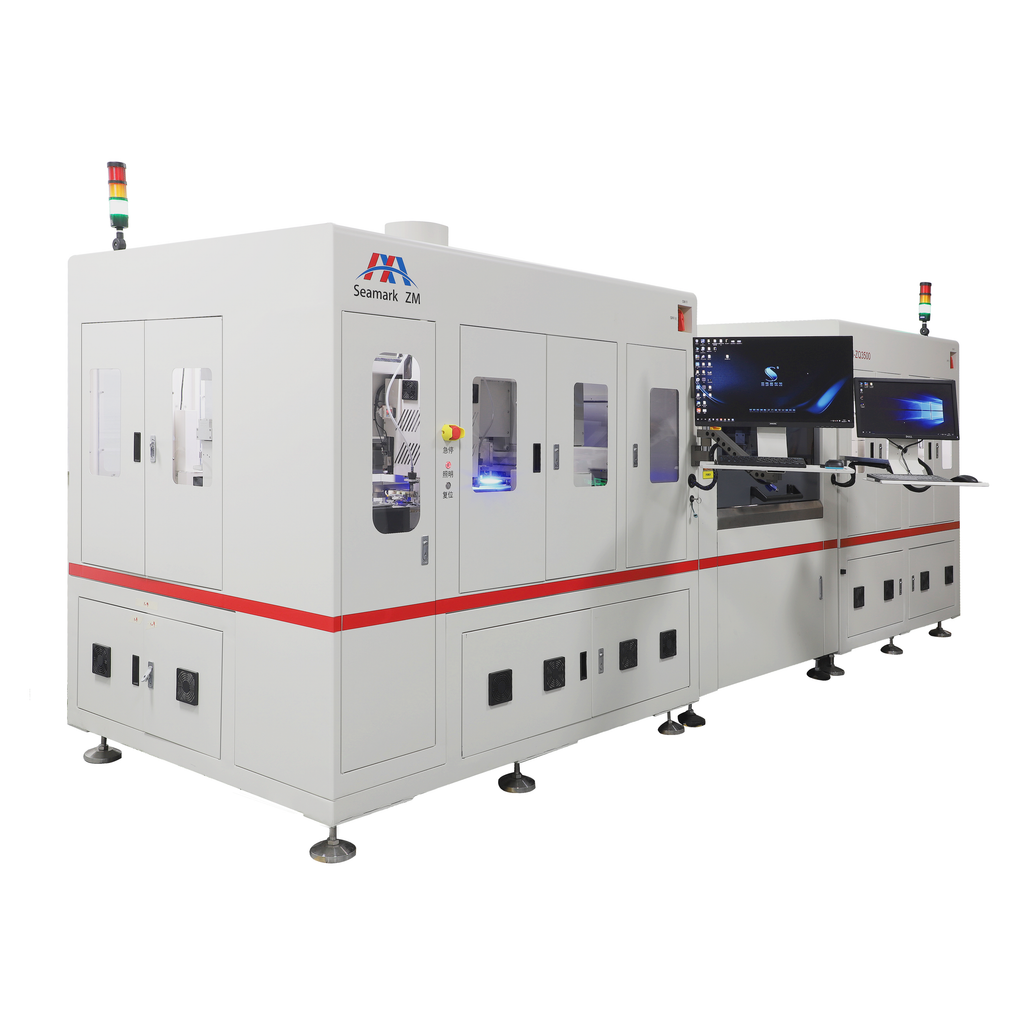

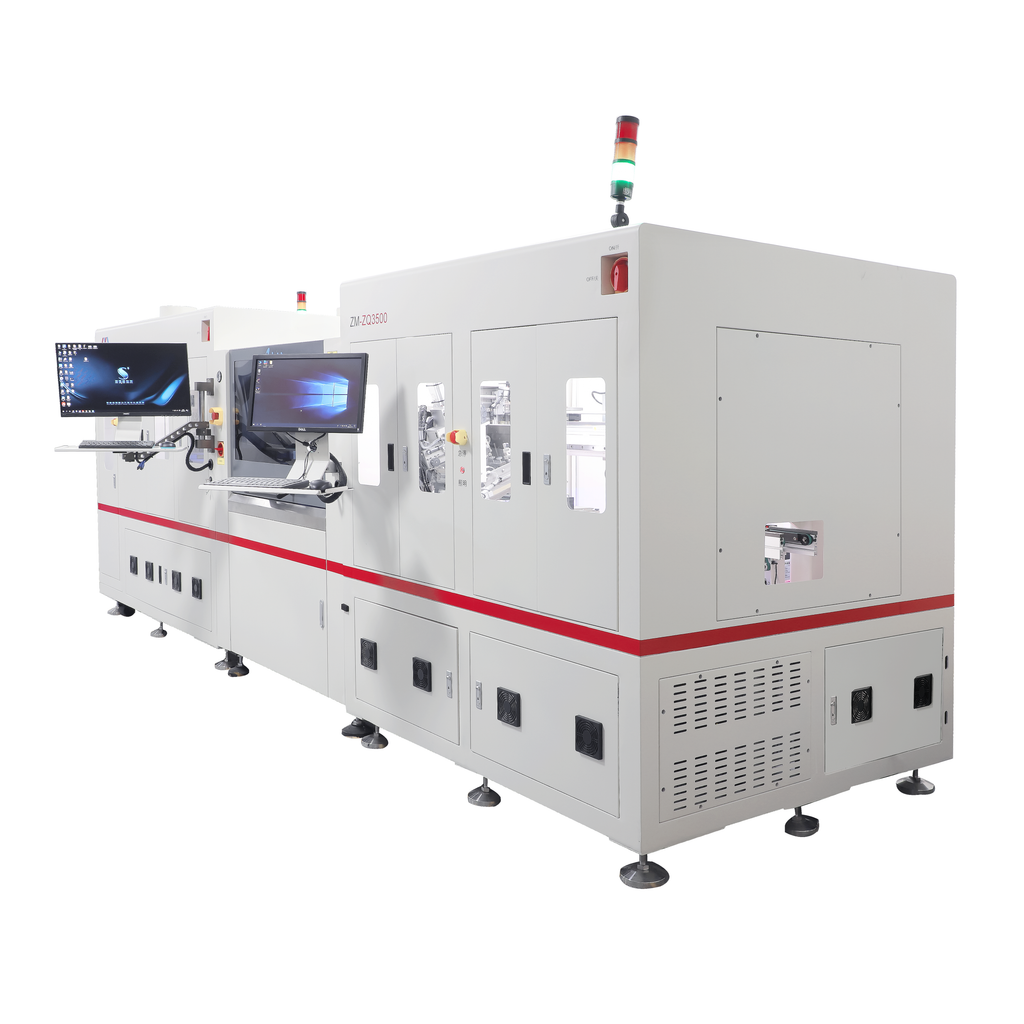

Fully automatic BGA tin removal and reballing capabilities
Compatible with various sizes and ball diameters (0.3 - 0.76mm). Overall equipment includes BGA repair related process functions such as loading/unloading, visual positioning, tin removal, glue removal, polishing, cleaning, printing flux, reballing, AOI detection, sorting, etc.
Features
Fully Automated Repair Line
A fully automated repair line comprising multiple devices with human/machine control. Each process has corresponding sensors for operation monitoring and alarm to ensure the smooth, safe and automated operation of the entire equipment.
Multiple Types of Combined Tin Removal Systems
Using a lower preheating component together with a non-contact tin removal component and a high-temperature scraper component creates multiple working conditions selection of tin removal. Suitable for ordinary BGA, adhesive BGA and device BGA.
Polishing and Cleaning System
Perform high-speed polishing with a dropwise cleaning agent. After removing tin, polish the residue on the surface and use dust-free paper for wiping and cleaning.
Printing Flux and High-speed Spot Flux System
Using a standard printing machine, regular BGA can be directly printed with flux after tin removal and cleaning. For BGA with devices on the upper surface preventing direct printing, a dedicated high-speed point flux piezoelectric valve can be used.
CCD Positioning and AOI Detection System
Multiple sets of CCD components are used for handling and positioning, to effectively ensure the accuracy of loading/unloading process. It is also equipped with an AOI detection system to perform checks on the BGA after reballing, to detect defects such as multiple balls, few balls, deviation, bridging, large or small balls and to carry out sorting.
Specification
| Power Supply | AC: 220V +/- 10% 50/60Hz 1⌀ |
| Operation Mode | Full Automatic |
| Loading Method | Left In / Right Out |
| BGA Size | Max: 100 x 100 mm Min: 5 x 5 mm |
| Preheating Table Temperature | <200°C (adjustable) |
| Tin Removal Heating Capacity | <400°C (adjustable) |
| Tin Removal Residual Amount | <15% |
| Line Change Time | 30min |
| Solder Ball Size | 0.3 - 0.76 mm |
| Reballing Accuracy | Deviation < 1/3 Ball Diameter |
| Repeated Positioning Accuracy | +/- 0.01 m |
| UPH | > 10pc |
| Dimensions | 4700 L x 1500 W x 1850 H mm W including display: 2100 H including lights: 2100 |
| Weight | Approx. 5000 kg |
| Mode | 4 permission modes: Operators / Maintenance / Engineering / Admin |
| Safety | Audible and Visual Alarm with message prompt. The front acrylic door of the emergency stop button is equipped with magnetic protection. During equipment operation, opening the door will automatically stop the leakage protector and the equipment will be grounded reliably. |
