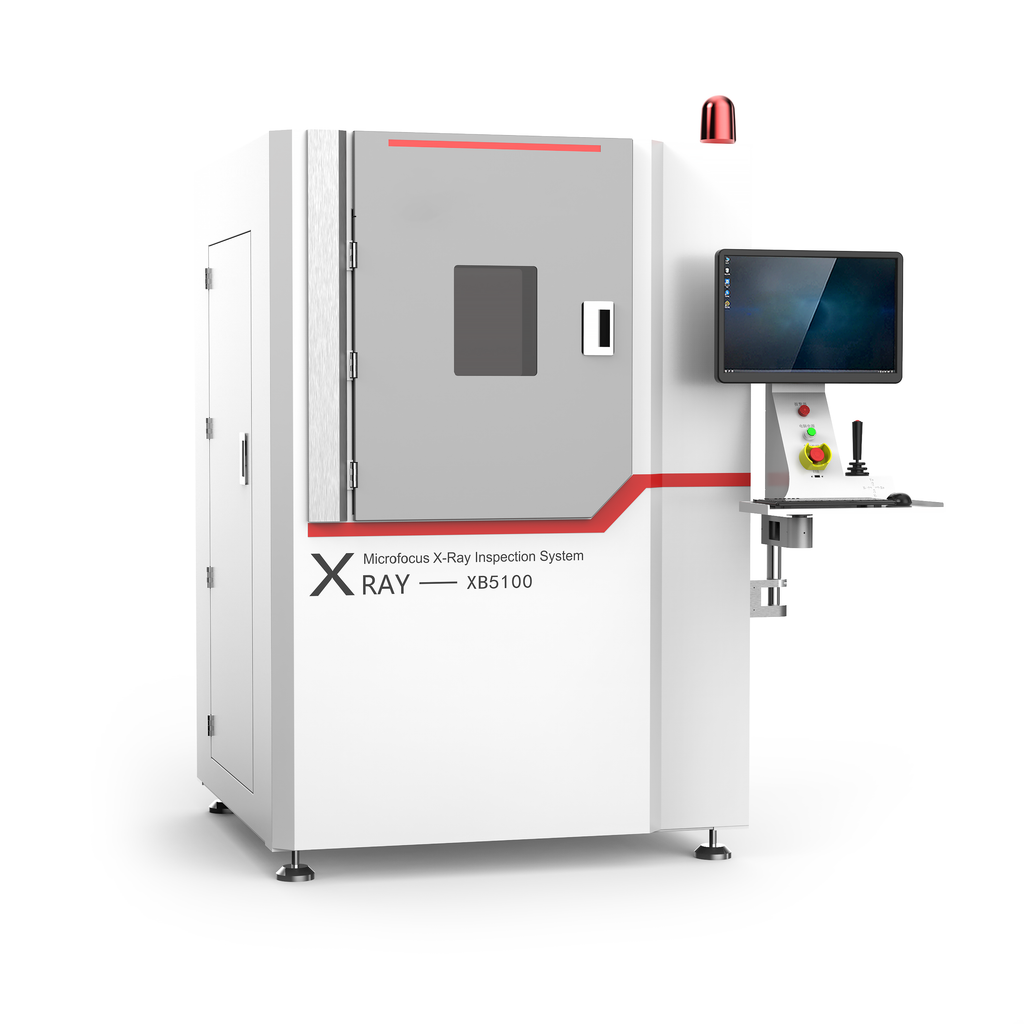

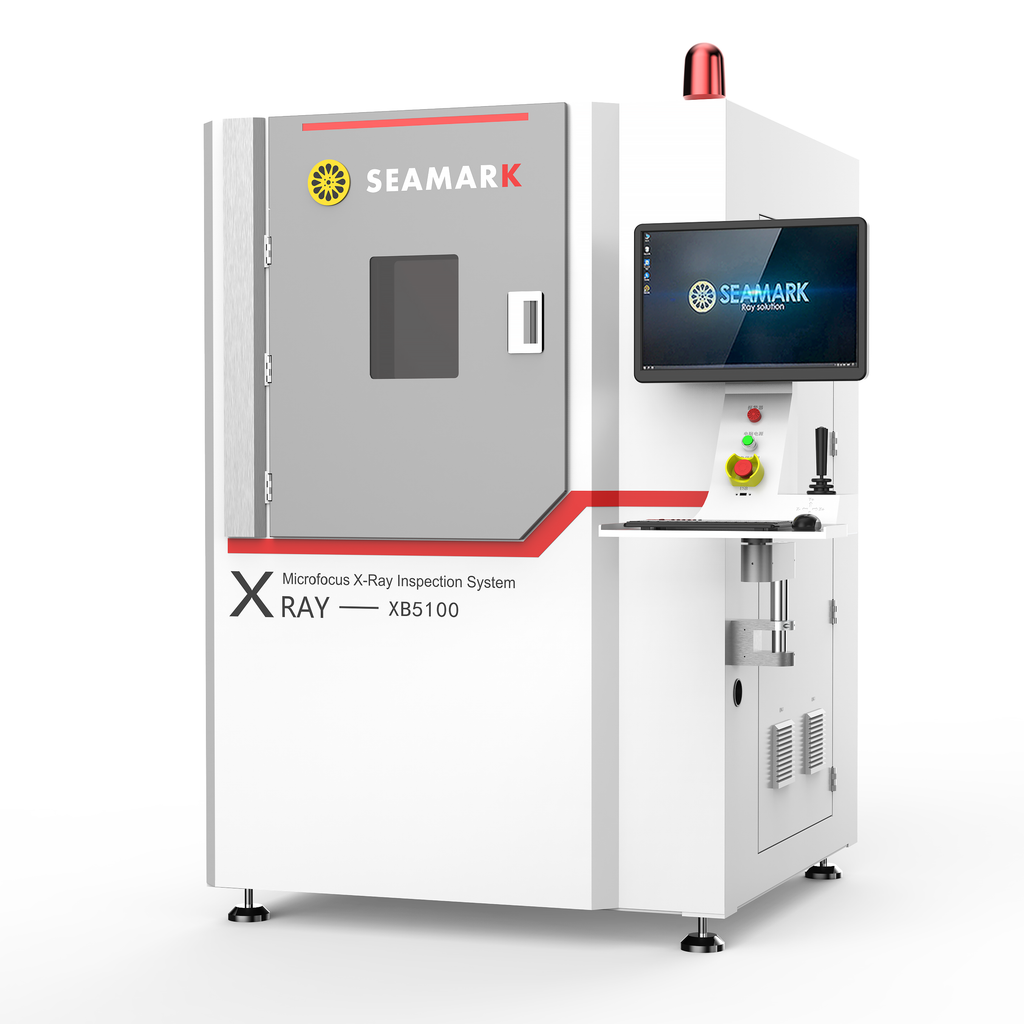

Product Features
- Suitable for Inspection of Various Battery Process Types
- Analyze Internal Defects
- Measurement Function
- CNC Function
- Automatic Navigation and Positioning
- Real-Time Processing and Storage of Image
Measurement Function:
- Linear distance
- Circle diameter
- Concentric circles
- Distance between points
- Distance from the center of a circle
CNC Function:
Memory programming, automatic recording and inspection of motion paths, accurate positioning, convenient for small batch repeated inspection.
Specifications
| Input Power | 220V 10A 50-60Hz | |
| International Radiation Safety Standards | ≤1uSV/hr | |
| Control System | Industrial WIN10 64 Bits | |
| Dimension | 1142 L x 1177 W x 1790 H mm | |
| Weight | 1000 kg | |
| X-Ray Tube Specification | ||
| Tube Type | Reflective Sealed Micro Focus X-RAY Source |
|
| Voltage Range | 40 - 90 KV / 40 - 130 KV | |
| Current Range | 10 - 200 uA / 10 - 300 uA | |
| Max Output Power | 8 - 39 W | |
| Micro Focus Size | 5 - 15 um | |
| Inspection and Accuracy | ||
| Inspection Accuracy | 15 um | |
| Repetitive Testing Accuracy | ±30 um | |
| Inspection Speed | ≥1.0/Inspection Point (Exclude Loading/Unloading Time) |
|
| Flat Panel Detector | ||
| Detector Type | Amorphous Silicon FPD (Optional) | |
| Pixel Matrix | 1536 x 1536 | |
| Field of View | 130 x 130 mm | |
| Resolution | 5.8 Lp/mm | |
| Image Frame Rate (1 x 1) | 20 FPS | |
| AD Conversion Bit | 16 Bits | |
| Stage Parameters | ||
| Max Sample Size | 400 x 400 mm | |
| Load Capacity | ≤8 KG | |
