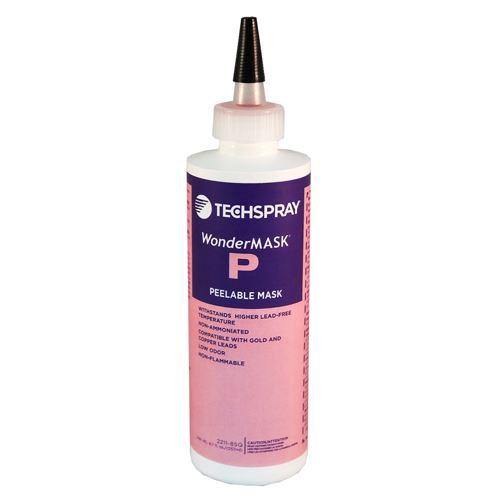

Techspray Wondermask P Peelable Solder Mask
2211-8SQ (8 Oz/237ml) - MOQ 24
A peelable mask which protects designated areas in wave soldering process.
PRODUCT INFO

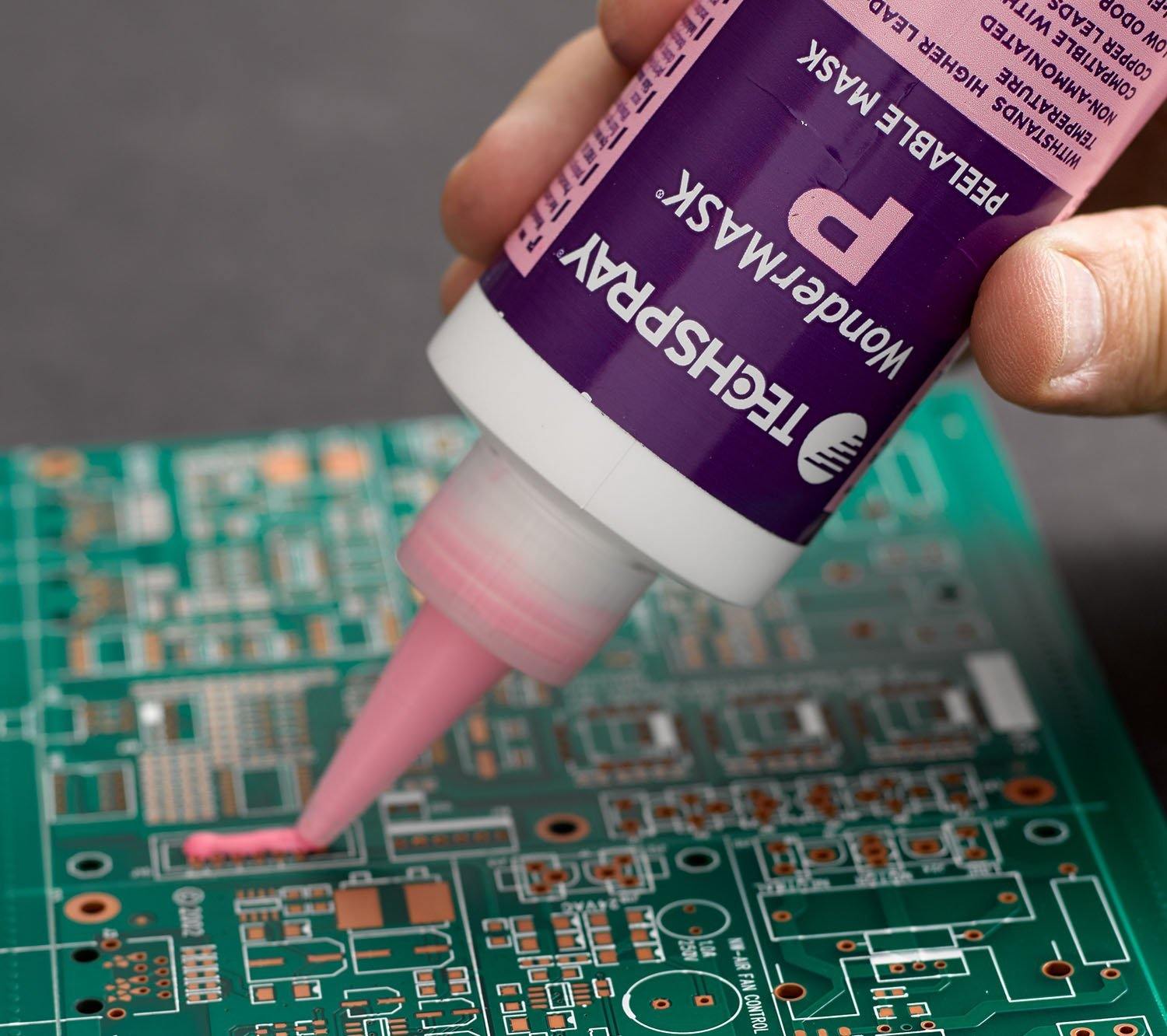

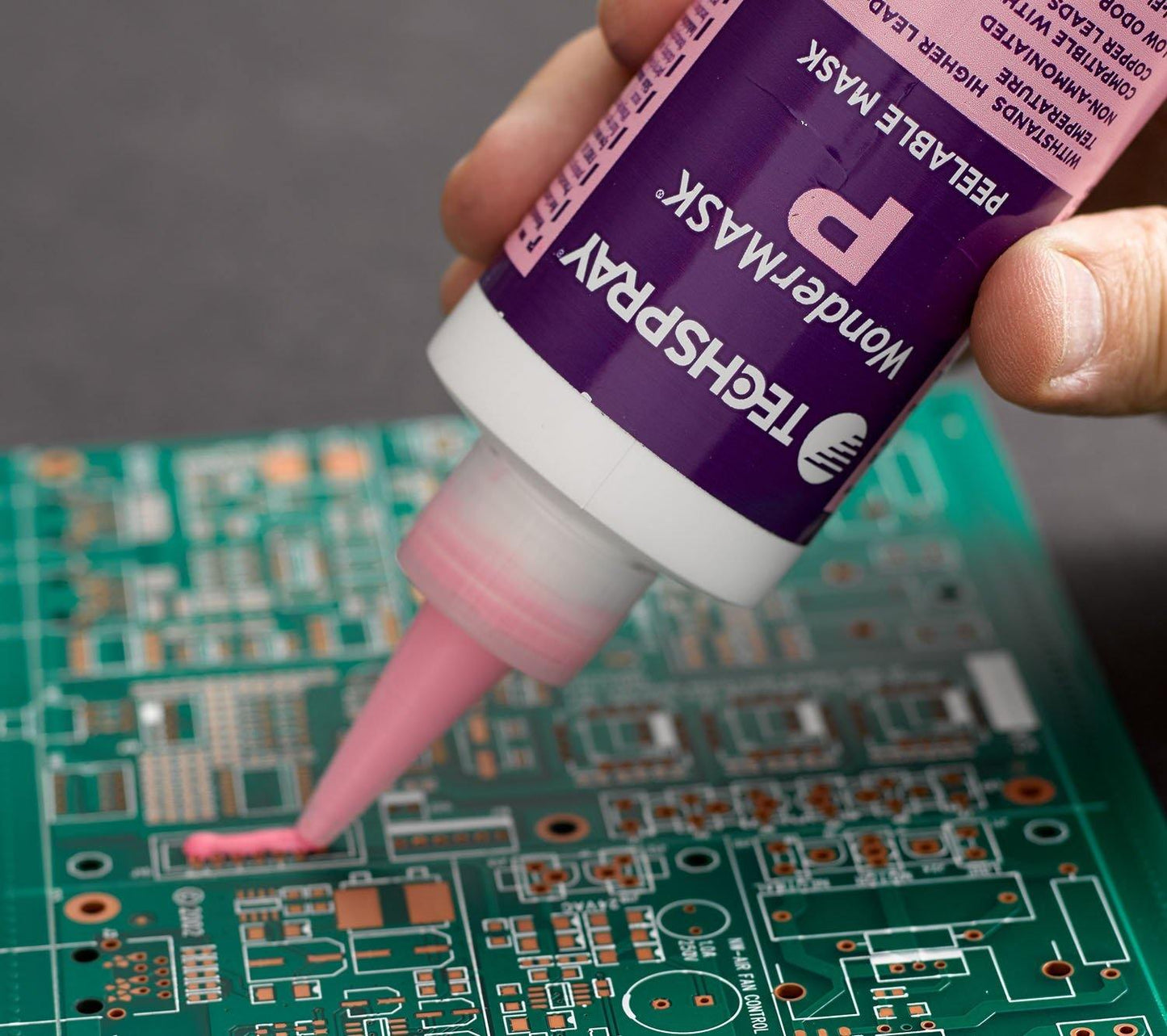

Non-ammoniated, low odor peelable mask - Prevent soldering protected areas in a wave soldering process by applying a Peelable Solder Mask. WonderMASK P is designed to apply smoothly, dry quickly, withstand high lead-free process temperatures and then be removed easily.
WonderMASK P's applications in PCB assembly:
Thru-hole masking – Prevention of soldering open holes during wave soldering process when covered with WonderMASK P.
Conformal coating masking – In a conformal coating dipping or spraying process, WonderMASK can be used to cover connectors and other components and areas that should not be coated. WonderMASK P and PX are recommended.
Temporary component adhesive – Easily used and washable adhesive for components on double-sided PCBs.
FEATURES & BENEFITS
- RoHS compliant
- Can withstand lead-free soldering temperatures up to 640°F (343°C) in wave soldering process
- Non-ammoniated
- Nonflammable

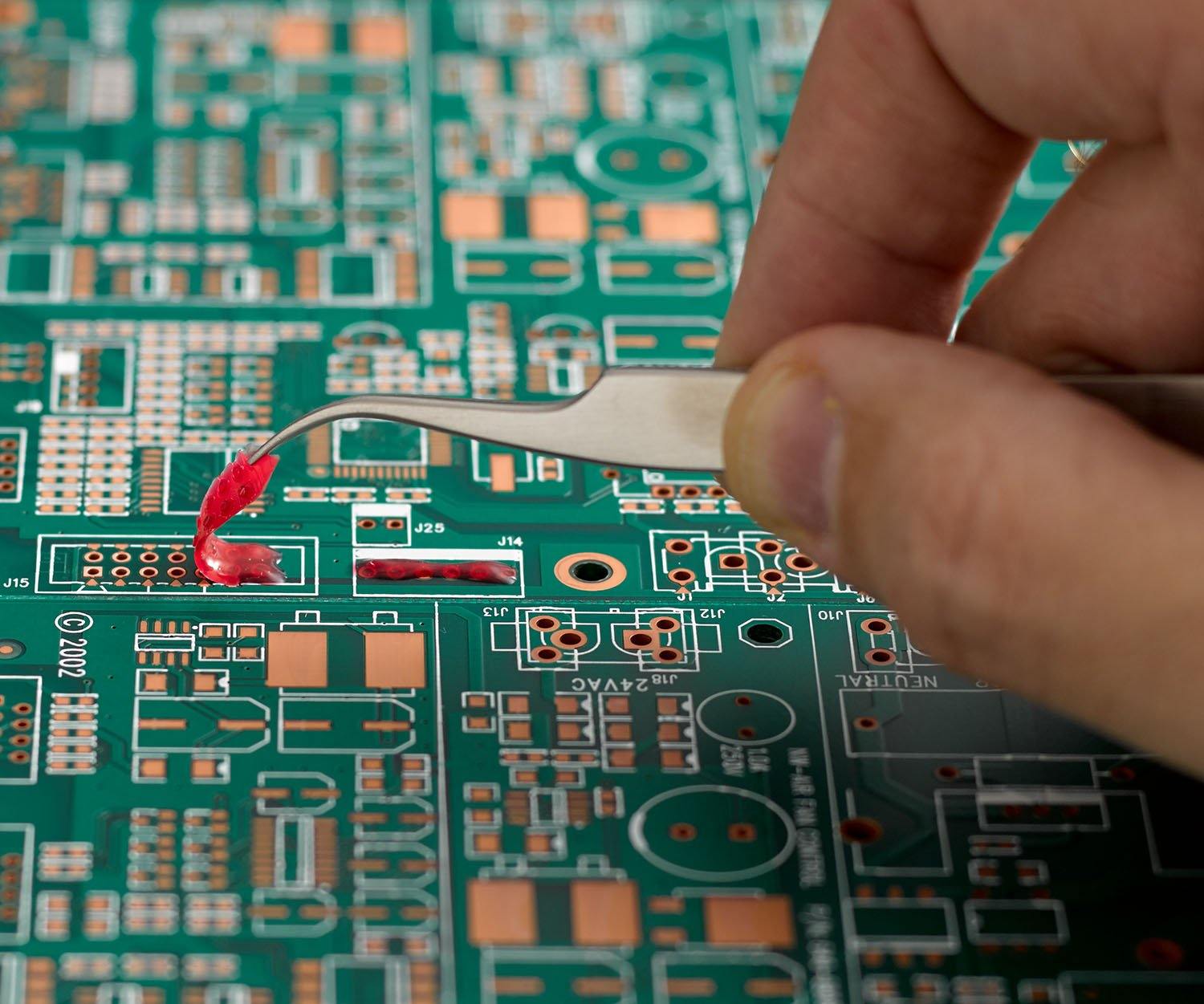

- Easily peelable
- Low odor
- Cure indicator - darkens as it cures
- Compatible with gold and copper leads
ALTERNATIVE PACKAGING

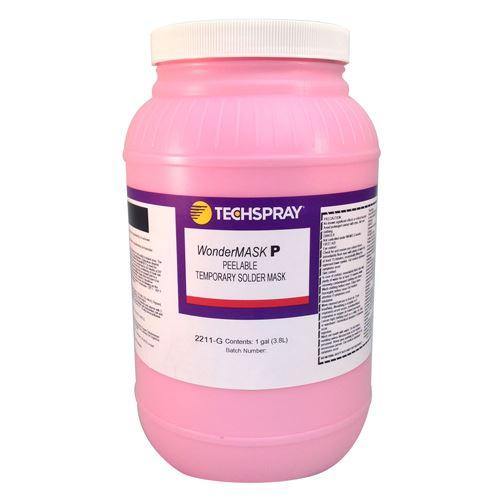

- 2211-G (1 Gallon/3.8 litres)

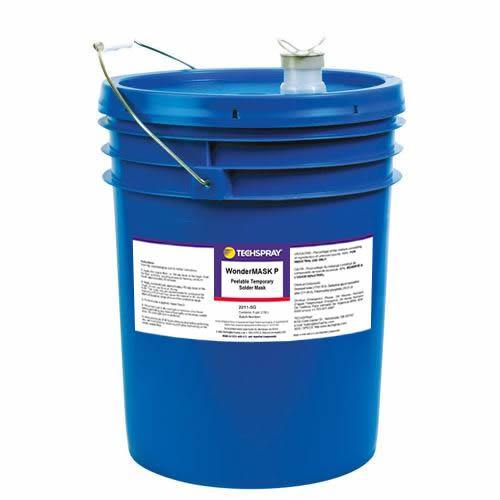

- 2211-5G (5 Gallon/1.0 litres)

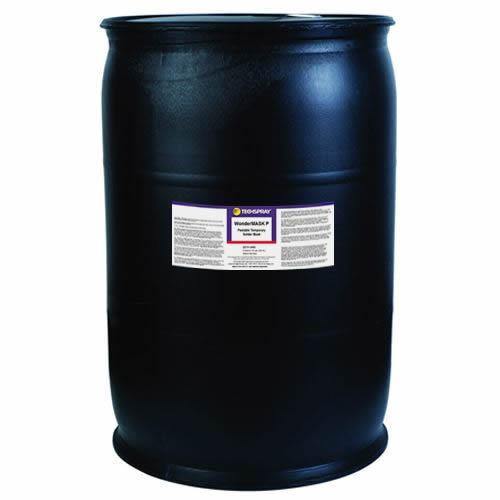

- 2211-54G (54 Gallon/205 litres)
For more information, please review the Technical Data Sheet and Safety Data Sheet.
Purchasing in bulk? Speak to our sales here to purchase in gallons or larger volumes.
