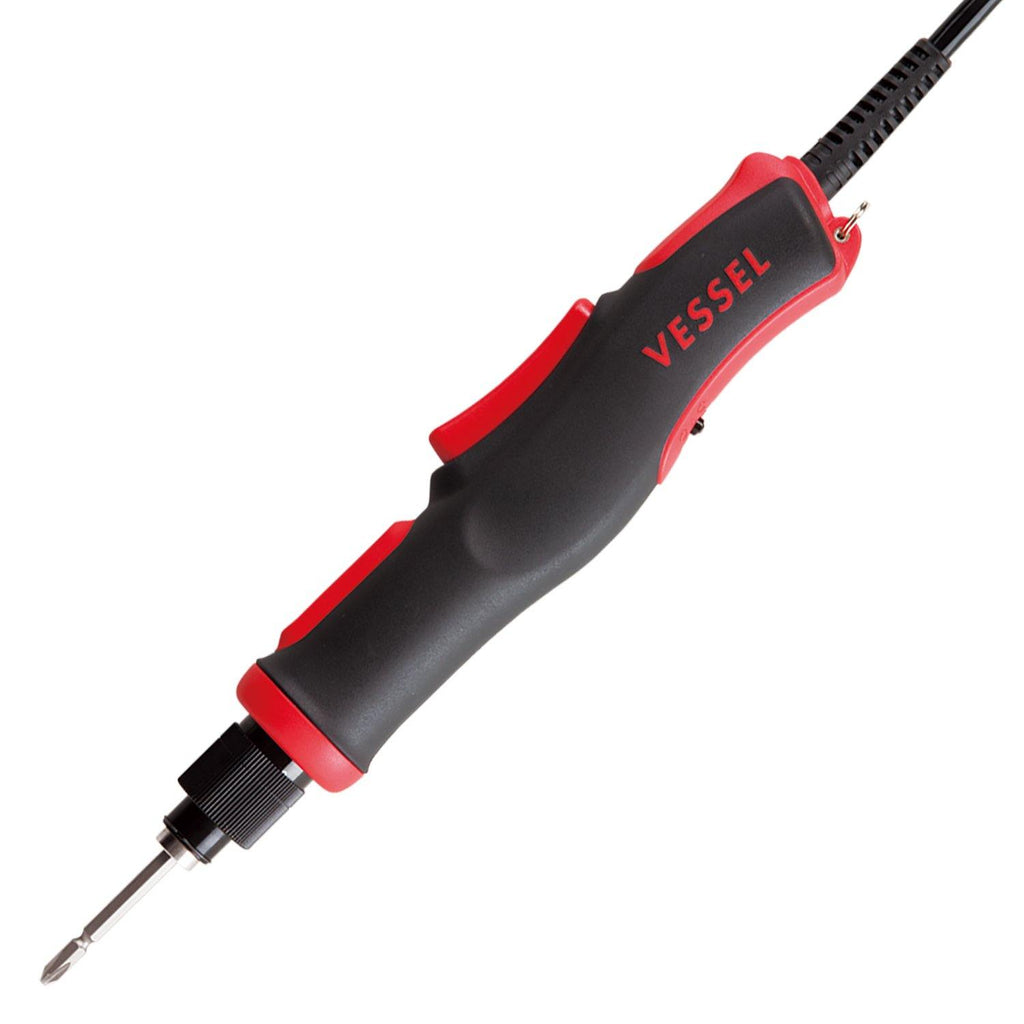

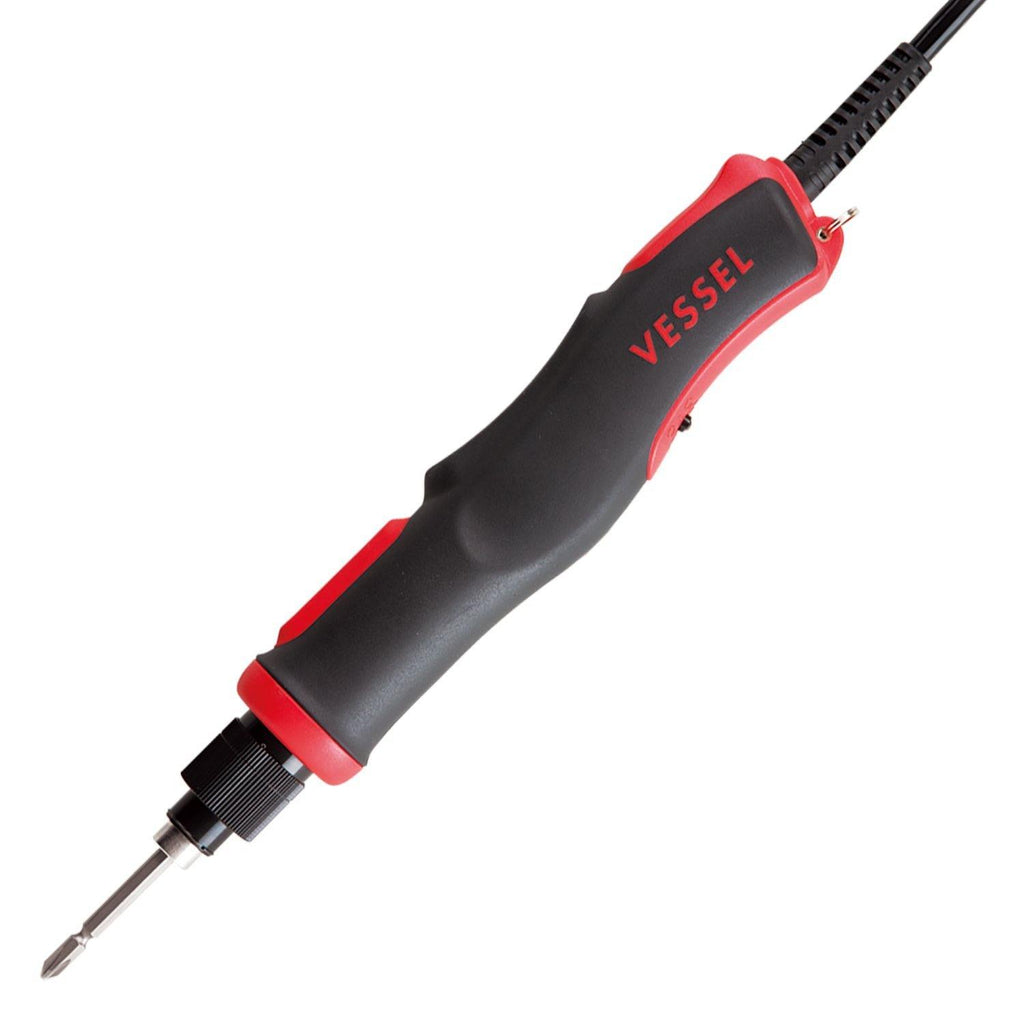

VE-4000 (Lever type) / VE-4000P (Push type) Electric Screwdriver
Applicable for small screws (M2.5-4.0) and self-tapping screws (1.6 - 2.6mm)
Vessel VE Series Electric Screwdriver provides ease and convenience without compromising quality.
- Slot-less/brush-less motor is used to improve tightening accuracy, efficiency and maintainability.
- Easy-to-use ergonomic design with shock absorbing gel pad for a firm grip.
- Prevents mis-operation of adjustment with a tamper-proof sleeve.
- Power cable (2m) integrated type without a connector on the main body.
Product Specifications
VE-4000 / VE-4000P Electric Screwdriver
- Dimensions: 354 x 156 x 94 mm
- Insertion Angle: H5
- Output Torque: 0.3 - 1.5 N・m
- Applicable Small Screw: M2.5 - M4.0
- Applicable Self-Tapping Screw: 1.6 - 2.6 mm
- No-Load Rotation Speed: HI 2000min-1 / LO (no LO setting)
- Rating: DC32V 55W
- Cable Length: 2 m
- Overall Length: 250 mm
- Torque Adjustment: 16 step x 8 scales
- Body Material: PC + Elastomer
Packing List
VE-4000 / VE-4000P Electric Screwdriver
- Main body (with power cord)
- 1 tamper-proof sleeve
- 2 set screws (M3 x 3)
- 1 hexagonal wrench (H1.5)
- User manual
- Controller VCT-45
- 1 AC cable (1.8m)
- 1 3P2P conversion adapter
- B36 +1 x 70/+2 x 70 1 each
