[This is a pre-order product and will take 6-8 weeks to arrive. Kindly view pre-order FAQs before purchasing.]

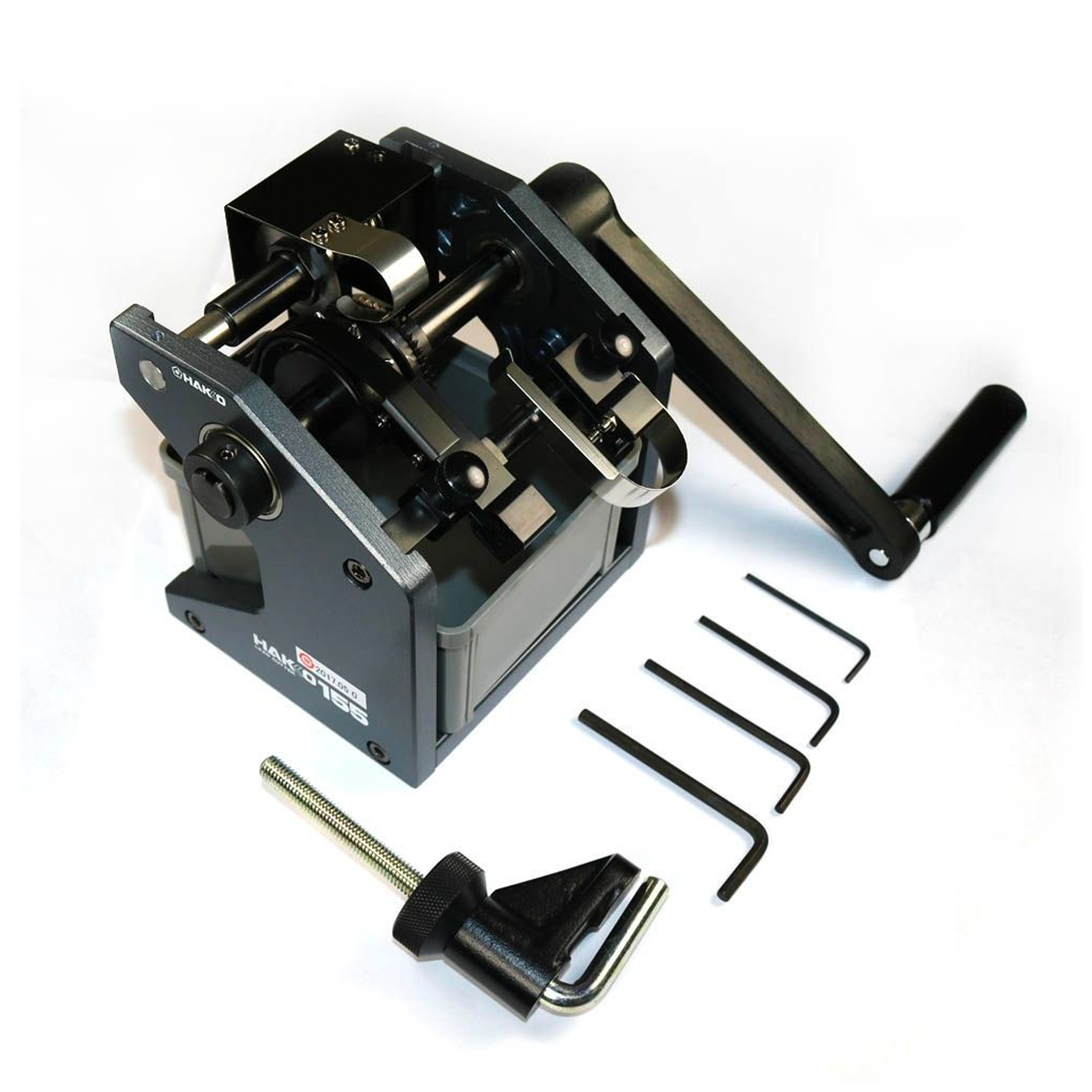

- Lead cutter for radial components. Unsuitable for work on components with lead frames (square lead).
- Please note that 155-1 and 155-2 differ in product specifications.
- Possible for use together with Hakko 152B (motor drive).
Please refer to the user manual for more tips!
Features
Cutting for tape-type radial components and annealed copper lead wire
- Easy to use - simply set the taped components in place and turn the handle. The super-sharp, high quality cutting blade allows you to cut all varieties of tape-type radial parts, including resistors, capacitors, transistors, etc. cleanly and smoothly. Continuous operation ensures faster, more efficient processing.
- Sealed bearings make it long-lasting, durable and efficient.
- The compact design allows you to place it virtually anywhere.
Specifications
- Max diameter of lead wire: 0.8mm
- Lead wire: For annealed copper lead wire only
- Max processing part size: 12.5mm dia x 25mm
- Feed hole pitch: 12.7mm
- Lead pitch: 5.0mm, 2.5mm
- Min processing size: 1.5mm from taping end, 2.0mm from component end
- Dimensions: 110(W) x 140(H) x 125(D) mm
- Weight 1.7kg
*When shipped, the unit is set for components with a lead pitch of 5.0mm
*Square lead wire is not adapted
*Weight measured with handle and clamp
Replacement Parts
Part Number | Specifications |
A1107 | Cutting Blade for 155-1 / 155-2 |
B1405 | Cutting Wheel with Screw for 155-1 |
B1406 | Transport with Screw for 155-1 |
B1581 | Cutting Wheel with Screw for 155-2 |
B1582 | Transport with Screw for 155-2 |
B13887 | Main Shaft for 153 / 154 / 155 |
