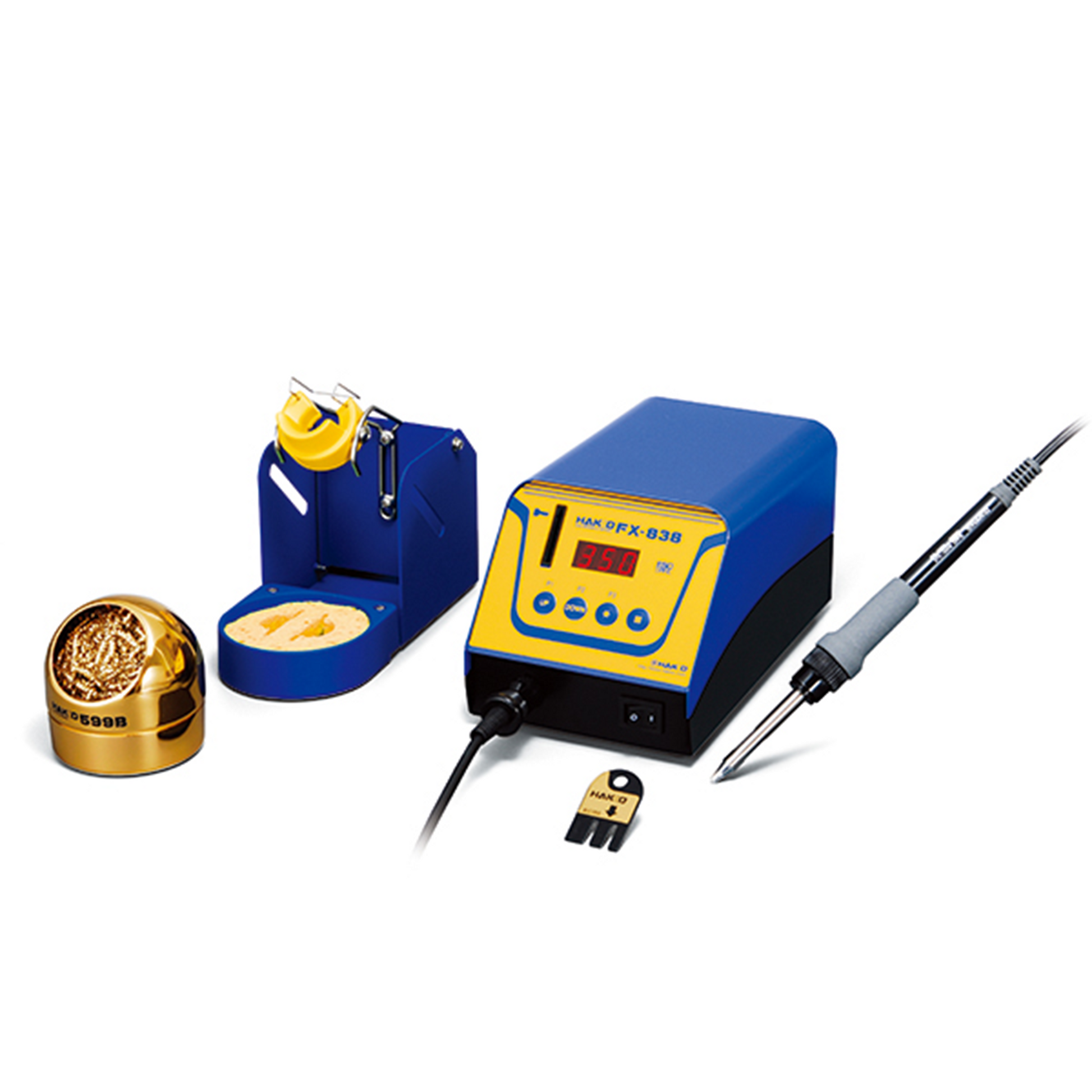

  • Hakko FX838 158W Soldering Station and heavy duty soldering iron compatible with T20 series tip best suited for soldering power-supply boards, heat sinks, shield cases, multilayer boards with micro components PCB SMT assembly production line.
1 of 1

Hakko Products

FX838-13 Soldering Station 230V

Regular price $807.00 SGD
Regular price $814.00 SGD Sale price $807.00 SGD
Sale Make an Enquiry
Shipping calculated at checkout.

Availability: Pre-Order | Lead Time: 8-12 Weeks

Click here to shop compatible soldering tips for FX-838

  • High powered 150W soldering iron with high heat capacity
  • Best suited for soldering of power-supply boards, heat sinks and shield cases
  • Applicable also for multilayer boards with micro components
  • Selectable soldering iron for N2 System as usage at your option

Please refer to the user manual for more tips!

Packing List
Soldering Station FX-838
Soldering Iron FX-8301
Soldering Tip Not Included (T20 Series)
Control Card B2388
Power Cord B2425
Iron Holder (Cleaning Sponge and 599B) FH-200, A1519, 599B-02
Connecting Cable B3253
Heat Resistant Pad B2300
Instruction Manual -

*Soldering tip is not included. The tips (T20 series) of desired shape should be purchased separately. Click here to shop compatible soldering tips for FX-838

Features

High Power 150W Soldering Station for various applications from large to fine components.

  • Great thermal recovery improves the soldering environment.
  • It allows soldering at lower set temperatures.
  • It can shorten the soldering working time, which minimize concern about the influence of heat on components and tip life.
  • It is suitable not only for high-power required working condition such as soldering multilayer boards or shield cases but also for microsoldering.

Operate at maximum temperature of 500 degrees
Soldering power-supply boards easily with the 150W high power hand piece.

High power with low voltage safety design
This unit has not only high power but also low output voltage (27V) , which is lower than the world safety output voltage of 30V.

Easy to replace tips
Simply loosen the nipple slightly, remove the tip, insert a new tip and tighten the nipple.

Cartridge style integrated heater improves thermal conductivity of the tips
The T20 series soldering tips are available in 20 different shape as replacement, some of which are suitable for fine components.

Temperature preset mode saves time and effort
Input three frequently-used temperatures in advance and recall them with one push of a button. It saves the troublesome process of setting condition, tailored to the tip-shape, component and work.

N2 System
Combination of optional handpiece allows use of N2 system.

Combination Example

Name Remarks
HAKKO FX-838 Station
With Control card, Heat resistant pad, Power cord, Connecting cable and Instruction manual.
Iron holder With HAKKO 599B and cleaning sponge
HAKKO FX-8302
 N2 Soldering Iron
T20 Series Tip Select the tip appropriate for work.
Nozzle Assembly
Select the nozzle assembly applicable to the tip.
N2 Generator With Racks for Station Air tube Outer diameter: 6mm It can be placed perpendicularly or horizontally.
HAKKO FX-791
 N2 Flow Meter
The others * The others are not provided by HAKKO
Specification

Model No. FX-838

  • Power consumption: 158W
  • Temperature range: 200 to 500ºC
  • Temperature stability: ±5ºC at idle temperature

Station

  • Output voltage: AC 27V
  • Dimensions: 110(W)×110(H)×205(D)mm
  • Weight: 3.2kg

Soldering Iron

  • Power consumption: 150W (27V)
  • Tip to ground resistance: <2Ω
  • Tip to ground potential: <2mV
  • Heating element: Ceramic heater
  • Cord length: 1.2m
  • Total length: 175mm (with 2.4D tip)
  • Weight: 31g (with 2.4D tip)

* Total length and weight (w/o cord)

Accessories

For the HAKKO FX-838, soldering iron tips are not supplied as accessories. Please separately purchase "T20 Series" soldering iron tips.

Soldering Tip

 T20 Series
Shape BCM/CM
  • T20-BCM2
  • T20-BCM3
Shape BC/C
  • T20-BC2
  • T20-BC3
  • T20-BC4
  • T20-BCF2
  • T20-BCF3
  • T20-BCF4
  • T20-C5
  • T20-C6
Shape B
  • T20-B2
  • T20-BL
  • T20-BL2
  • T20-BL3
Shape D
  • T20-D16
  • T20-D24
  • T20-D32
  • T20-D6
Shape J
  • T20-J02
Shape K
  • T20-K
  • T20-KU
Shape Concave
  • T20-1610
  • T20-1611
Parts

Replacement Parts

Part No.

Product Name

599B-02

HAKKO 599B tip cleaner

FH200-02

Iron holder (cleaning sponge) with power-save function

FX8301-01

Soldering iron FX-8301, 150W (27V)

B3253

Connecting cable

B2388

Control card

B2300

Heat resistant pad

FH200-01

Iron holder (cleaning sponge) with power-save function

A1519

Cleaning sponge (yellow)
* The replacement for A1536.

A1536

Cleaning sponge (green)
* Discontinued. The replacement is "A1519".

B3524

Nipple

599-029

Cleaning wire

Optional Parts

Part No.

Name

FX8302-01

Nitrogen Soldering iron FX-8302, 150W (27V), for N2 soldering
