Hakko Products

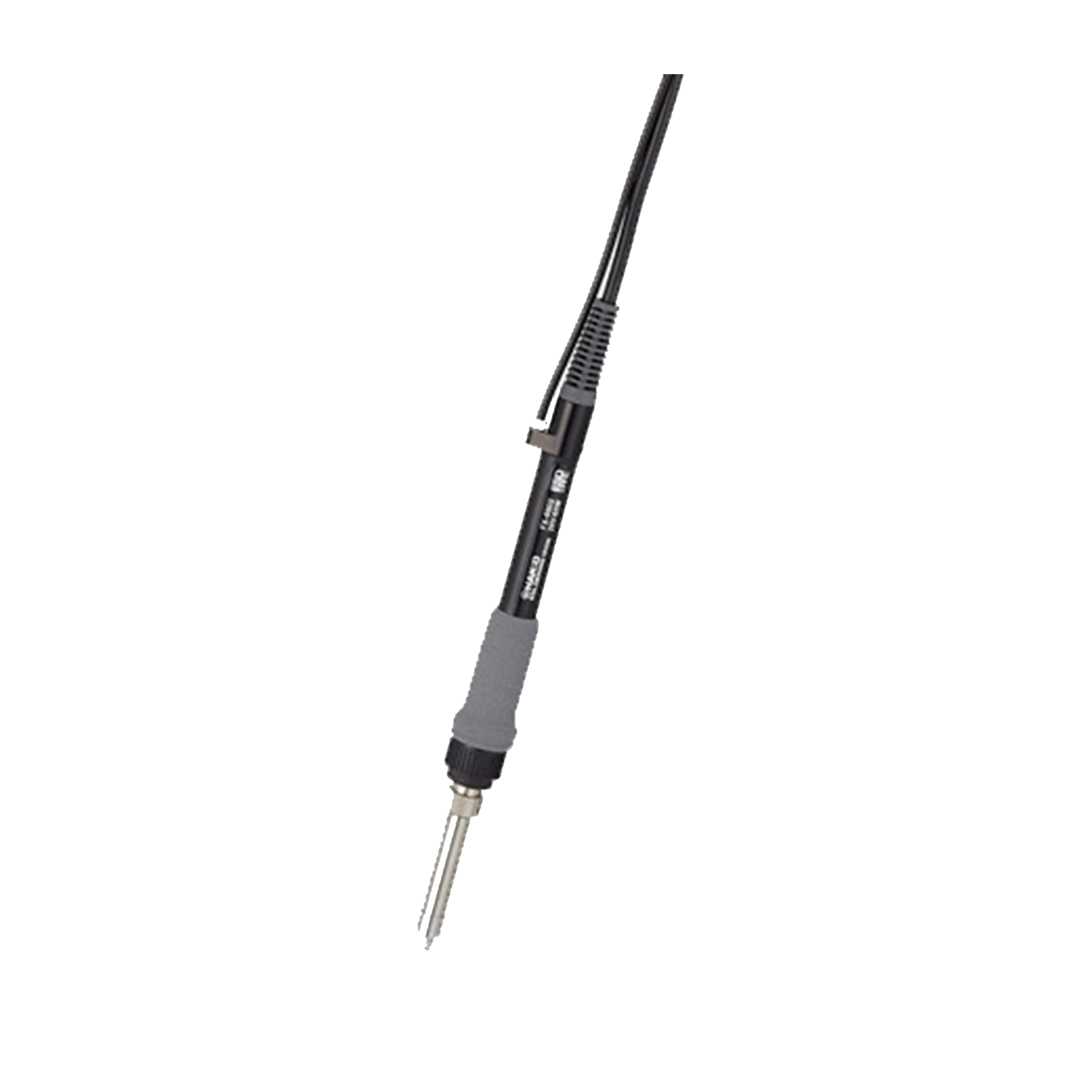

FX-8802 N2 Soldering Iron 230V
Availability: Pre-Order | Lead Time: 8-12 Weeks
Couldn't load pickup availability
Nitrogen (N2) soldering iron designed exclusively for HAKKO FX-888D, FX-889, FR-701 and FR-702
Please refer to the User Manual for detailed specifications.
Click here to shop compatible tips for FX-8802 (Sold Separately)
Features
Applicable Models:
Preventing oxidation
The Nitrogen gas (N2) runs into the nozzle assembly and covers the soldering tip. This prevents the soldering tip and the heater from being readily oxidized and aids in preheating.
Improved wettability
A sufficiently hot soldering tip has a more efficient heat transfer, improving the solder wettability and spreadability. Heated N2 gas improves solderability, and prevents components from getting bridges when working even with lead-free solder or high-temperature solder.
Preheating effect
N2 gas assists soldering iron to heat the objects effectively. It contributes to work at lower setting temperature without spoiling work efficiency.
Specifications
- Packing List: N2 soldering iron, Soldering tip (T18 Shape B), Nozzle assembly A, Shield plate, Instruction manual
- Please note: This unit does not include neither a soldering tip nor a nozzle assembly. When purchasing this unit, please purchase your desired soldering tip and nozzle assembly separately.
- Please Note: This soldering iron cannot be used alone. It requires the N2 system.
- Power consumption: 65W (26V)
- Temperature range: 50 to 480ºC
- Tip to ground resistance: <2Ω
- Tip to ground potential: <2mV
- Heating element: Ceramic heater
- Standard tip: Shape-B (No.T18-B)
- Cord length: 1.2m
- Total length: 190mm (with B tip), excludes cord and tube
- Weight: 59g (with B tip and nozzle assembly A), excludes cord and tube
- *Do not set the temperature over 450ºC.
Accessories
Nitrogen (N2) System
| Part Number | Product Name |
| FX-780, FX-781 | N2 Generator |
| FX-791 | N2 Flow Meter |
Please note that you'll need both the tip AND its compatible nozzle assembly for the soldering iron to function (Shape + Assembly Unit).
| Shape BC/C | Assembly Unit |
| T18-C2 Shape-2C | B3662 Nozzle assembly A |
| T18-C3 Shape-3C | B3663 Nozzle assembly B |
| T18-C05 Shape-0.5C, T18-C1 Shape-1C |
B3664 Nozzle assembly C |
| T18-CF2 Shape-2C | B3662 Nozzle assembly A, Tinned cut surface only |
| T18-CF3 Shape-3C | B3663 Nozzle assembly B, Tinned cut surface only |
| T18-CF1 Shape-1C | B3664 Nozzle assembly C, Tinned cut surface only |
| Shape B | Assembly Unit |
| 18-B Shape-B | B3662 Nozzle assembly A |
| Shape D | Assembly Unit |
| T18-D08 Shape-0.8D, T18-D12 Shape-1.2D |
B3662 Nozzle assembly A |
| T18-D16 Shape-1.6D, T18-D24 Shape-2.4D |
B3663 Nozzle assembly B |
| Shape I | Assembly Unit |
| T18-I Shape-I | B3664 Nozzle assembly C |
| Shape K | Assembly Unit |
| T18-K Shape-K | B3665 Nozzle assembly D |
Replacement Parts
| Part Number | Product Name |
| B2676 | Nipple |
| B2028 | Terminal Board with cord stopper |
| B2032 | Grounding spring |
Optional Parts
| Part Number | Product Name |
| FH800-03BY | Iron holder with cleaning sponge and wire |
