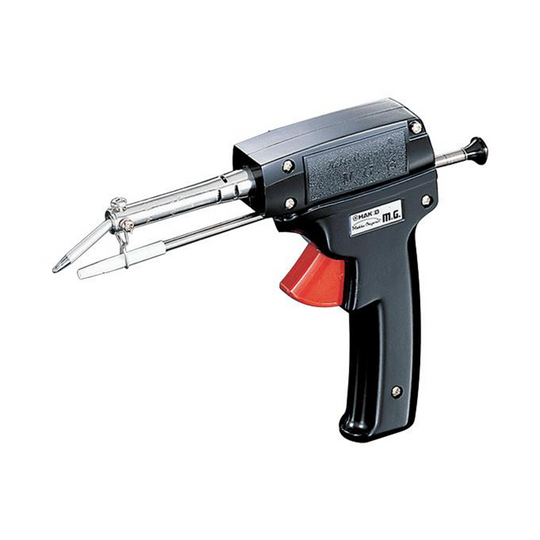

585GP-V23 Soldering Gun 230V

• Soldering iron with manual solder feed (gun type) that can work without a temperature control unit to permit one-handed operation
• Light-weight body allows extended soldering work without unnecessary fatigue
• Built-in solder feed mechanism in the body allows users to make fine adjustments
• Soldering tip: 585-T-6 Shape-B

Packing List

Features

The amount of solder wire feed is adjustable with a range of approximately 3mm (min.) to 8mm (max.).
The amount of solder wire feed can be adjusted only by loosening or tightening the screw mounted on the solder feed adjuster.

Specification

• Power consumption: 60W
• Heating element: Nichrome heater
• Standard tip: Φ6 mm (No 585-T-6)
• Dimensions: 213 x 149 mm
• Weight: 290g

Soldering Tip

• 585-T-6 Shape-B

Accessories

Iron Holder: 607 (with cleaning sponge)

Heating Element:

• 585-H: 100V (not available in SEA)
• 585-H-V11: 110V (not available in SEA)
• 585-H-V22: 220V (not available in SEA)
• 585-H-V23: 230V

Guide Nozzle:

• 582-N-2.3 (2.3mm)
• 582-N-1.6 (1.6mm)
• 582-N-1.2 (1.2mm)
• 582-N-1.0 (1.0mm)
• 582-N-0.8 (0.8mm)
