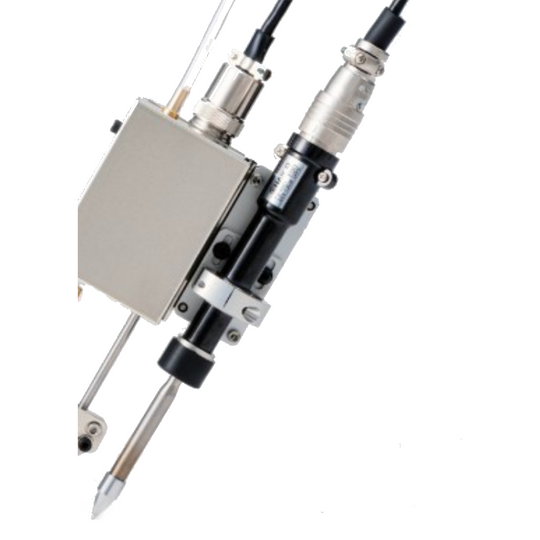

FU6001-01X Straight Iron 230V
Availability: Pre-Order | Lead Time: 16 - 24 Weeks
Couldn't load pickup availability
[This is a pre-order product and will take 6-8 weeks to arrive. Kindly view pre-order FAQs before purchasing.]
Soldering Iron for FU-500, FU-600 Auto Soldering Unit.
FU-6001 is straight, and FU-6002 is L-Shaped Soldering Iron.
Specifications
- Power consumption: 260W (29V)
- Tip to ground resistance: ＜2Ω
- Tip to ground potential: ＜2mV
- Cord length: 5m
- Total length: 194mm (straight type, with 4XD tip), 168mm (L type, with 4XD tip)
- Weight: 132g (with 4XD tip), 171g (with 4XD tip and iron unit fixing assembly), 134g (with 4XD tip), 173g (with 4XD tip and iron unit fixing assembly)
Accessories
Soldering Tips
For HAKKO FU-601, soldering tips are not supplied as accessories. Please purchase soldering tips separately. Adapter assembly and Nozzle assembly are required to perform N2 soldering.
TX1 Series Tips
TX2 Series Tips
Replacement Parts
| Part Number | Product Name |
| CX1010 | Feeder unit L type, for Φ0.3 to 1.6 mm |
| CX5006 | Feeder unit straight type, for Φ0.3 to 1.6 mm |
| FU6001-01X | Soldering iron FU-6001 (straight) |
| FU6002-01X | Soldering iron FU-6002 (L-shaped) |
| CX5017 | Tip adjustment jig unit for soldering tip TX1 series |
| CX5018 | Tip adjustment jig unit for soldering tip TX2 series |
| BX1056 | Connecting cable for between FU-500 and FU-601 |
| BX1000 - BX1006 | Solder feed pulley unit. Various sizes (Φ 0.3mm - 1.6mm) |
| BX1007 - BX 1009 | Solder feed guide set. Various sizes (Φ 0.3mm - 1.6mm) |
| BX1010 - BX1015 | Fluoroplastic/Teflon tube (qty 10). Various sizes (Φ 0.3mm - 1.6mm) |
| BX1016 - BX1017 | Tube unit 1180 L. Various sizes (Φ 0.3mm - 1.6mm) |
| BX1038 - BX1039 | Fluoroplastic tube 1180 L. Various sizes (Φ 0.3mm - 1.6mm) |
| BX1041 - BX1042 | Tube unit 780 L. Various sizes (Φ 0.3mm - 1.6mm) |
| BX1060 - BX1061 | Fluoroplastic tube 780 L. Various sizes (Φ 0.3mm - 1.6mm) |
| BX1018 | Guide Tube |
| BX1019 - BX1021 | Guide Pipe. Various sizes (Φ 0.3mm - 1.6mm) |
| BX1022 | Grommet |
| BX1027 | Flux Protector |
Optional Parts
| Part Number | Product Name |
| BX1023 | N2 adapter assembly for TX1 |
| BX1024 | Nozzle assembly A for TX1 |
| BX1025 | Nozzle assembly B for TX1 |
| BX1026 | Nozzle assembly C for TX1 |
| BX1029 | N2 adapter assembly A for TX2 |
| BX1030 | Nozzle assembly D for TX2 |
| BX1031 | Nozzle assembly E for TX2 |
| BX1065 | Nozzle assembly F for TX2 |
| BX1032 | Iron Cable 3m for FU-600, FU-601 |
| BX1033 | Iron Cable 5m for FU-601 |
| BX1034 | Iron Cable 8m for FU-601 |
| BX1035 | Feeder Cable 3m for FU-500 |
| BX1036 | Feeder Cable 5m for FU-500 |
| BX1037 | Feeder Cable 8m for FU-500 |
| CX1000 | Slide Unit |
| CX1001 | Slide Unit for Drag Soldering |
| BX1043 | Spring Post for CX1000 or CX1001 |
| BX1044 | Tension Spring for CX1000 or CX1001 |
| CX1002 | Temperature Probe |
| CX1003 | Tip Cleaner |
| A1567 | Cleaning Brush B (Metal Brush, qty 2) |
| BX1028 | Solder Scatterproof Sheet for CX1003 |
