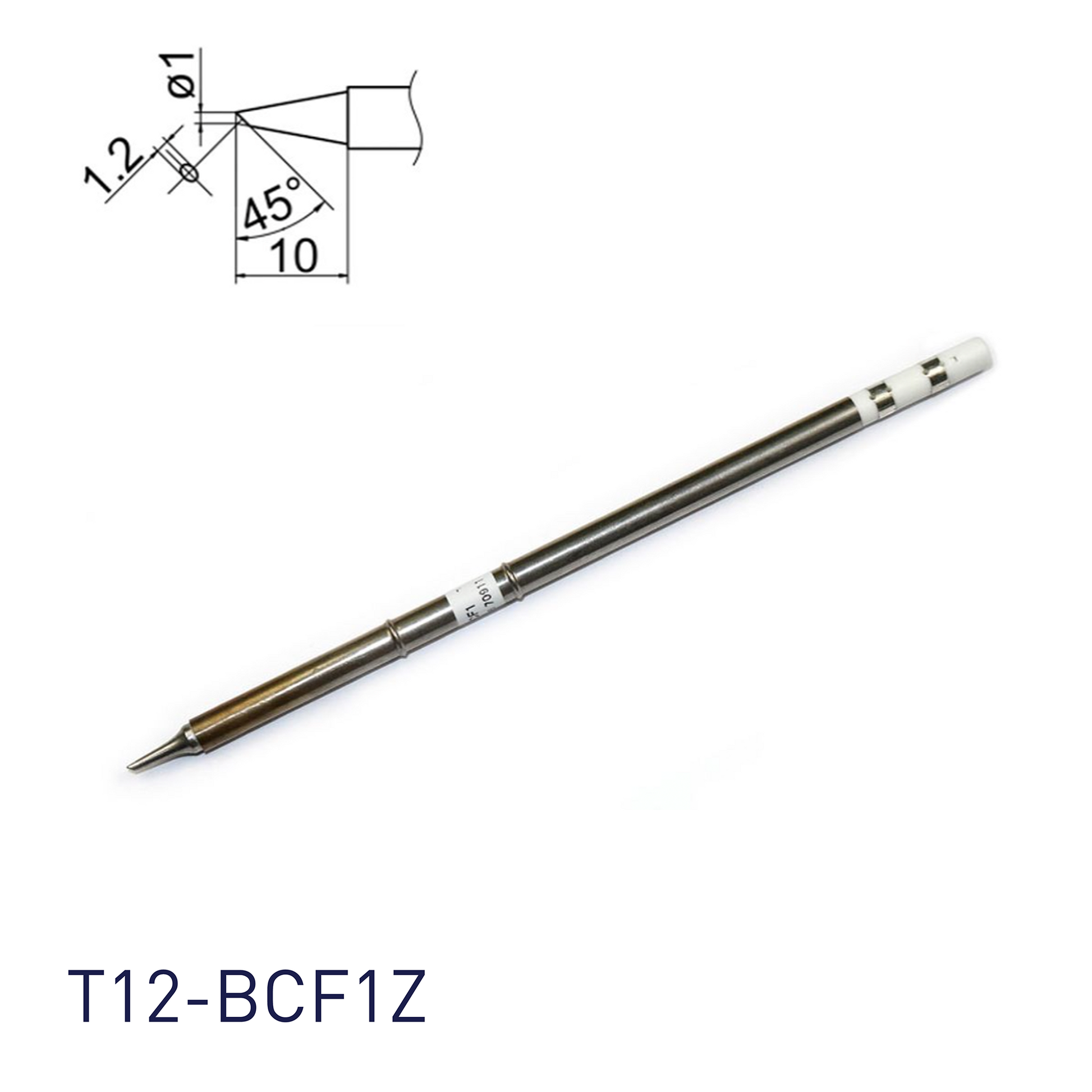

T12-BCF1Z Shape 1BC(Z). Tinned cut surface only, long life type
- 1 mm tip, 10 mm length
- 45 degree slant
- This type has a shape like a cone or column cut at a slant, which allows users to select the cut surface size depending on the workpiece.
- It is used for drag soldering and pre-tinning of lead wires.
| Applicable Model | Handpieces |
| FM-203 | FM-2027 |
| FM-204 | FM-2027 |
| FM-206 | FM-2027 |
| FX-951 | FM-2028 |
| FX-952 | FM-2028 |
| FM-202 (Discontinued) | FM-2027 |
| FM-950 (Discontinued) | FM-2028 |
