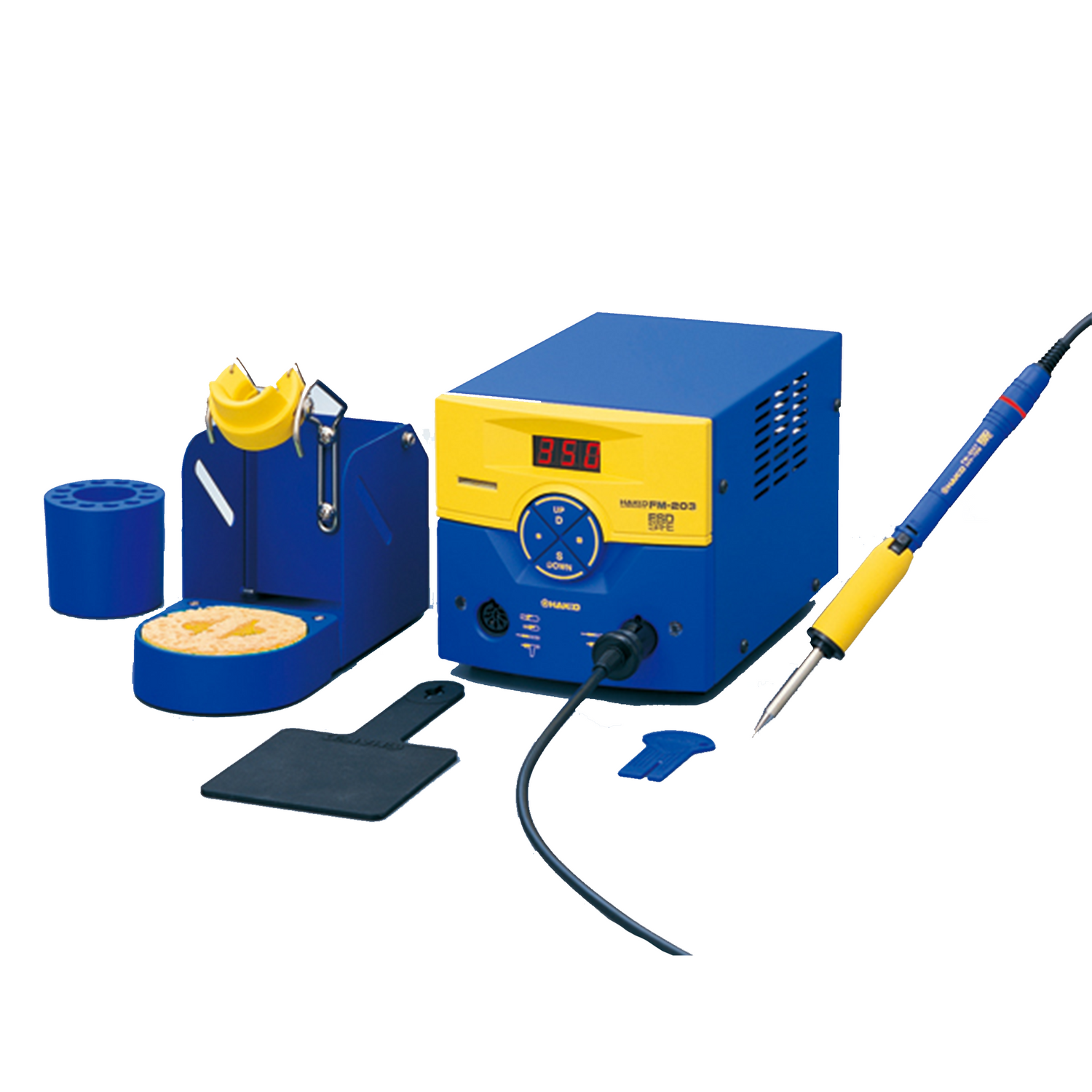

  • Hakko FM203 dual-port BGA SMD Soldering Desoldering Rework station machine with soldering iron compatible for T12 series tip
1 of 1

Hakko Products

FM203-14 Rework Station 230V

Regular price $1,020.00 SGD
Regular price Sale price $1,020.00 SGD
Sale Make an Enquiry
Shipping calculated at checkout.

Availability: Pre-Order | Lead Time: 8-12 Weeks

Click here to shop compatible tips for FM-203

  • Multi-station that enables soldering, desoldering, and SMD rework all with a single unit
  • Selectable soldering iron for N2 system or micro soldering as usage at your option

Please refer to the User Manual for detailed specifications.

Features

A single station plays multiple roles: Soldering, desoldering, and SMD rework

Two handpieces can be selected in various combinations *This station is equipped with one HAKKO FM-2027 handpiece.

A wide range of handpiece selection · Figures of connectable handpieces are shown on the connectors as well as the indications of "Channel D" and "Channel S".

Simultaneous use

Channel D

Channel S

Yes



HAKKO FM-2027 Soldering iron

HAKKO FM-2027 Soldering iron



HAKKO FM-2024(*1) Desoldering tool



HAKKO FM-2026(*2) N2 soldering iron



HAKKO FM-2032 Micro soldering iron

No
Either one of handpieces operates



HAKKO FM-2022 Rework tool (direct heat-type)

No
Either one of handpieces operates



HAKKO FM-2023 Rework tool (direct heat-type)

No
Either one of handpieces operates



HAKKO FM-2030 Heavy duty soldering iron

No
Either one of handpieces operates



HAKKO FM-2031 N2 heavy duty soldering iron

Yes



HAKKO FM-2024(*1) Desoldering tool

Yes



HAKKO FM-2026(*2) N2 soldering iron

Yes



HAKKO FM-2032 Micro soldering iron

 *1 For HAKKO FM-2024, each handpiece needs a desoldering control box and compressor.

*2 For HAKKO FM-2026, each handpiece needs an N2 generator (HAKKO FX-780), flowmeter (HAKKO FX-791), compressor, regulator, etc. For further details, refer to the combination examples.

Powerful thermal recovery performance

See how much its thermal recovery is improved by using a composite tip

Packing List
  1. HAKKO FM-203 Station
  2. Soldering iron(HAKKO FM-2027)
  3. Control card
  4. Heat resistant pad
  5. Iron holder(No. FH200-01: with HAKKO 599B tip cleaner)
  6. Tip tray
  7. Power cord
  8. Connecting cable
  9. Instruction manual: 1 for each
Specifications

Model No. FM-203

Power consumption: 140W

Temperature range:

  • FM-2026/2027:200 to 450ºC
  • FM-2022/2023: 200 to 400ºC
  • FM-2024: 350 to 450ºC
  • FM-2032: 200 to 450ºC
  • Temperature stability: ±5ºC at idle temperature

Station

  • Output voltage: AC 24V
  • Dimensions: 120(W) × 120(H) × 190(D) mm
  • Weight: 2.7kg

Soldering Iron

  • Power consumption: 70W (24V)
  • Tip to ground resistance: <2Ω
  • Tip to ground potential: <2mV
  • Heating element: Composite heater
  • Cord length: 1.2m
  • Total length: 188mm (with 2.4D tip)
  • Weight: 30g (with 2.4D tip)

* Total length and weight (w/o cord)

Accessories

Soldering Tip

For the HAKKO FM-203, soldering iron tips are not supplied as accessories. Please purchase soldering iron tips.

 T12 Series
Shape BCM/CM
  • T12-BCM2
  • T12-BCM3
Shape BC/C
  • T12-BC1
  • T12-BC1Z
  • T12-BC2
  • T12-BC2Z
  • T12-BC3
  • T12-BC3Z
  • T12-BCF1
  • T12-BCF1Z
  • T12-BCF2
  • T12-BCF2Z
  • T12-BCF3
  • T12-BCF3Z
  • T12-C08
  • T12-C1
  • T12-C4
  • T12-C4Z
  • T12-CF4
  • T12-CF4Z
Shape B
  • T12-B
  • T12-B2
  • T12-B2Z
  • T12-B3
  • T12-B4
  • T12-BL
  • T12-BZ
  • T12-WB2
Shape D
  • T12-D08
  • T12-D12
  • T12-D12Z
  • T12-D16
  • T12-D16Z
  • T12-D24
  • T12-D24Z
  • T12-D4
  • T12-D4Z
  • T12-D52
  • T12-DL08
  • T12-DL12
  • T12-DL32
  • T12-DL52
  • T12-WD08
  • T12-WD12
  • T12-WD16
  • T12-WD52
Shape I
  • T12-I
  • T12-IL
  • T12-ILS
  • T12-WI
Shape K
  • T12-K
  • T12-KF
  • T12-KFZ
  • T12-KL
  • T12-KR
  • T12-KRZ
  • T12-KU
SMD QUAD
  • T12-1201
  • T12-1202
  • T12-1203
  • T12-1204
  • T12-1205
  • T12-1206
  • T12-1207
  • T12-1208
  • T12-1209
SMD TUNNEL
  • T12-1001
  • T12-1002
  • T12-1003
  • T12-1004
  • T12-1005
  • T12-1006
  • T12-1007
  • T12-1008
  • T12-1009
  • T12-1010
SMD SPATULA
  • T12-1401
  • T12-1402
  • T12-1403
  • T12-1404
  • T12-1405
  • T12-1406
Shape Concave
  • T12-1610
  • T12-1612


Parts

Replacement Parts

Name

Specifications

B3216

Sleeve assembly (yellow)

FM2027-02

Connector assembly

FH200-01

Iron holder <w/ cleaning wire>, with power-save function

B2972

Control card

B3253

Connecting cable

B2300

Heat resistant pad

B2756

Tip tray

B3215

Connector cover for FM-2027


Optional Parts

Part No.

Name

FM2022-04

HAKKO FM-2022 conversion kit

140W (24V),for Japan, Oceania, Asia & Other countries

FM2022-05

HAKKO FM-2022 conversion kit

140W (24V),for North America & EU

FM2023-04

HAKKO FM-2023 conversion kit

140W (24V),w/I tip, for Japan, Oceania, Asia & other countries

FM2023-05

HAKKO FM-2023 conversion kit

140W (24V),w/I tip ,for North America

FM2023-06

HAKKO FM-2023 conversion kit

140W (24V),w/I tip, for EU

FM2024-xx

HAKKO FM-2024 conversion kit

FM2026-03

HAKKO FM-2026, 70W (24V), for N2 soldering

FM2026-04

HAKKO FM-2026 conversion kit

70W (24V), for N2 soldering, for Japan, Oceania, Asia & Other countries

FM2026-06

HAKKO FM-2026 conversion kit

70W (24V), for N2 soldering, for North America & EU

FM2027-01

HAKKO FM-2027 conversion kit 70W (24V), for soldering

FM2027-03

HAKKO FM-2027 conversion kit 70W (24V), for soldering

FM2030-02

HAKKO FM-2030 conversion kit

FM2031-02

HAKKO FM-2031 conversion kit 140W (24V)

FM2032-52

HAKKO FM-2032 conversion kit

B3218

Sleeve assembly blue

B3219

Sleeve assembly green

B3217

Sleeve assembly orange

A1519

Cleaning sponge (yellow)
* The replacement for A1536.

A1536

Cleaning sponge (green)
* Discontinued. The replacement is "A1519".
