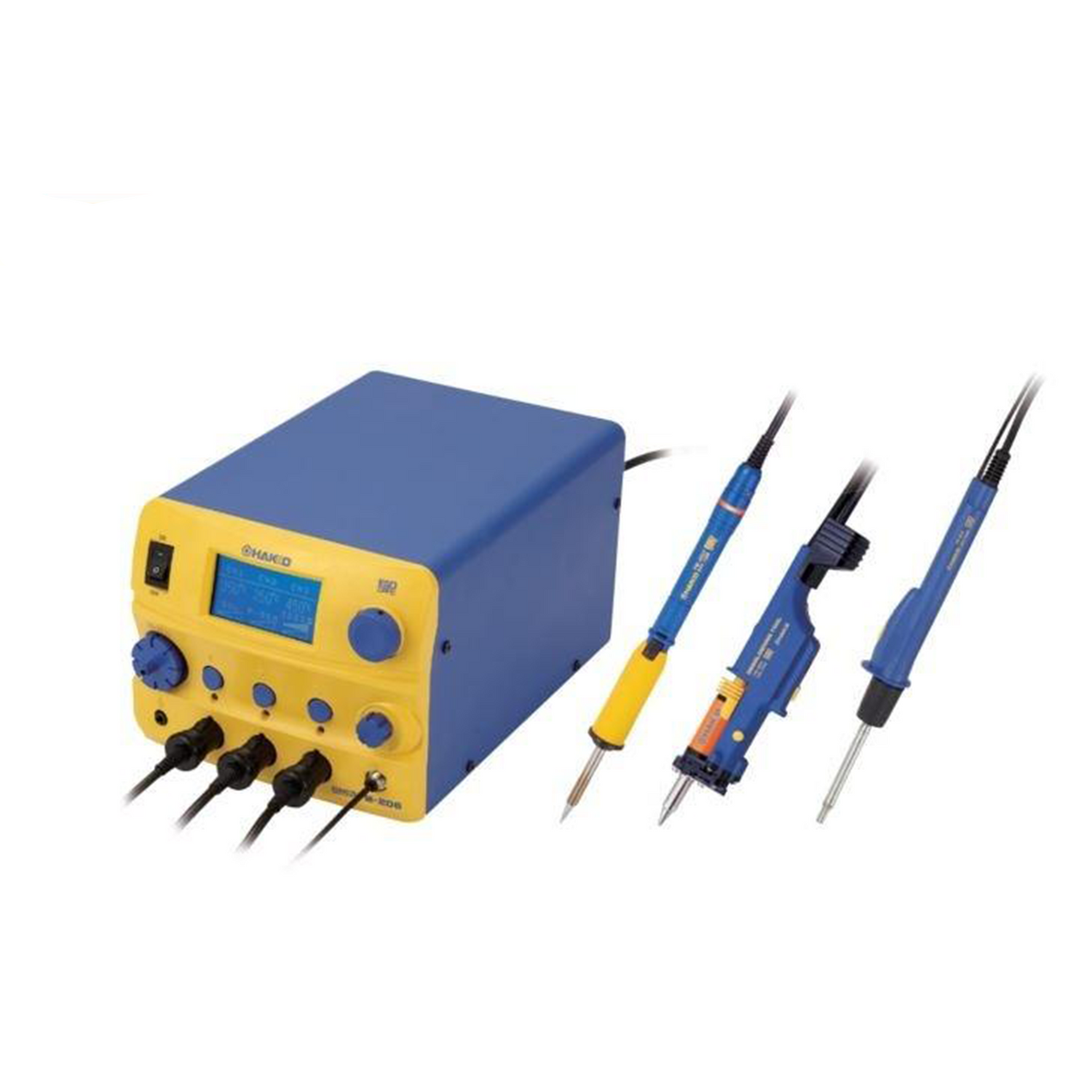

  • Hakko 3-port SMD rework station FM206 soldering iron, hot air tool, desoldering
1 of 1

Hakko Products

FM206-14 Rework Station 230V

Regular price $3,030.00 SGD
Regular price Sale price $3,030.00 SGD
Sale Make an Enquiry
Shipping calculated at checkout.

Availability: Pre-Order | Lead Time: 8-12 Weeks

[This is a pre-order product and will take 6-8 weeks to arrive. Kindly view pre-order FAQs before purchasing.]

  • Hakko 3-port rework station that enables soldering, desoldering, and SMD rework all with a single unit
  • Graphic LCD enables easy viewing and operation
  • Multiple handpiece combination examples

Please refer to the User Manual for detailed specifications.

Click to shop compatible tips and nozzles:
*Soldering Tips/Nozzles not included. To be purchased separately

Tips Nozzles
T12 Series

N1 Series (Desoldering)
N4 Series (Rework)

Packing List
  • *Soldering Tips/Nozzles not included. To be purchased separately
  • Station
  • Power Cord
  • Tip Tray
  • Desoldering Tool (FM-2024)
  • Iron Holder (for FM-2024)
  • Ceramic Paper filter (10 pcs, for FM-2024)
  • Nozzle Remover (for FM-2024)
  • Cleaning drill for heating element (for FM-2024)
  • Connecting cable (for FM-2024)
  • Handpiece (FM-2027)
  • Sleeve Assembly
  • Iron holder (for FM-2027)
  • Heat Resistant Pad (for FM-2027)
  • Connecting cable (for FM-2027)
  • Hot air handpiece (FM-2029)
  • Iron holder (for FM-2029)
  • Heat Resistant Pad (for FM-2029)
  • Connecting cable (for FM-2029)
  • Instruction manual
Features

Combines soldering, desoldering, and rework functions in a compact body.
Features expandability in which the handpiece can be switched as needed for added functions. Comes with hot air-type rework functions and expands the range of repair of SMD parts with hot air handpiece.

FM-2027 lock-type soldering iron
The sleeve of the FM-2027 soldering iron can be locked to secure the tip.

FM-2024
The integrated nozzle containing both heating element and sensor provides higher thermal recovery than conventional tips.

FM-2029
A slender grip ideal for work in narrow spaces. Securely and easily remove 10 x 10 (mm) chips.

Large LCD panel for easy operation
Easy panel reading and easy, stress-free setting changes.

Handpiece Combinations

Receptacle Input

#1 #2 #3
  • FM-2024(*1)
  • FM-2026
  • FM-2027
  • FM-2032
  • FM-2022
  • FM-2023
  • FM-2024(*1)
  • FM-2026
  • FM-2027
  • FM-2030
  • FM-2031
  • FM-2032
  • FM-2024(*1)
  • FM-2026
  • FM-2027
  • FM-2029(*2)
  • FM-2030
  • FM-2031
  • FM-2032

*1 HAKKO FM-2024 can be connected to FM-206 receptacles 1, 2, and 3, but it can only be used with one receptacle at any point.
*2 HAKKO FM-2029 can only be used with FM-206 receptacle 3.

Specifications
Model No. FM-206
Power consumption 410W (Max.)
Temperature range FM-2026/2027:200 to 450ºC
FM-2022/2023:200 to 400ºC
FM-2024:350 to 450ºC
FM-2029:100 to 550ºC
FM-2030:200 to 500ºC
FM-2031:200 to 500ºC
FM-2032:200 to 450ºC
Temperature stability ±5ºC at idle temperature
Station
Output voltage AC 24V
Vacuum generator Vacuum pump, cylinder type
Vacuum pressure 80kPa (600mmHg) (Max.)
Suction flow 14 L/min.
Air flow 6L/min.(Max.)
Dimensions 162(W) × 136(H) × 245(D) mm
Weight 6.2kg
Soldering Iron
Power consumption 70W (24V)
Tip to ground resistance <2Ω
Tip to ground potential <2mV
Heating element Composite heater
Cord length 1.2m
Total length 188mm (with 2.4D tip)
Weight 30g (with 2.4D tip)
Desoldering Tool
Power consumption 70W (24V)
Nozzle to ground resistance <2Ω
Nozzle to ground potential <2mV
Heating element Composite heater
Cord length 1.2m
Total length 180mm (with Φ1.0mm nozzle)
Weight 65g (with Φ1.0mm nozzle)
Handpiece (Hot air) : for FM-206
Power consumption 140W (24V)
Nozzle to ground resistance <2Ω
Nozzle to ground potential <2mV
Heating element Composite heater
Cord length 1.2m
Total length 232mm (with Φ4.0mm nozzle)
Weight 50g (with Φ4.0mm nozzle)

* Total length and weight (w/o cord)
* Total length and weight for handpiece (Hot air) (w/o cord, tube)

Replacement Parts
Part Number Product
FM2022-02 Parallel Remover Handpiece Only (140W/24V)
FM2027-02 Connector Assembly Only
B3216 Yellow Sleeve Assembly
FM2029-02 Hot Air Handpiece Only(140W/24V)
B3253 Connecting Cable
B2300 Heat Resistant Pad
B2756 Tip Tray
C5034 Iron Holder For FM-2029, FT-8003
FH200-03 Iron Holder For FM-2022 (Cleaning Sponge & Power Save Function)
FH200-02 Iron Holder For FM-2027, FM-2028 (Cleaning Sponge & Power Save Function)
FM2024-28 FM-2024 Conversion Kit
FM2027-01 FM-2027 Conversion Kit
FM2027-03 FM-2027 Conversion Kit with FH200-01
FM2029-01 FM-2029 Conversion Kit With Hot Air Handpiece

Optional Parts

Part Number Product
B3217 Orange Sleeve Assembly
B3218 Blue Sleeve Assembly
B3219 Green Sleeve Assembly
599B-02 Wire Tip Cleaner
FM2022-04 FM-2022 Conversion Kit
FM2023-04 FM-2023 Conversion Kit
FM2026-03 FM-2026 for N2 Soldering (70W/24V)
FM2026-04 FM-2026 Conversion Kit (N2 Soldering)
FM2030-02 FM-2030 Conversion Kit (140W/24V)
FM2031-02 FM-2031 Conversion Kit (140W/24V)
FM2032-52 FM-2032 Conversion Kit (48W/24V)
