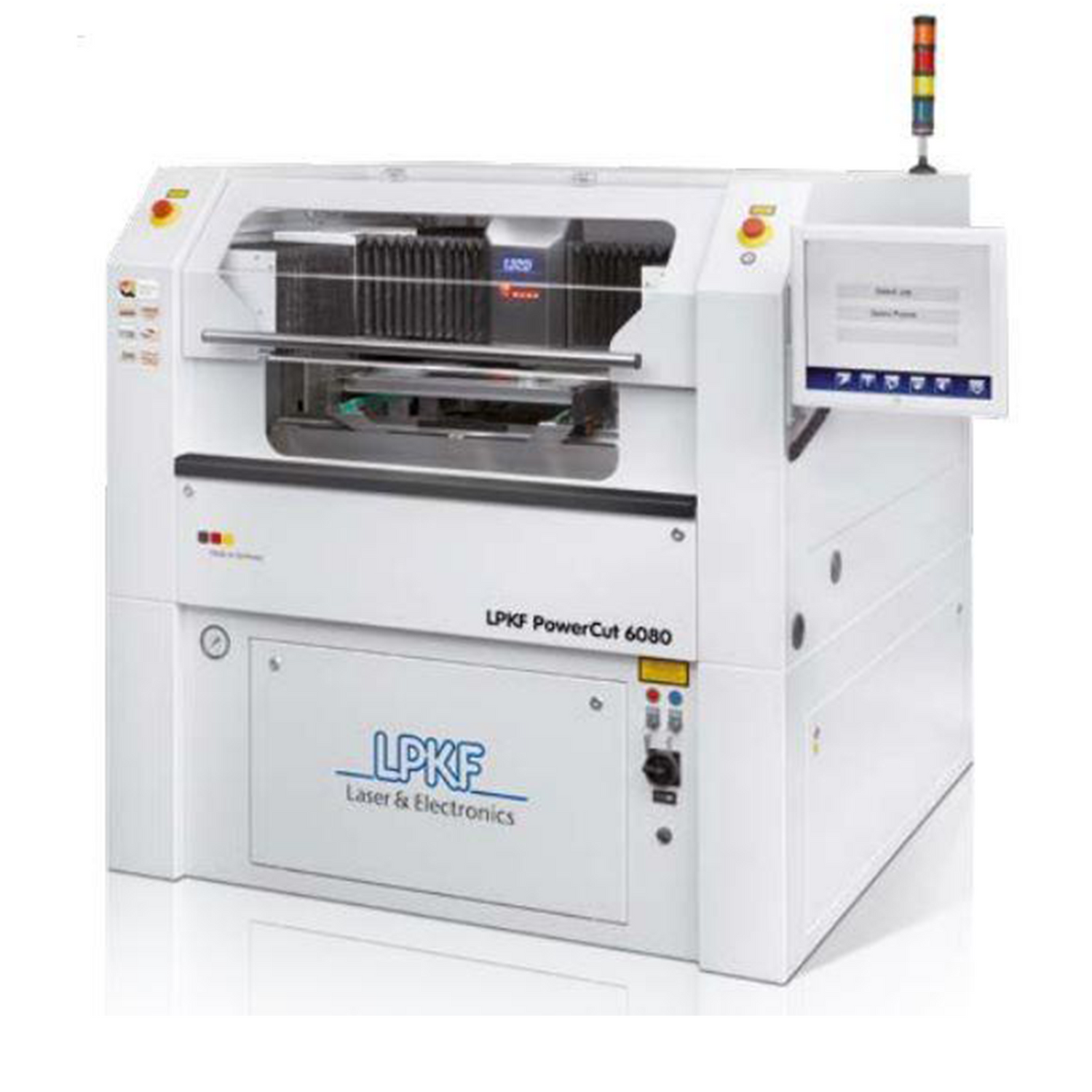

LPKF PowerCut 6080 actual unit - front view

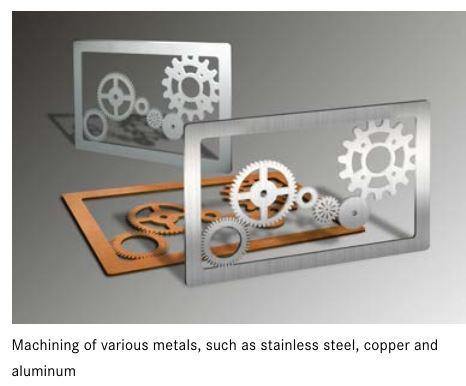

LPKF PowerCut 6080 actual unit - example of cuts in different materials

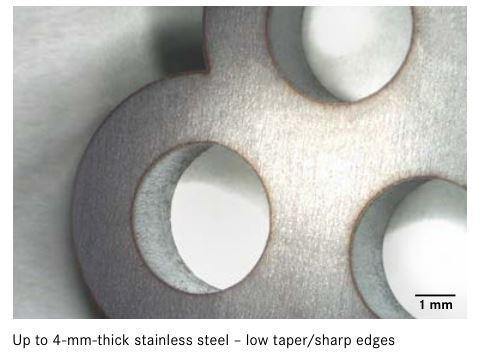

LPKF PowerCut 6080 - zoomed in of cut example of 4mm thick stainless steel

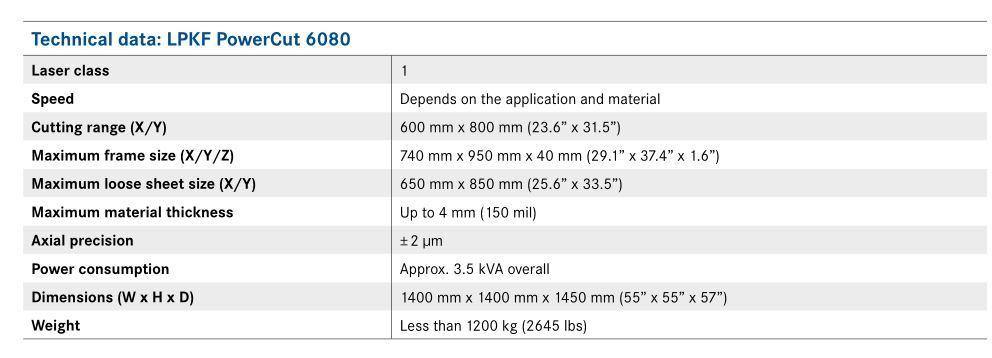

LPKF PowerCut 6080 specifications card
  • Load image into Gallery viewer, LPKF PowerCut 6080 actual unit - front view
  • Load image into Gallery viewer, LPKF PowerCut 6080 actual unit - example of cuts in different materials
  • Load image into Gallery viewer, LPKF PowerCut 6080 - zoomed in of cut example of 4mm thick stainless steel
  • Load image into Gallery viewer, LPKF PowerCut 6080 specifications card

LPKF PowerCut 6080 - Laser Stencil Cutting

Regular price
$0.00
Sale price
$0.00
Regular price
Contact Our Sales Team
Unit price
per
Shipping calculated at checkout.

Click here to contact our sales team

LPKF PowerCut 6080 - Cutting Thick Sheets With Micron Accuracy

LPKF PowerCut offers power and efficiencies for micro machining mechanical parts from metal sheets up to 4 mm (150 mil) in thickness - with an accuracy known from SMT stencil production. Thus, the PowerCut system establishes a class of its own for the production of micro-parts.

It delivers superior precision. This means perfect dimensional accuracy, small radii, optimally sharp edges, smooth and clean surfaces, and steep cutting walls.

Users profit from material savings thanks to the thin cutting channels required by the laser.

If desired, the PowerCut 6080 can also be used to process standard SMT stencils of a thickness greater than 80 µm. 

LPKF PowerCut 6080 is capable of handling a wide range of materials:

  •  Aluminum
  •  Nickel
  •  Tungsten
  •  Molybdenum
  •  Tantalum
  •  Stainless steel
  •  Copper
  •  Al2O3

Please contact us here for a discussion.

We would be glad to hear more about your project!

Download LPKF PowerCut 6080 Brochure
