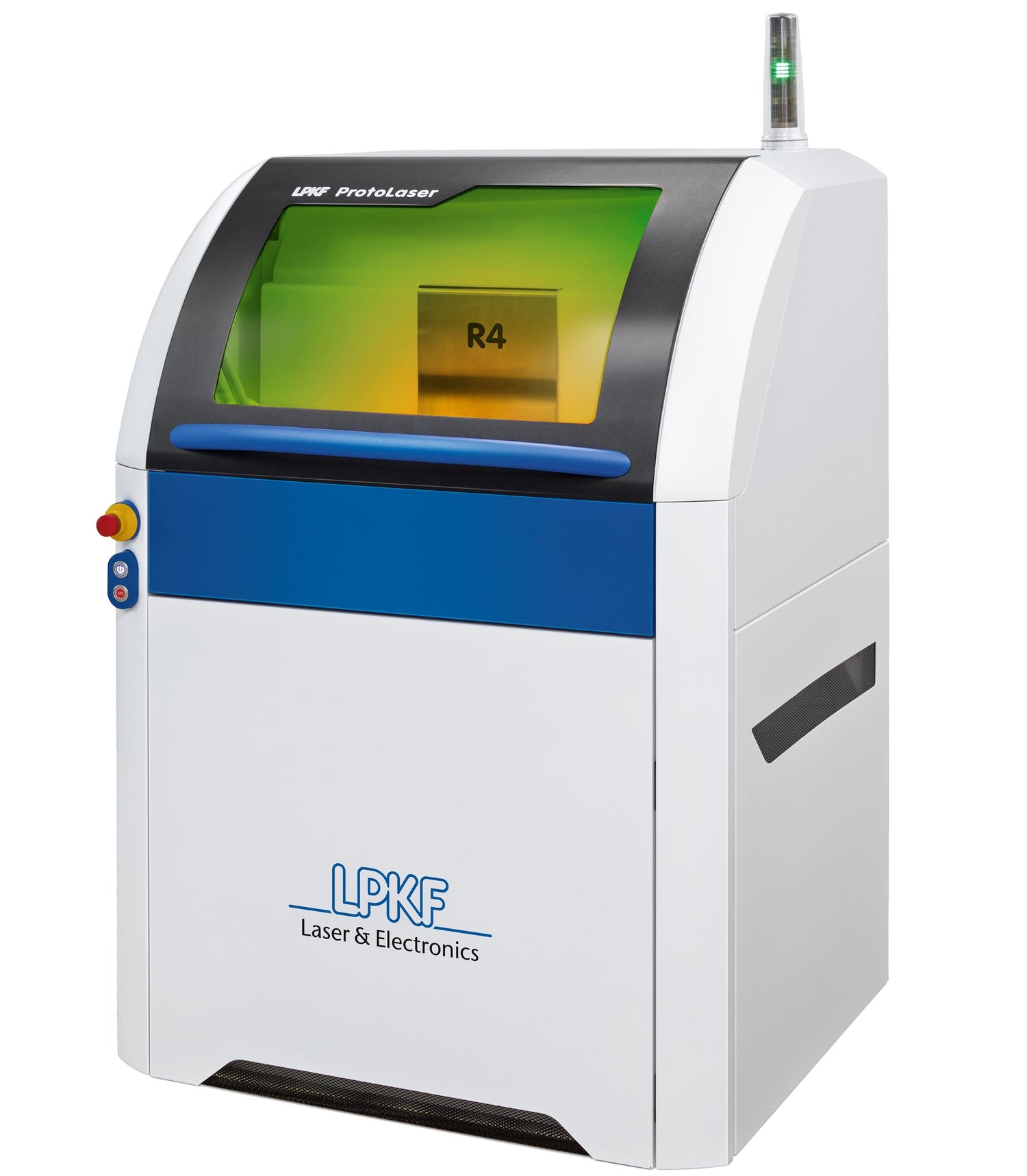

LPKF ProtoLaser R4 - PCB Prototyping Machine

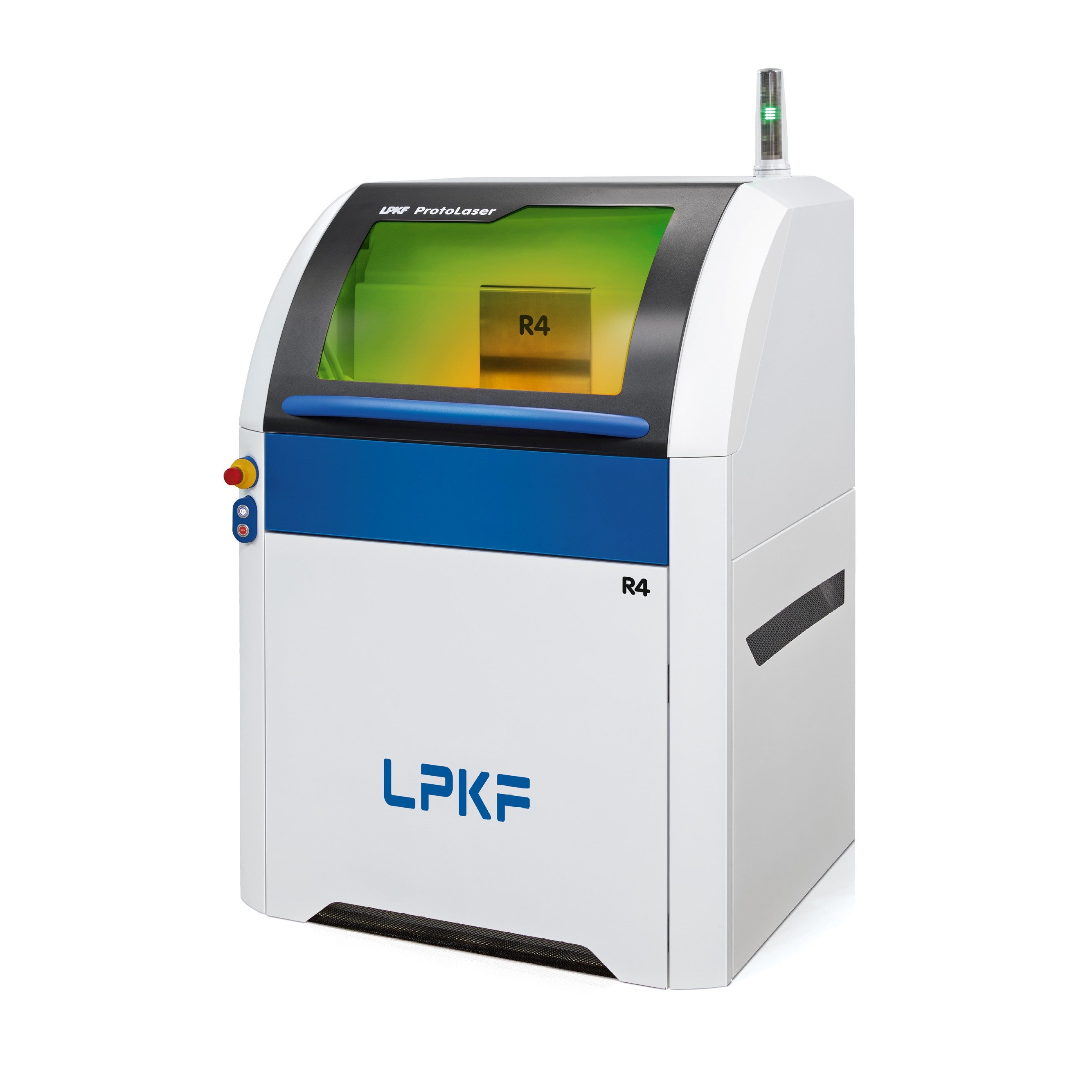

LPKF ProtoLaser R4 - PCB Prototyping Machine

LPKF ProtoLaser R4 - Non Heat Damaging Prototyping

  • Precision picosecond lasers for innovative research
  • Non-damaging processing of heat-sensitive materials
  • Intuitive CAM software
  • Ready-to-use laser class 1 laboratory system
Features and Benefits

Short Laser Pulses – Non-damaging Material Processing

An important parameter in the laser microprocessing of materials is the pulse width. LPKF ProtoLaser R4 with picosecond-fast laser pulses allows for extremely precise structuring of delicate substrates and cutting of hardened or fired technical substrates.

Laser Ablation with Practically No Heat Input

In laser technology, the shorter the laser pulse, the lower the heat input into the surrounding material. With a picosecond laser, an important hurdle is over-come: there is practically no heat transfer; the targeted material evaporates immediately.

Specialist for Micromaterial Processing

This thermal effect is important for both the cutting and the surface processing of temperature-sensitive materials. The laser offers a very high pulse energy for cutting, for example, ceramic materials such as Al2O3 or GaN without discoloring the materials in the machining process. Thanks to the low heat input, no micro-cracks arise in the material.

Perfect Surfaces

Also for surface processing applications such as ablation of transparent thin films or detachment of metal layers on plastic foils, a very stable laser input at a low laser power is required. LPKF ProtoLaser R4 can easily straddle these diverging requirements. Standard FR4 and laminated HF materials can be processed just as well with this machine.

Easy to Operate

The high-precision software and the integrated cam-era are supported by the user-friendly LPKF CircuitPro software. This enables the user to complete projects on challenging materials in the in-house lab in a very short time.


Download LPKF ProtoLaser R4 Brochure
View full details
