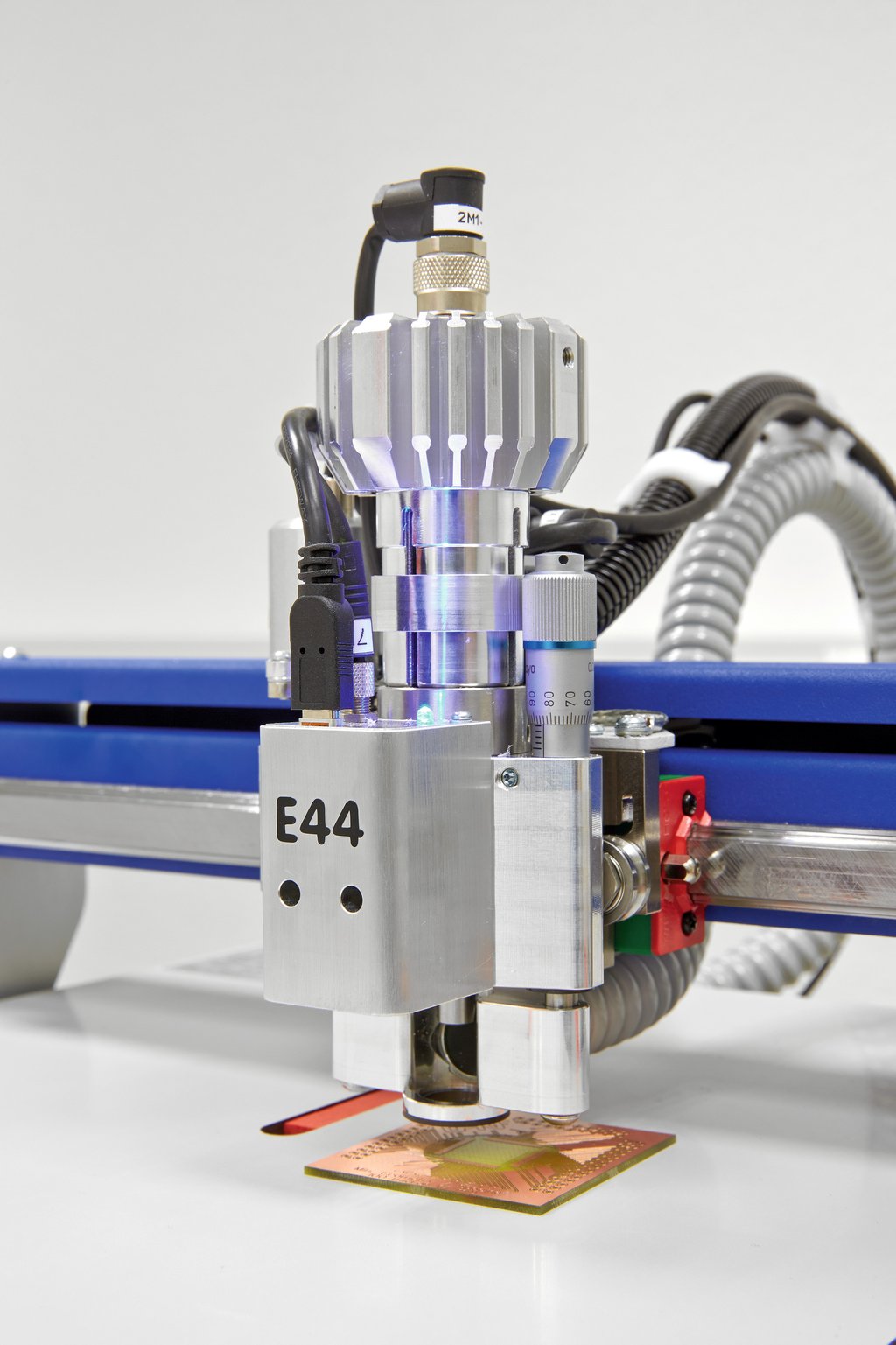

LPKF Protomat E44 - side view

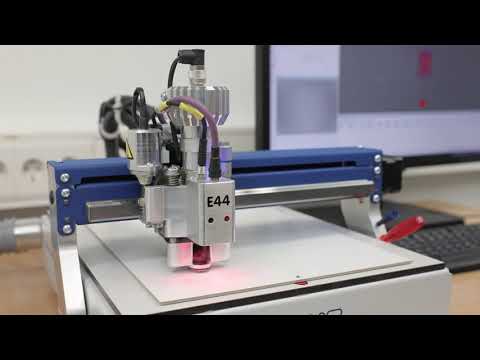

LPKF Protomat E44 - close up
  • Load image into Gallery viewer, LPKF Protomat E44 - side view
  • Load image into Gallery viewer, LPKF Protomat E44 - close up

LPKF Protomat E44 - PCB Prototyping Machine

Regular price
$0.00
Sale price
$0.00
Regular price
Contact Our Sales Team
Unit price
per
Tax included. Shipping calculated at checkout.

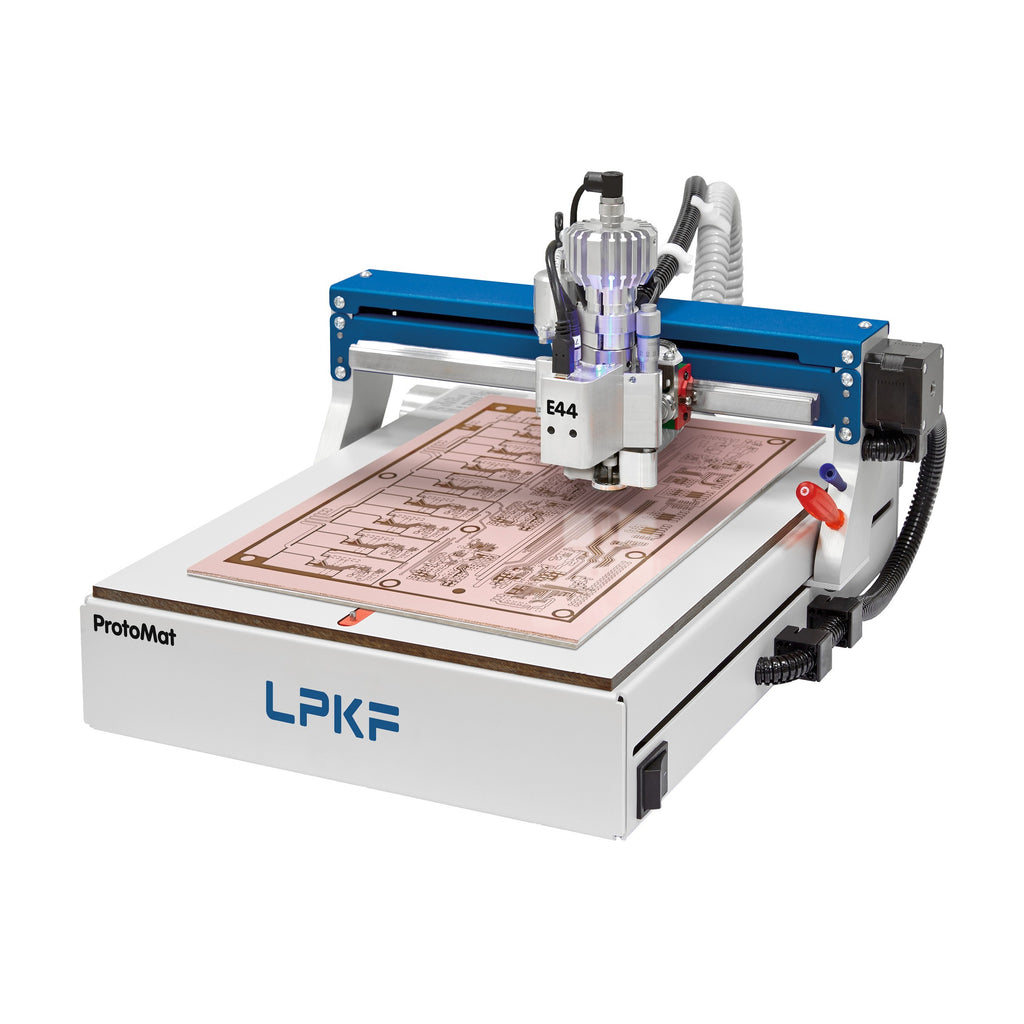

LPKF Protomat E44:

  • LPKF quality at an entry-level rate
  • With powerful CAM software
  • Single and double sided printed circuit boards
  • Ideal for research and training

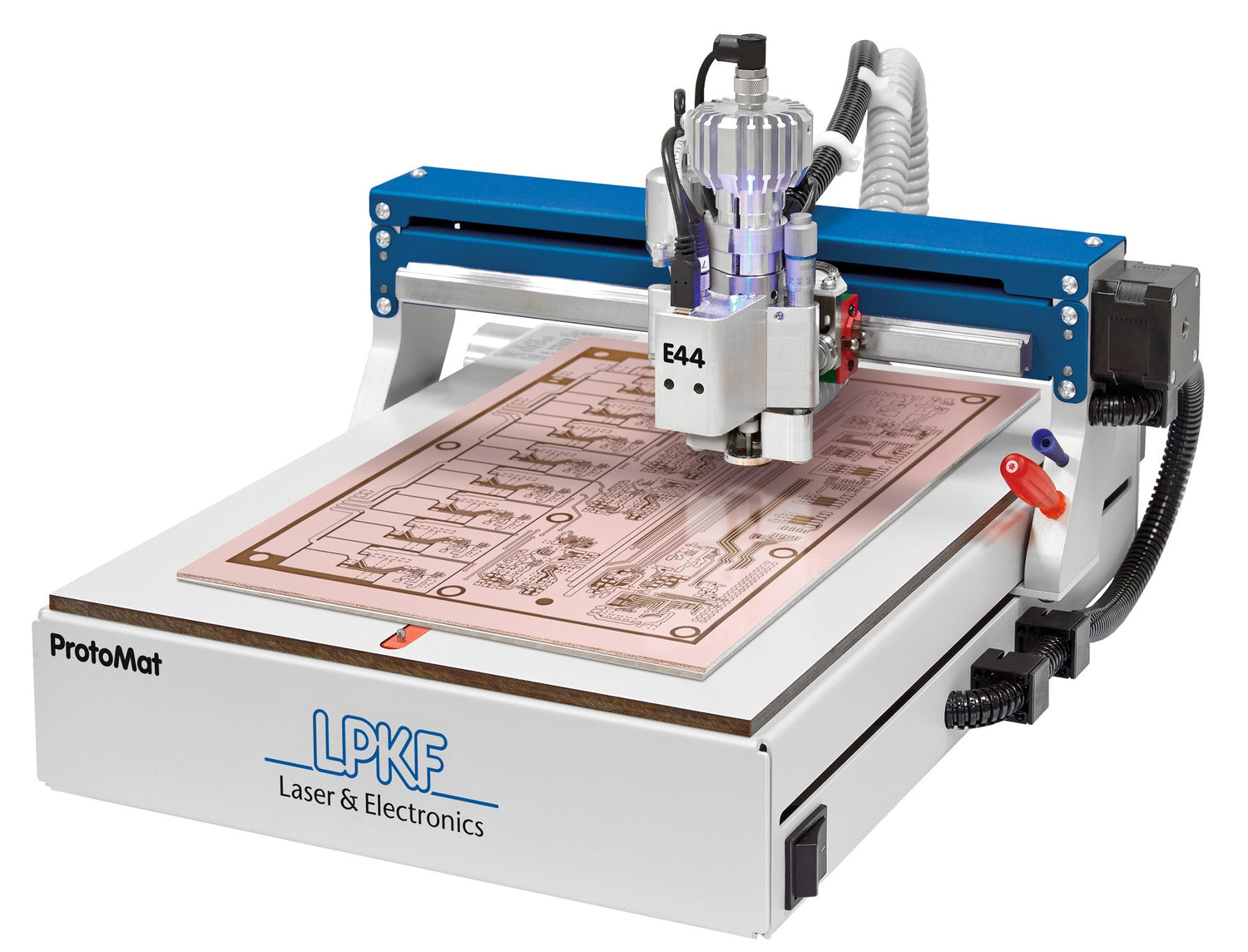

LPKF Protomat E44 milling printed circuit boards (PCB) in electronics lab at entry-level rate, ideal for research and training.

LPKF Protomat E44 - Features and benefits

Safe, Precise and Affordable

LPKF ProtoMat E44 is the cost-effective entry into the world of professional PCB prototyping. The system scores with its particularly simple operation. Protomat E44 has been milling printed circuit boards in education and in the electronics laboratory.

Small and strong

Main application for LPKF Protomat E44 is milling structures in copper-coated circuit board material, drilling through holes or milling individual circuit boards from larger panels. ProtoMat E44 already shows their advantages with smaller quantities or in occasional use: It offers similar precision as the high-speed ProtoMat S-series systems, but is limited to the essentials. LPKF ProtoMat E44 has a spindle with 40,000 rpm. For manual tool change, the system features a collet chuck with precise height adjustment by micrometer screw.

LPKF Circuit Pro CAM Software included

LPKF CircuitPro CAM software facilitates the solution of production requirements. It offers extensive access to all process parameters. A comprehensive parameter library for many common materials supports the operator in his own projects.

Register system and camera

In addition to increased positioning accuracy on double-sided PCBs, the camera's measurement function helps LPKF ProtoMat E44 to set the routing channels more easily. After the measuring process, the machine software guides the user to the optimal setting. Register systems are indispensable for processing double-sided PCBs: they hold the processed PCBs securely in one position, even after turning them over for structuring the second side. With Protomat E44, a camera helps with positioning: It recognizes fiducials or geometric structures and aligns the structuring to them. With a resolution of less than 1 μm, a repeatability of ±5 μm and a precision in the fitting hole system of ±20 μm, the small circuit board plotter more than meets the requirements for single or double-sided circuit boards.

Section

    Please contact us here for a discussion.

    We would be glad to hear more about your project!

    Download LPKF Protomat E44 Brochure
