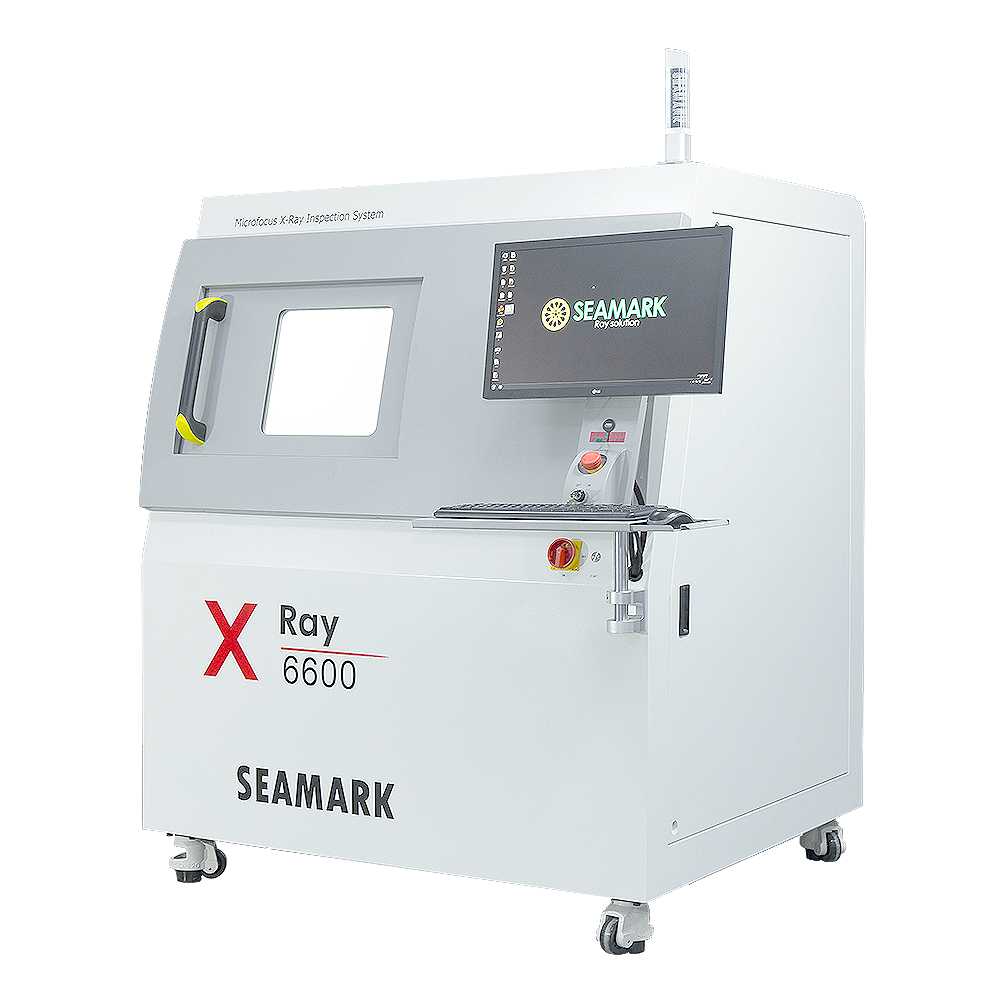

Seamark X6600 Precision Micro-Focus Offline X-RAY Inspection

A general purpose offline precision micro-focus X-ray inspection equipment

Suitable for inspection of various offline factory products with high magnification, multi-angle inspection and large-area inspection platform.

Features
  • General industrial X-ray machine with wide range of applications
  • High resolution image in a short time
  • Infrared automatic navigation and positioning for quick selection of shooting location
  • CNC detection mode, fast automatic detection for multi-point array
  • Oblique multi-angle inspection for easier detection of sample defects
  • Simple and user friendly software operation with low operating costs
  • X-ray tub and FCP can be rotated at the same time (0-60°) to make the detection image more clear and intuitive
Specifications

X-ray Tube

Tube Type Sealed Micro-Focus X-ray Tube
Voltage Range 40 - 90 KV / 40 - 130KV
Electricity Range 10 - 200 uA / 10 - 300 uA
Max Output Power 8W / 39W
Micro Focus Size 5 - 15 um

Flat Panel Detector

Detector Type TFT Industrial Dynamic Flat Panel Detector
Pixel Matrix 1536 x 1536
Field of View 130 x 130 mm
Resolution 5.8 Lp/mm
Frame (1 x 1) 20 fps
AD Conversion Bit 16 bits

Equipment

Dimensions 1360 L x 1240 W x 1700 H mm
Input Power 220V 10A 50-60Hz
Max Sample Size 540 x 440 mm
Operation System Industrial Computer WIN7/10 64Bit
Net Weight 1170kg
Radiation <1uSv/h
Max Tilt Angle 65°
