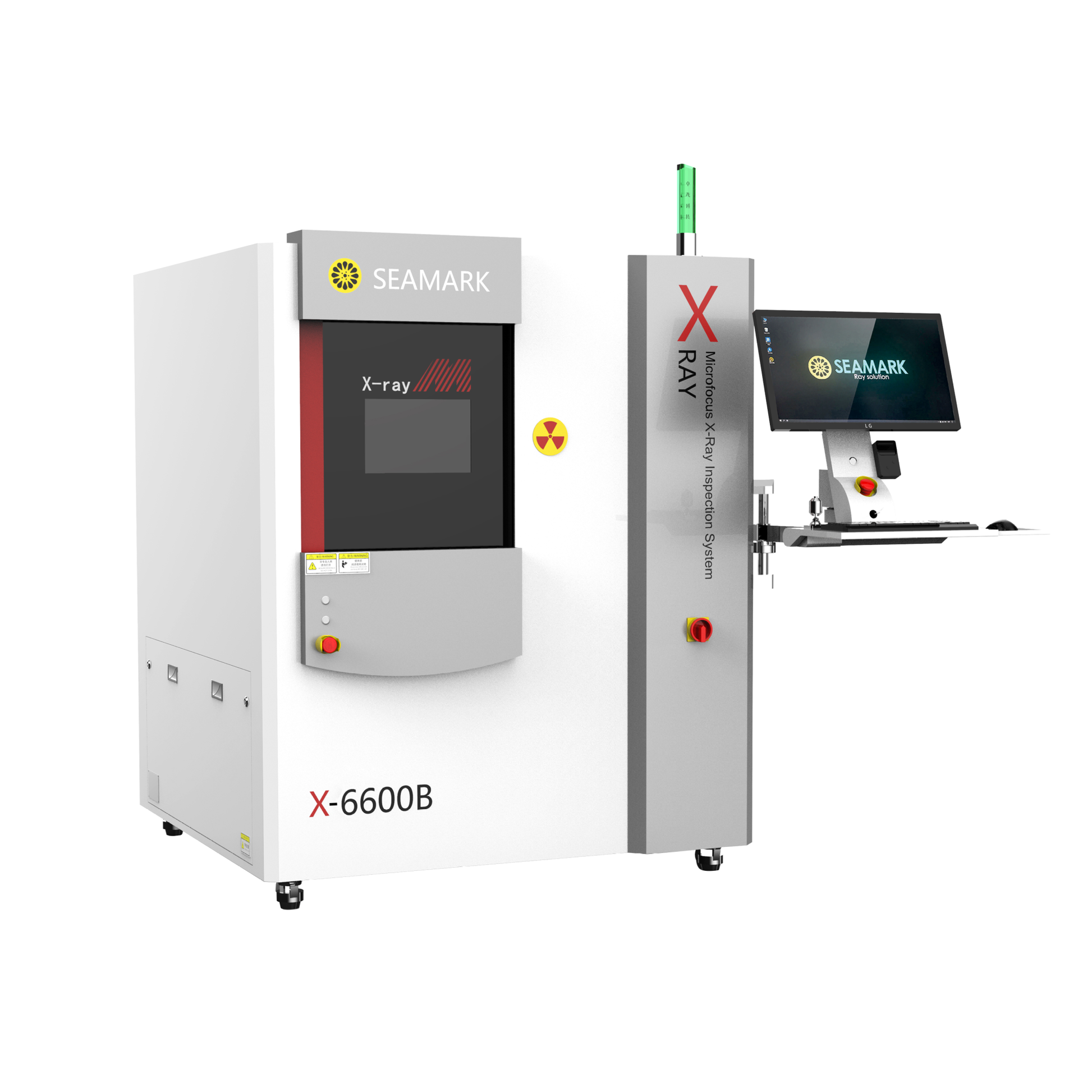

6 axis universal offline precision micro-focus x-ray inspection equipment
High-magnification, multi-angle and large area inspection platform. To ensure safety of the environment and operators, it has a one-button door opening and closing, as well as real-time monitoring of radiation conditions.
Features
- X and Y axis of the platform are driven by high-precision lead screws to ensure inspection accuracy
- Automatic calibration function
- Real-time monitoring of radiation value and multiple protection of operator's personal safety - radiometer will automatically sound an alarm if radiation exceeds set value
- One-button automatic opening and closing of movable door for convenience
- Large inspection platform to ensure a wider range of equipment inspection sizes
- Fingerprint verification for authorisation of device control
- Easy to operate and maneuverable rocker mechanism
- T-axis Tilt Photo Inspection: can be used when conventional vertical inspection does not meet requirements for a more comprehensive inspection range
- CNC Automatic Running Inspection: two modes of free point bit and matrix point bit are supported. After each point bit detection, a picture is automatically saved. Allows saving, modifying and repeating the CNC program.
Specifications
X-ray Tube
| Tube Type | Reflective Sealed Micro-Focus X-ray Tube |
| Voltage Range | X6600M: 40 - 90 KV X6600BM: 40 - 130 KV |
| Electricity Range | X6600M: 10 - 200 uA X6600BM: 10 - 300uA |
| Max Output Power | X6600M: 8 W X6600BM: 39 W |
| Micro Focus Size | 5 - 15 um |
Flat Panel Detector
| Detector Type | IGZO Flat Panel Detector |
| Pixel Matrix | 1648 x 1648 |
| Field of View | 160 x 160 mm |
| Resolution | 5.1 Lp/mm |
| Frame (1 x 1) | 30 fps |
| AD Conversion Bit | 16 bits |
Equipment
| Dimensions | 1380 L x 1390 W x 1930 H mm |
| Input Power | 220V 10A 50-60Hz |
| Max Sample Size | 620 x 620 mm |
| Operation System | Industrial Computer WIN10 64Bit |
| Net Weight | X6600M: 1720kg X6600BM: 1845kg |
